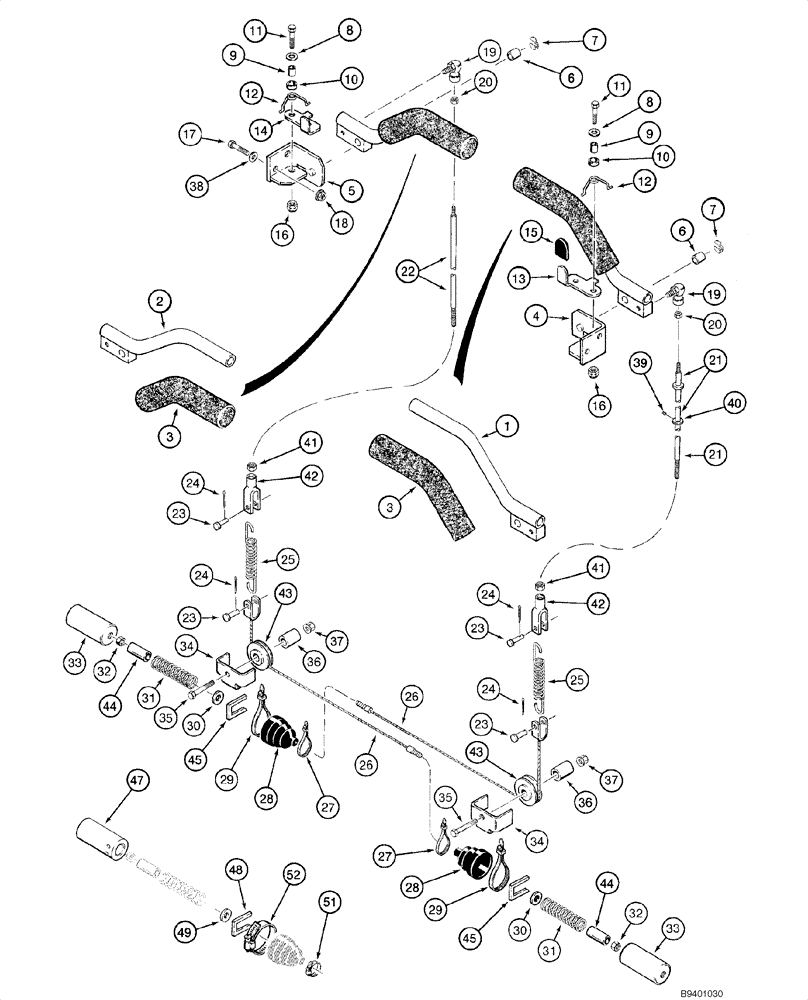

Запчасти Case 1845C (07-03) - PARKING LATCH - SEAT BAR, DUAL, JAF0103652 - (07) - BRAKES

1

H673609

BAR

RH; With Cushion

1шт.

2

H673608

BAR

LH; With Cushion

1шт.

3

H436484

GRIP

2шт.

4

H435879

BRACKET

Mounting; RH

1шт.

5

H435880

BRACKET

Mounting; LH

1шт.

6

H435837

BUSHING,12.7mm ID x 14.45mm OD x 19.05mm L

2шт.

7

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

9

H270777

SPACER

2шт.

10

D44352

BUSHING

2шт.

11

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

12

D134464

SPRING

2шт.

13

D131228

LATCH

RH

1шт.

14

D131229

LATCH

LH

1шт.

15

D134924

HANDLE

2шт.

16

232-4116

NUT,3/8"-16, GC

2шт.

17

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

19

H169920

BALL JOINT

1/4 NF

2шт.

19a

H358374

PIVOT,1/4" - 28 x 1-1/3"

1/4 NF; Heavy Duty

2шт.

20

425-114

NUT,1/4"-28, G5

2шт.

21

120880A1

ROD

RH

1шт.

22

120239A1

ROD

LH

1шт.

23

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

4шт.

24

432-68

COTTER PIN,3/32" x 1/2"

4шт.

25

D127347

SPRING

2шт.

26

H438178

CABLE

Lower

2шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Service with 214-1404, Ref 51

2шт.

28

D70018

BOOT

2шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in; Service with 214-1424, Ref 50

2шт.

30

495-81108

WASHER,.281" x 1" x .109"

2шт.

31

D91040

SPRING

2шт.

32

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

33

D64228

PIN,25.45mm OD x 53.34mm L

2шт.

34

D124466

RETAINER

2шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

36

D95743

SPACER

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

38

H426775

WASHER

4шт.

120922A1

SET

Lock Plate and Linkage Kit; If used; Incl. Ref 39 - 42; 03-02, Ref 2, 15; 08-21, Ref 1, 15, Decals, Instructions

1шт.

39

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

2шт.

40

120777A1

COLLAR

1шт.

41

425-115

NUT,5/16"-24, G5

2шт.

42

213-115

ADJUSTABLE CLEVIS,5/16" - 24

2шт.

43

D124465

PULLEY,54mm OD

2шт.

44

H435266

SPACER

2шт.

45

H438614

CLIP

2шт.

H675012

SET

Parking Brake Tube Replacement, Includes: Ref. 47 - 50

1шт.

47

H438907

TUBE,25.91 mm ID x 44.4 mm OD x 104.1 mm L

1шт.

48

H438614

CLIP

1шт.

49

195-2251

WASHER,.281" x 1" x .109"

1шт.

50

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

Not Illustrated

1шт.

51

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

52

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.
