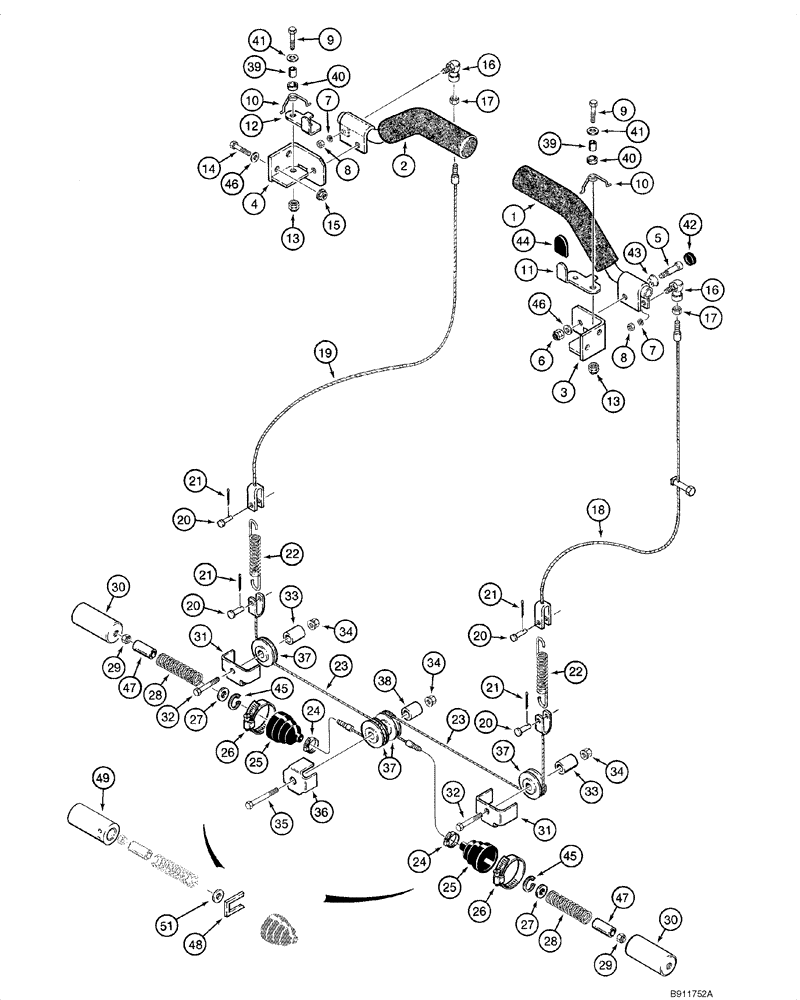

Запчасти Case 1845C (07-01) - PARKING LATCH - SEAT BAR, DUAL, - JAF0040227 (07) - BRAKES

1

D132324

BRACKET

RH; No Longer Available; See Fig 07-03; Order 1, 3, 4, 6, 7

1шт.

2

D132323

BRACKET

LH; No Longer Available; See Fig 07-03; Order 2, 3, 5, 6, 7

1шт.

3

D131233

BRACKET

Mounting; RH

1шт.

4

D131234

BRACKET

Mounting; LH

1шт.

5

121-125

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 1/2"

2шт.

6

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

2шт.

7

492-11025

LOCK WASHER,1/4"

2шт.

8

425-114

NUT,1/4"-28, G5

2шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

D134464

SPRING

2шт.

11

D131228

LATCH

RH

1шт.

12

D131229

LATCH

LH

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

16

H169920

BALL JOINT

1/4 NF

2шт.

17

425-114

NUT,1/4"-28, G5

2шт.

18

D128666

CABLE

455 mm (17-7/8 in); Upper RH; No Longer Available; See Fig 07-03; Order 21, 39, 40, 41, 42

1шт.

19

D128666

CABLE

455 mm (17-7/8 in); Upper LH; No Longer Available; See Fig 07-03; Order 22, 41, 42

1шт.

20

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

4шт.

21

432-68

COTTER PIN,3/32" x 1/2"

4шт.

22

D127347

SPRING

2шт.

23

H438694

CABLE

894 mm (35-13/64 in); Lower

2шт.

24

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

25

D70018

BOOT

2шт.

26

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

27

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64)

2шт.

28

D91040

SPRING

2шт.

29

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

D64228

PIN,25.45mm OD x 53.34mm L

2шт.

31

D124466

RETAINER

2шт.

32

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

33

D95743

SPACER

2шт.

34

231-5146

FLANGE NUT,3/8"-16

3шт.

35

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

36

D127348

RETAINER

1шт.

37

D124465

PULLEY,54mm OD

4шт.

38

D95556

SPACER

1шт.

39

H270777

SPACER

2шт.

40

D44352

BUSHING

2шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

42

D134923

CAP

2шт.

43

D134922

WASHER

2шт.

44

D134924

HANDLE

2шт.

45

100-21100

SNAP RING,1.00", Int, #100

2шт.

46

H426775

WASHER

6шт.

47

H435266

SPACER

2шт.

H675012

SET

Parking Brake Tube Replacement, Includes: Ref. 48 - 51

1шт.

48

H438614

CLIP

2шт.

49

H438907

TUBE,25.91 mm ID x 44.4 mm OD x 104.1 mm L

1шт.

50

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

Not Illustrated

1шт.

51

195-2251

WASHER,.281" x 1" x .109"

1шт.
