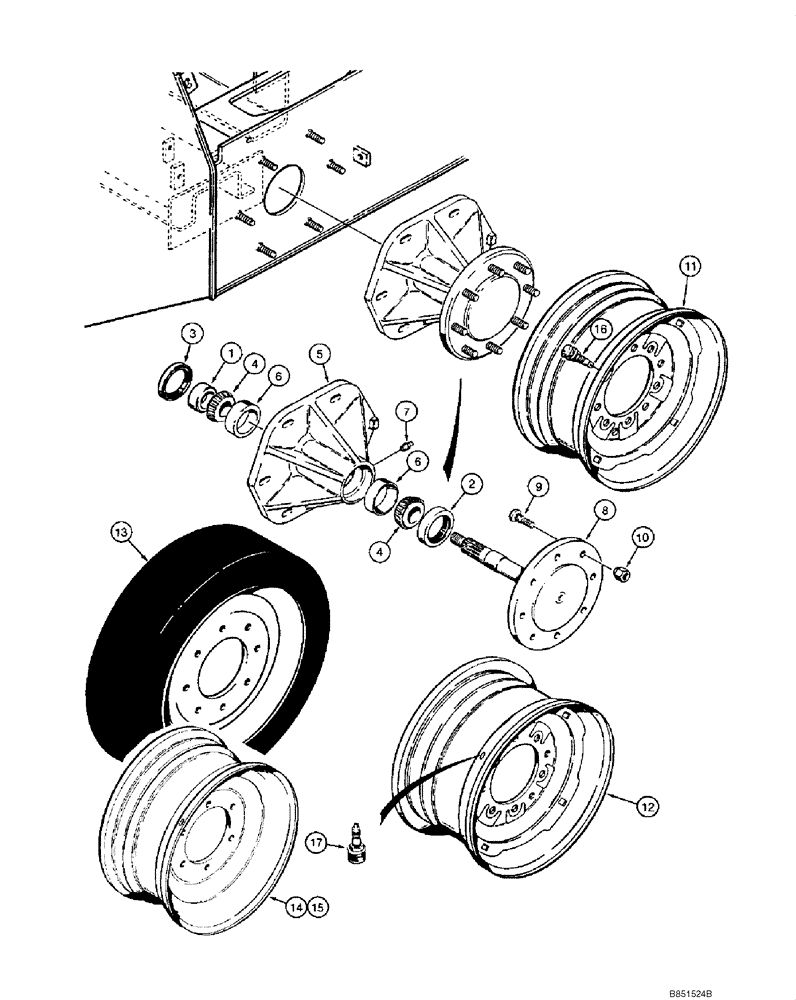

Запчасти Case 1845C (06-24) - AXLES - WHEEL, - JAF0192378 (06) - POWER TRAIN

1

D64018

SPACER,50.85mm ID x 63.58mm OD x 18.11mm L

4шт.

2

D63674

SEAL,63.5mm ID x 89.15mm OD x 11.13mm Thk

Grease; Outer

4шт.

3

A156927

OIL SEAL,63.5mm ID x 89.08mm OD x 6.76mm Thk

Grease; Inner

4шт.

4

287902

ROLLER BEARING,50.8mm ID x 22.23mm W

Wheel Bearing; Does Not Include Bearing Cup; Replaces 364463C91

8шт.

222930A1

HUB

Incl. 5 - 7; Replaces D63672

4шт.

5

NSS

NOT SOLD SEPARAT

Hub

1шт.

6

199955

BEARING CUP,82mm OD x 17mm W

Replaces 376463C1

2шт.

7

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

8

D67818

AXLE

Incl. 9

4шт.

9

H439302

WHEEL BOLT

9/16 NF

8шт.

10

G49041

WHEEL NUT

9/16 NF

32шт.

11

D67871

WHEEL

50 x 16; Used with 7.50 x 16 Inch Tire

4шт.

12

D136530

RIM

WHEEL 12 x 16,5; Used with 12 x 16.5 Inch Tire

4шт.

13

REF

INSTRUCTION

Wheel; Machinery Item; North America Only

4шт.

14

H438567

RIM

WHEEL 9.75 x 16.5; Used with 12 x 16.5 Inch Tire

4шт.

15

H438704

WHEEL

50 x 16; Used with 7.50 x 16 Inch Tire

4шт.

16

D48692

VALVE

Used with 11, 12

4шт.

17

T57461

VALVE STEM

Used with 12, 14, 22

4шт.

18

REF

INSTRUCTION

Tire, 7.50 x 16; Steel Cap; Machinery Item; Not Illustrated

4шт.

19

REF

INSTRUCTION

Tire, 12 x 16.5; Machinery Item; Flotation; Not Illustrated

4шт.

20

REF

INSTRUCTION

Tire, 12 x 16.5; Flotation; Heavy Duty; OMEGA; Machinery Item; Not Illustrated

4шт.

20

121111A1

WHEEL

For Use with Goodyear Rubber Tracks; Machinery Item; Not Illustrated

4шт.

22

121099A1

RIM

WHEEL 10 x 16.5; Offset; Used with 10 x 16.5 Tire; Not Illustrated

4шт.

23

REF

INSTRUCTION

Tire, 10 x 16.5; Flotation; Machinery Item; Not Illustrated

4шт.
