Запчасти Case 1845C (06-21) - FILTER ASSY - HYDRAULIC OIL (06) - POWER TRAIN

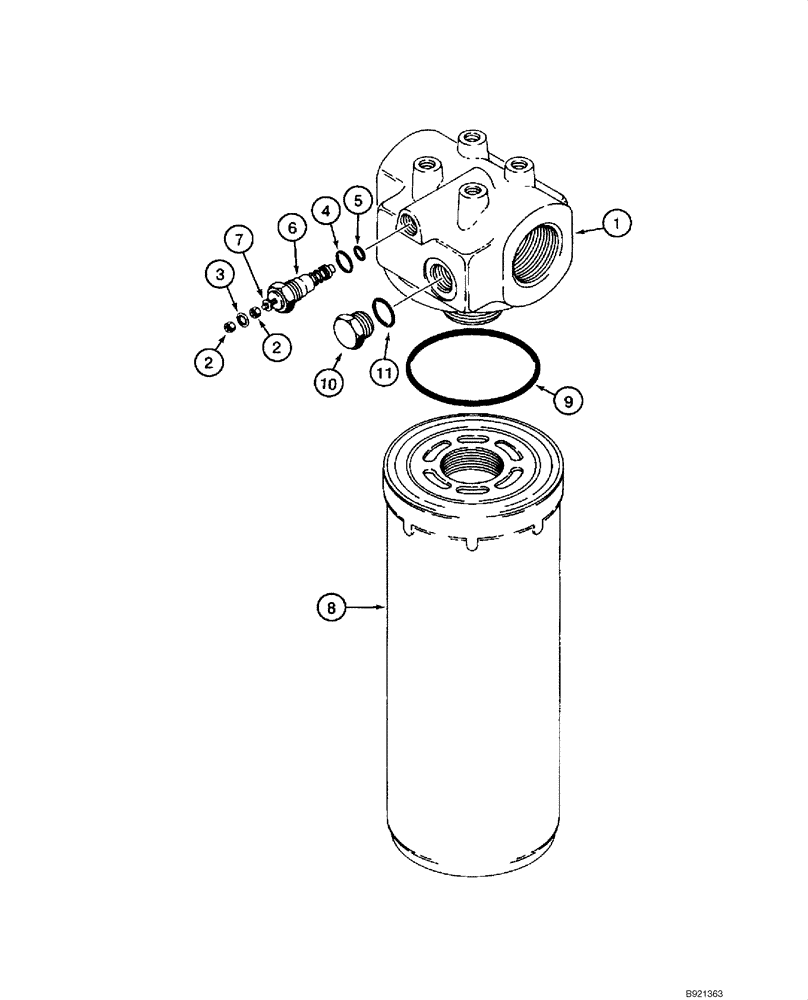

Схема запчастей Case 1845C - (06-21) - FILTER ASSY - HYDRAULIC OIL (06) - POWER TRAIN
3
7
4
2
9
6
11
5
1
8
10
2

Артикул

Название

Примечание

Количество

D125507

FILTER

Hydraulic Oil; Incl. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

N13268

PRESSURE SWITCH

Incl. 2 - 7

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Indicator

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

D126922

FILTER, ELEMENT

ELEMENT, FILTER Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Element

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. 11

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 14
