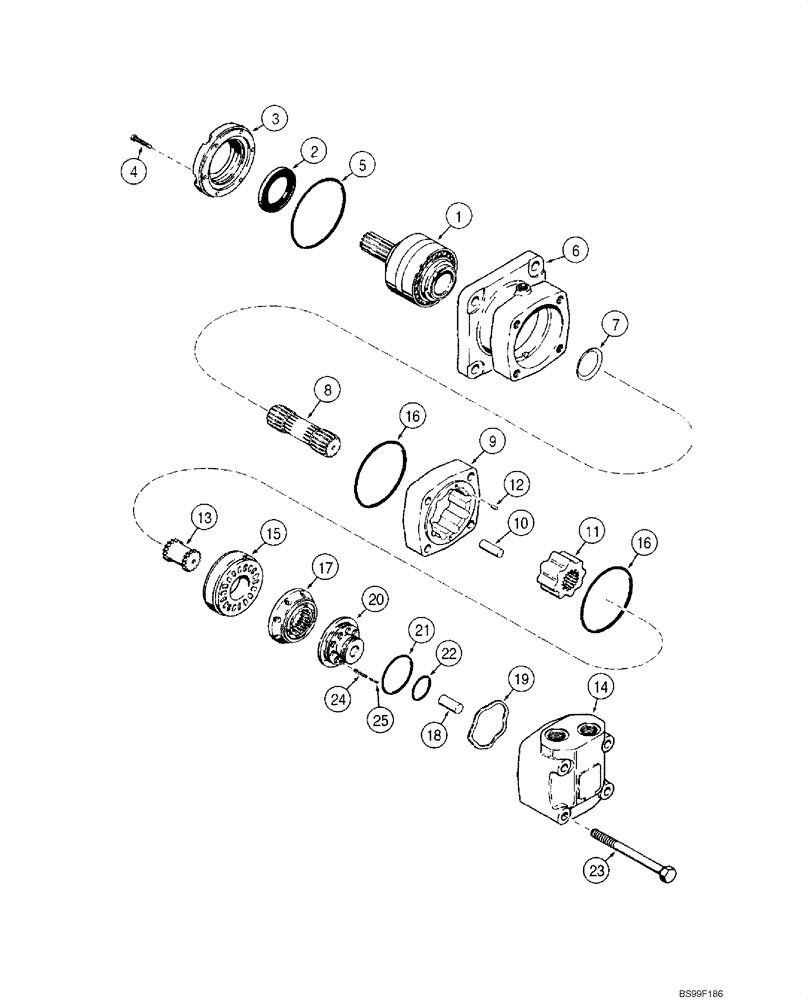

Запчасти Case 1845C (06-16) - MOTOR ASSY - HYDROSTATIC, JAF0067438 - (06) - POWER TRAIN

H673971

MOTOR, ELECTRIC

Hydrostatic Drive; Incl. 1 - 25; For Mounting, See Fig 06-09; No Longer Available, Order 229263A1; See Fig 06-17

2шт.

229263A1R

REMAN-HYDROSTAT PUMP

1845C (1/86-), Reman for New P/N H673971

2шт.

229263A1C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

CASH437536

SHAFT

1шт.

2

NSS

NOT SOLD SEPARAT

Seal

1шт.

3

H436753

FLANGE

1шт.

4

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

5

NSS

NOT SOLD SEPARAT

O-Ring 90 x 2

1шт.

6

H437537

HOUSING

1шт.

7

NSS

NOT SOLD SEPARAT

Seal

1шт.

8

H437538

SHAFT

1шт.

H437539

PINION

Incl. 9- 11

1шт.

9

NSS

NOT SOLD SEPARAT

Stator

1шт.

10

NSS

NOT SOLD SEPARAT

Roller

9шт.

11

NSS

NOT SOLD SEPARAT

Rotor

1шт.

12

E37942

GUIDE PIN

1шт.

13

H436757

SHAFT

1шт.

14

240895A1

HOUSING

Replaces H436758; Also Order 382849A1

1шт.

382849A1

DRIVE PLATE

1шт.

15

H436759

CHAMBER

1шт.

16

NSS

NOT SOLD SEPARAT

96 x 3

1шт.

17

H436760

VALVE

1шт.

18

H436761

SPACER

1шт.

19

H436762

SPACER

1шт.

20

H436763

LARGE PLATE

PLATE, LARGE

1шт.

21

NSS

NOT SOLD SEPARAT

O-Ring 63 x 2

1шт.

22

NSS

NOT SOLD SEPARAT

O-Ring 40 x 2

1шт.

23

198613A1

BOLT

4шт.

24

838-1528

LOCK PIN,M5 x 28, Slotted

1шт.

25

838-1324

LOCK PIN,M3 x 24, Slotted

1шт.
