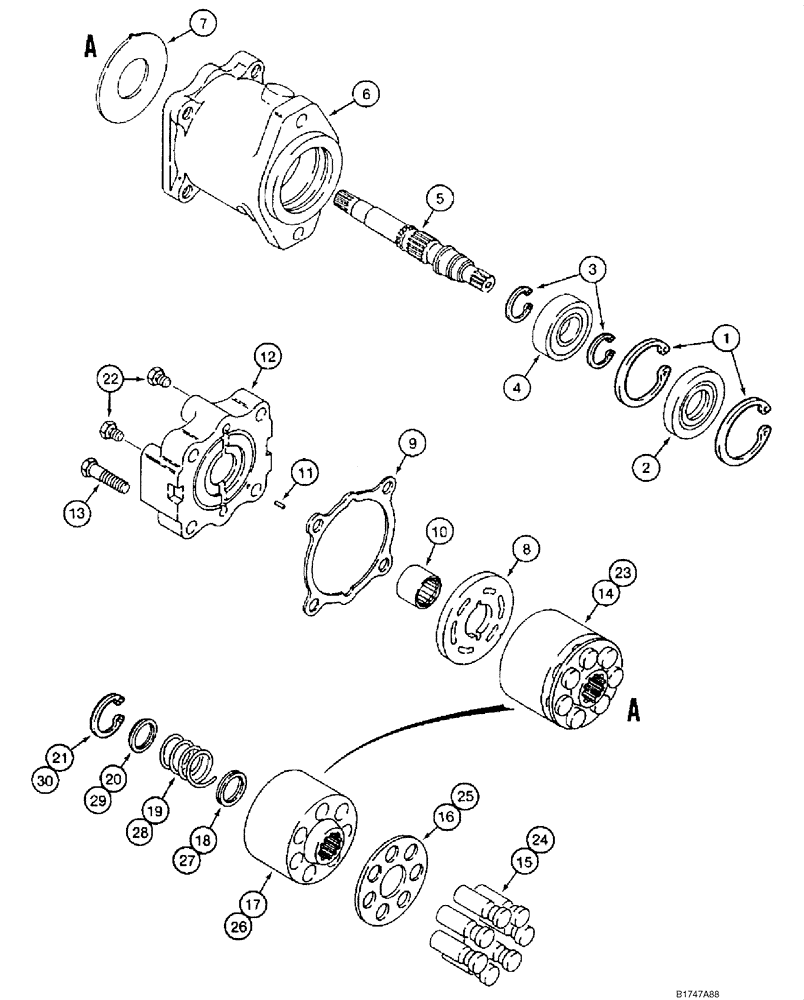

Запчасти Case 1845C (06-15) - MOTOR ASSY - HYDROSTATIC, - JAF0067437 (06) - POWER TRAIN

*

D138153

HYDRAULIC MOTOR

Hydrostatic Drive; Incl. 1 - 32; For Mounting, See Fig 06-07, 06-08; No Longer Available; Order H674364, 238-5155

2шт.

*

1971652C1

REMAN-HYD MOTOR

Reman For New PN D138153

2шт.

*

1971653C1

CORE-MOTOR HYDRAULIC

Return Number

2шт.

*

H674364

MOTOR, HYDRAULIC

Hydrostatic Drive; Incl. 1 - 32; For Mounting, See Fig 06-07, 06-08

2шт.

*

1971652C1

REMAN-HYD MOTOR

1845C CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA) (1/86-)

2шт.

*

1971653C1

CORE-MOTOR HYDRAULIC

Return Number

2шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

*

87430034

MOTOR, HYDRAULIC

Hydrostatic Drive; Incl. 1 - 32

2шт.

*

1971652C1

REMAN-HYD MOTOR

Reman for new P/N 87430034

2шт.

*

1971653C1

CORE-MOTOR HYDRAULIC

Return Number

2шт.

2

N14103

SEAL

1шт.

3

100-11137

SNAP RING,#137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

5

H435978

SHAFT

Used with D138153

1шт.

5

H437040

SHAFT

Used with H674364

1шт.

6

NSS

NOT SOLD SEPARAT

Housing

1шт.

7

N14617

WASHER

1шт.

8

N13197

PLATE

1шт.

9

N13198

GASKET

1шт.

10

1277297C1

NEEDLE BEARING

1шт.

11

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

1шт.

12

NSS

NOT SOLD SEPARAT

Cover

1шт.

13

N14618

BOLT,Spcl

Used with D138153

4шт.

13

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Used with H674364

4шт.

14

N13196

BLOCK

Incl. 15 - 21; Used with D138153

1шт.

15

NSS

NOT SOLD SEPARAT

Piston

7шт.

16

NSS

NOT SOLD SEPARAT

Plate

1шт.

17

NSS

NOT SOLD SEPARAT

Block

1шт.

18

115946A1

WASHER

1шт.

19

115948A1

SPRING

1шт.

20

115950A1

WASHER

1шт.

21

D38748

SNAP RING,#162, 1.701, Int, Spiral

1шт.

22

214389

PLUG,3/4" - 16 ORB

2шт.

*

Incl. 22A

1шт.

22a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

115952A2

CYLINDER BLOCK

Incl. 24 - 32; Used with H674364; Replaces 115952A1

1шт.

24

NSS

NOT SOLD SEPARAT

Piston

7шт.

25

NSS

NOT SOLD SEPARAT

Plate

1шт.

26

115944A1

CYLINDER BLOCK

1шт.

27

115946A1

WASHER

1шт.

28

115948A1

SPRING

1шт.

29

115950A1

WASHER

1шт.

30

115943A1

SNAP RING

1шт.

31

115942A1

GUIDE

Not Illustrated

1шт.

32

110873A1

PIN,2.38mm OD x 33.53mm L

Not Illustrated

3шт.

34

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

Used with H674364

1шт.
