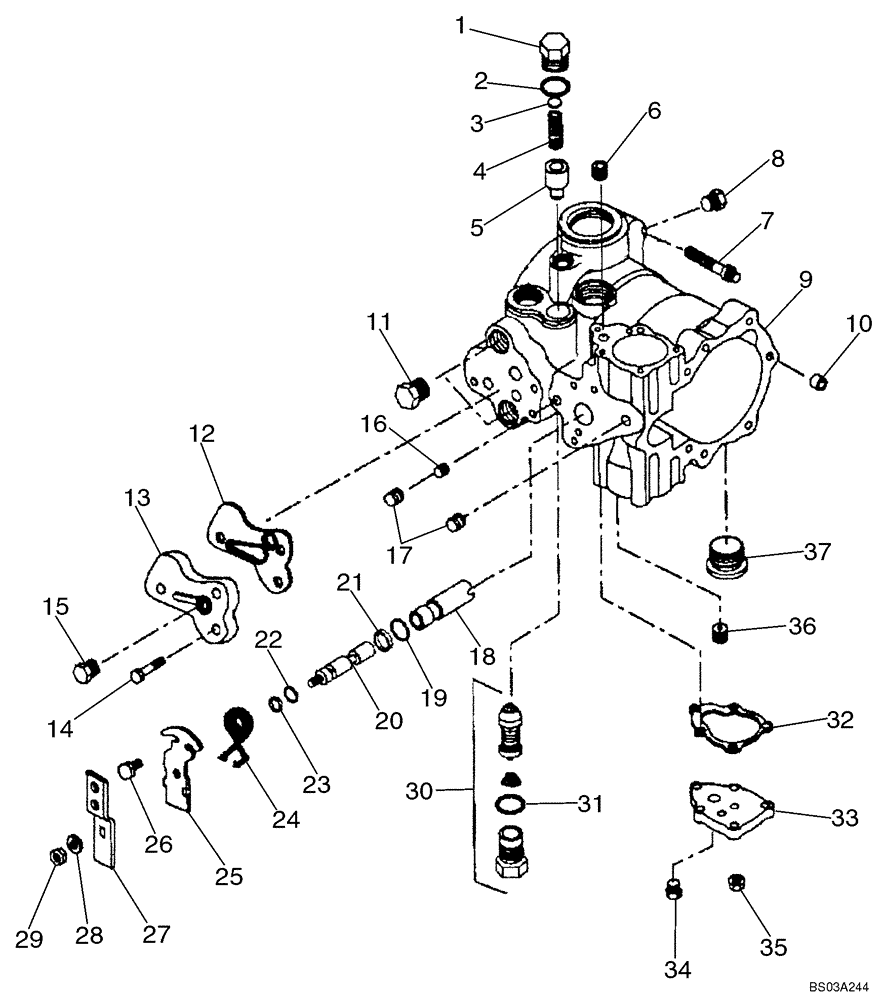

Запчасти Case 1845C (06-14A) - PUMP ASSY, TANDEM, JAF0339424 - (06) - POWER TRAIN

388796A1

PUMP,45.88 CC

Tandem; See Fig 06-13; Incl. 06-14 - 06-14D; JAF0339424 -

1шт.

388796A1R

REMAN-HYD PUMP

1845C, SN JAF0339424 & After

1шт.

388796A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

N13266

PLUG

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

H407767

KIT

Shim

1шт.

4

244898A1

SPRING

Charge Relief Valve

1шт.

5

V38371

VALVE

Charge Relief

1шт.

6

F23137

PLUG

1шт.

7

166-89

12 PT SCREW,1/2" - 13 x 2", Gr 8

1шт.

8

9672438

PLUG,7/16" - 20 ORB

1шт.

9

402364A1

HOUSING

1шт.

10

N13994

SPACER

1шт.

11

76349

PLUG,9/16" - 18 ORB

2шт.

12

303709A1

GASKET

Suction Filter Adapter

1шт.

13

101462A1

ADAPTER

Suction Filter

1шт.

14

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

15

76349

PLUG,9/16" - 18 ORB

1шт.

16

H435774

PLUG

1шт.

17

F23137

PLUG

2шт.

18

110671A2

SLEEVE

1шт.

19

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

20

H435769

SPOOL

1шт.

21

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

2шт.

23

S99877

BACK-UP RING,Split, 9.91mm ID x 12.65mm OD x 1.32mm Thk

1шт.

24

N13248

SPRING,3/4" OD

1шт.

25

N13250

BRACKET

Neutral Return

1шт.

26

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

1шт.

27

N13251

HANDLE

1шт.

28

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

29

H436054

SPECIAL NUT,Lock, 5/16" - 18

1шт.

30

N14848

VALVE, PRESSURE RELI

EF Component Parts Not Serviced Separately

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

140008A1

GASKET KIT

Overhaul; Incl. 32; Also Incl. Parts On Fig 06-14 - 06-14D

1шт.

32

NSS

NOT SOLD SEPARAT

Gasket; Servo Cover

2шт.

33

H436065

COVER

Servo

1шт.

34

76349

PLUG,9/16" - 18 ORB

1шт.

35

N13260

NUT,Inverted Lock

1шт.

36

F23137

PLUG

1шт.

37

9841223

PLUG,1-1/16" - 12 ORB

3шт.
