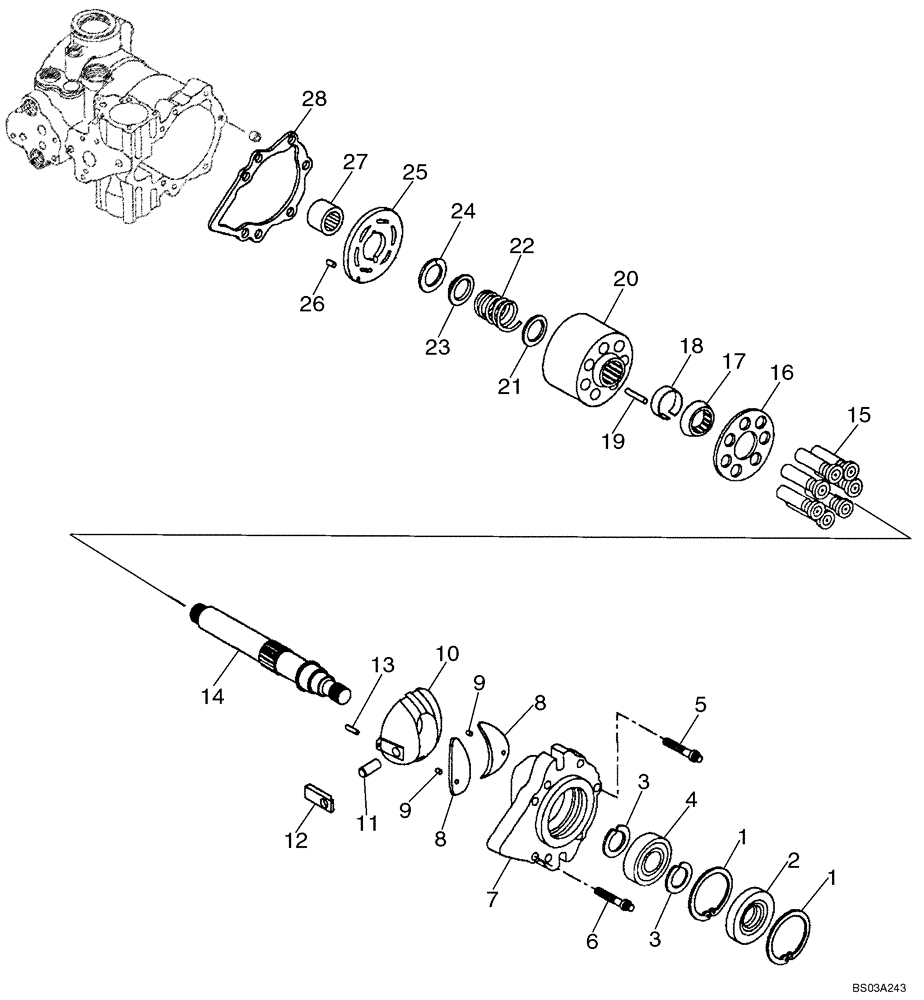

Запчасти Case 1845C (06-14) - PUMP ASSY, TANDEM, JAF0339424 - (06) - POWER TRAIN

388796A1

PUMP,45.88 CC

Tandem; See Fig 06-13; Incl. 06-14 - 06-14D; JAF0339424 -

1шт.

388796A1R

REMAN-HYD PUMP

1845C, SN JAF0339424 & After

1шт.

388796A1C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

2

N14103

SEAL

1шт.

3

100-11137

SNAP RING,#137, Ext

2шт.

4

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

5

223680A1

SPECIAL BOLT,Torx, 3/8"

1шт.

6

223677A1

SCREW,Torx, 7/16"

6шт.

7

H436703

COVER

1шт.

8

193488A1

BEARING LINER

2шт.

9

193494A1

PIN, ROLL

4шт.

10

178632A1

COVER

1шт.

11

N13254

PIN

1шт.

12

N13224

SLEEVE

1шт.

13

324610A1

PIN

1шт.

14

N13244

SHAFT

1шт.

402366A1

KIT

Cylinder Block; Incl. 15-24

1шт.

15

NSS

NOT SOLD SEPARAT

Piston Assy

7шт.

16

NSS

NOT SOLD SEPARAT

Slipper Guide

1шт.

17

NSS

NOT SOLD SEPARAT

Retainer Guide

1шт.

18

NSS

NOT SOLD SEPARAT

Retainer

1шт.

19

NSS

NOT SOLD SEPARAT

Pin; Slipper Hold-Down

3шт.

20

NSS

NOT SOLD SEPARAT

Cylinder Block

1шт.

21

NSS

NOT SOLD SEPARAT

Washer

1шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

23

NSS

NOT SOLD SEPARAT

Washer

1шт.

24

NSS

NOT SOLD SEPARAT

Retaining Ring

1шт.

25

128928A1

LARGE PLATE

PLATE, LARGE RH

1шт.

26

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

27

1277297C1

NEEDLE BEARING

1шт.

28

H436704

GASKET,0.79mm Thk

Front Cover

1шт.
