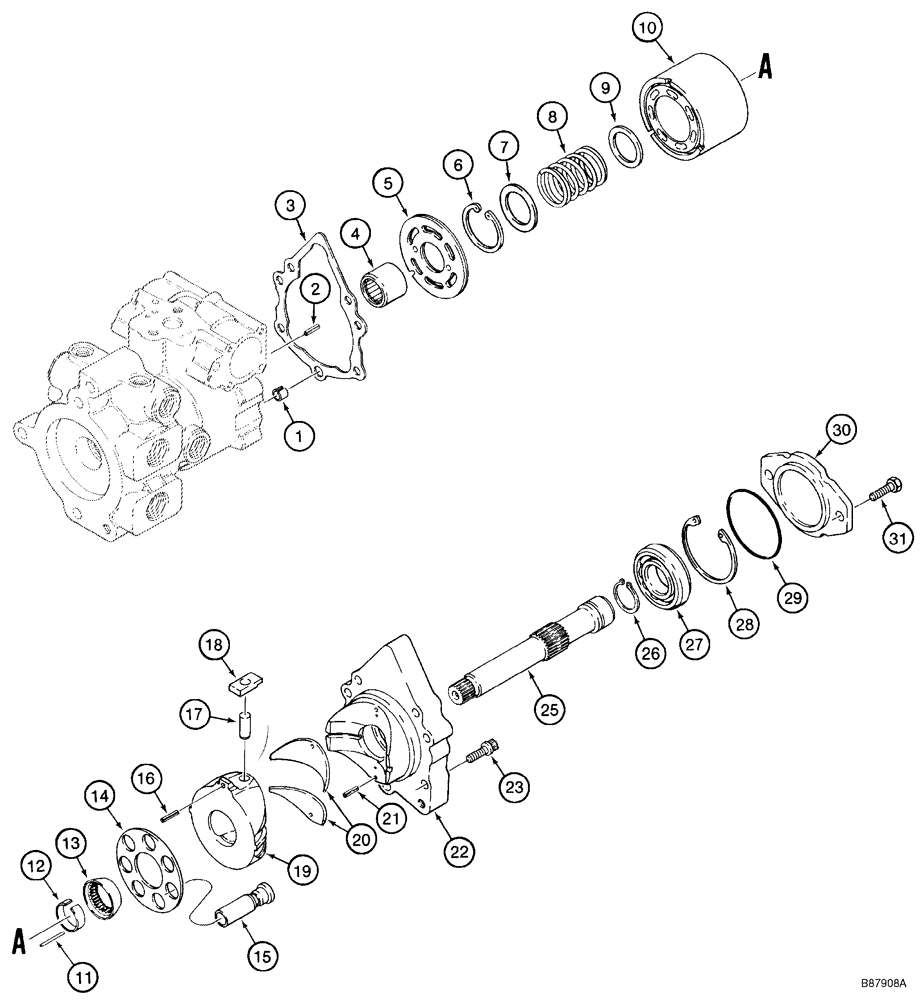

Запчасти Case 1845C (06-13B) - PUMP ASSY, TANDEM, - JAF0339423 (06) - POWER TRAIN

REF

INSTRUCTION

Pump Assy; Tandem; See Fig 06-13

1шт.

1

N13261

PIN

- 9892543

1шт.

1

N13994

SPACER

9892544 -

1шт.

2

138-38

LOCK PIN,3/32" x 9/16", Slotted

3/32 x 5/8; - 9892543

1шт.

2

38-11207

LOCK PIN,4.76mm OD x 11.11mm L, Slotted

9892544 - JAF0339423

1шт.

3

H436704

GASKET,0.79mm Thk

1шт.

4

1277297C1

NEEDLE BEARING

1шт.

N13220

BLOCK

- 9892543

1шт.

115952A2

CYLINDER BLOCK

9892544 - ; Replaces 115952A1; Incl. 6 - 15

1шт.

5

N13218

PLATE

- 9892543; Counterclockwise Rotation

1шт.

5

N14061

LARGE PLATE

PLATE, LARGE 9892544 - 17955711; Counterclockwise Rotation

1шт.

5

N14468

PLATE

17955712 - JAF0121892; Counterclockwise Rotation

1шт.

5

128929A1

LARGE PLATE

PLATE, LARGE JAF0121893 - ; Counterclockwise Rotation

1шт.

6

NSS

NOT SOLD SEPARAT

Ring; Used with 115952A2

1шт.

7

115950A1

WASHER

Used with 115952A2

1шт.

8

115948A1

SPRING

Used with 115952A2

1шт.

9

115946A1

WASHER

Used with 115952A2

1шт.

10

NSS

NOT SOLD SEPARAT

Block; Used with N13220

1шт.

10

115944A2

CYLINDER BLOCK

Used with 115952A2; Replaces 115944A1

1шт.

11

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

12

NSS

NOT SOLD SEPARAT

Ring; Used with N13220

1шт.

12

115943A1

SNAP RING

Used with 115952A2

1шт.

13

NSS

NOT SOLD SEPARAT

Guide; Used with N13220

1шт.

13

115942A1

GUIDE

Used with 115952A2

1шт.

14

NSS

NOT SOLD SEPARAT

Retainer

1шт.

15

NSS

NOT SOLD SEPARAT

Piston

7шт.

16

38-31212

PIN,3/16" x 3/4", Coiled

9892543

1шт.

16

138-130

LOCK PIN,1/4" x 3/4", Slotted

9892544 - JAF0339423

1шт.

17

N13254

PIN

1шт.

18

N13224

SLEEVE

1шт.

19

N13223

PLATE

- 9892543; No Longer Available, Order 127929A2, D137424; See Fig 06-13

1шт.

19

178631A1

COVER

9892544 - 17955711

1шт.

19

178632A1

COVER

17955712 - ; Replaces N14469

1шт.

20

N13237

BEARING LINER

- 9892543

1шт.

20

230416A1

BEARING COVER,1.36"

9892544 - 17955711; Black

2шт.

20

193488A1

BEARING LINER

17955712 - ; Yellow; Used with 178632A1, Ref 19

2шт.

21

38-1806

LOCK PIN,1/8" x 3/8", Slotted

2шт.

21a

193494A1

PIN, ROLL

Used with 178632A1, Ref 19; Not Illustrated

2шт.

22

N13221

COVER

- 9892543

1шт.

22

N13991

COVER

9892544 - 17956882

1шт.

22

N14665

COVER

17956883 - JAF0041367

1шт.

22

H436705

COVER

JAF0041368 -

1шт.

23

27279R1

12 PT SCREW,Flg, 3/8" - 16 x 1"

- JAF0041367

6шт.

23

80-1716

12 PT SCREW,Flg, 7/16" - 14 x 1", Gr 8

Gr 8; JAF0041368 - JAF0339423

6шт.

25

N13222

SHAFT

Front

1шт.

26

100-11137

SNAP RING,#137, Ext

1шт.

27

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

1шт.

28

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

1шт.

29

D77050

O-RING,3.239" ID x 3.379" OD

- 17955712

1шт.

29

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

17955712 - ; Replaces A32190; If used

1шт.

29a

H438062

SHAFT SEAL

17955712 - ; If used

1шт.

30

N13258

PLATE

If used; No Longer Available; Order Ref 29A, 30A

1шт.

30a

H438063

LARGE PLATE

PLATE, LARGE If used

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.
