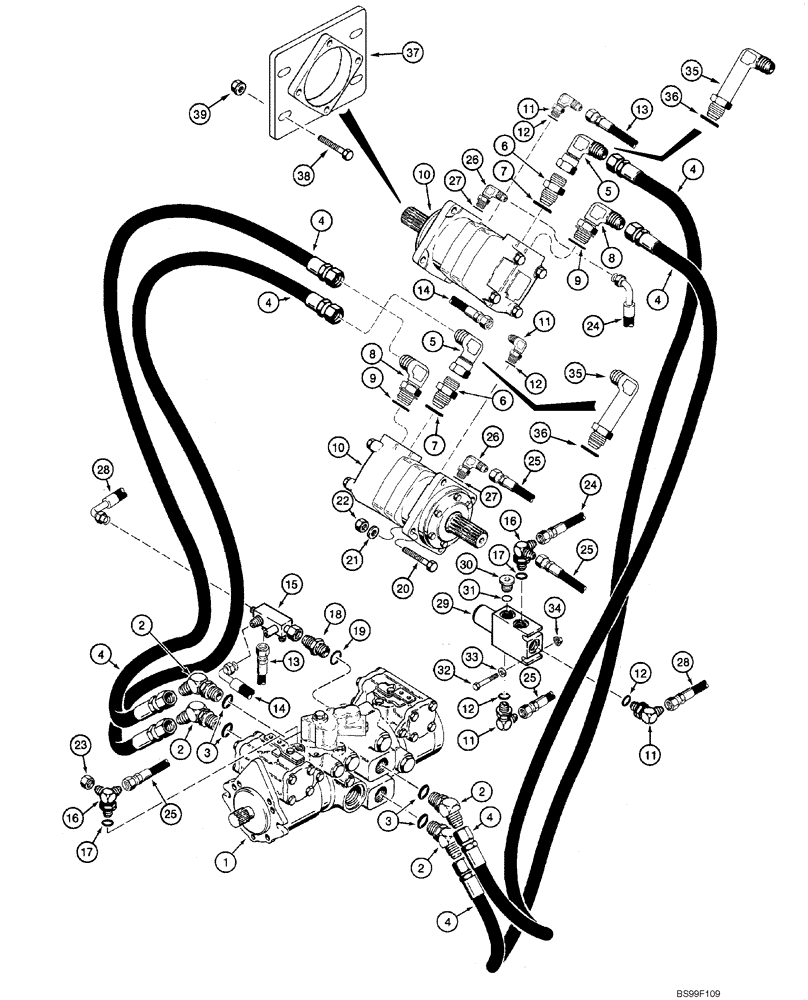

Запчасти Case 1845C (06-10) - HYDROSTATIC - PUMP AND DRIVE MOTORS (EUROPE), JAF0142299 - (06) - POWER TRAIN

1

REF

INSTRUCTION

Pump Assy; See Fig 06-11

1шт.

2

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 3

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

H435736

HOSE ASSY.,19.05mm ID x 1100mm L, SAE 100R12

1100 mm (43-3/8 in)

4шт.

5

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

If used

2шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

If used

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

REF

INSTRUCTION

Motor Assy; See Fig 06-19

2шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 12

4шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

106497A1

HOSE ASSY.

455 mm (18 in)

2шт.

14

142646A1

HOSE ASSY.

600 mm (23-5/8 in)

1шт.

15

141133A1

MANIFOLD

1шт.

16

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 17

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

8шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

22

232-4118

NUT,1/2"-13, GC

8шт.

23

218-754

CAP,37 Degree, 9/16"-18

1шт.

24

139534A1

HOSE

350 mm (13-7/8 in)

1шт.

25

139535A1

HOSE

550 mm (21-3/4 in)

2шт.

26

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. 27

2шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

142647A1

HOSE ASSY.

550 mm (21-3/4 in)

1шт.

29

187505C91

VALVE

See Fig 06-20

1шт.

30

9625178

PLUG,9/16" - 18 ORB

Incl. 31

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

33

495-11028

WASHER,1/4", SAE

2шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

35

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 36

2шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

37

H436860

PLATE

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

39

131-943

FLANGE NUT,Flg, 1/2"-13, G5

8шт.
