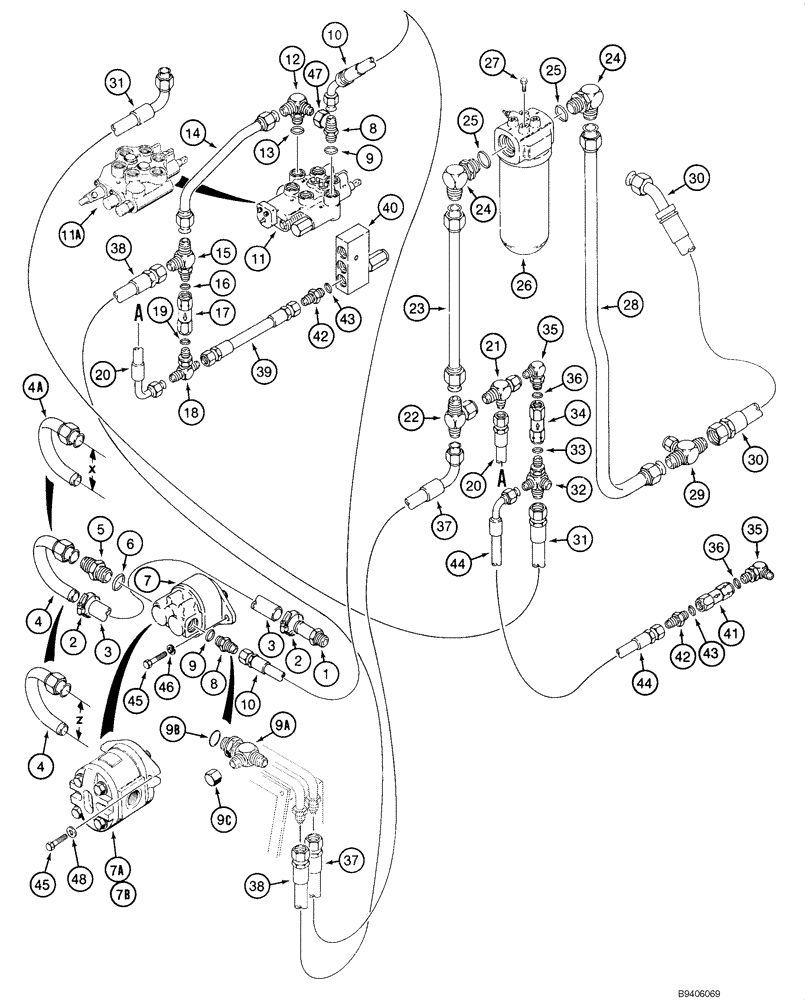

Запчасти Case 1845C (06-03) - HYDROSTATIC - PUMP, SUPPLY AND RETURN, - JAF0041367 (06) - POWER TRAIN

1

217-156

FITTING,1" Hose Barb x 1" Male NPTF

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

D124619

HOSE,25.4 mm ID x 525.00 mm, SAE 100R3

Cut from S118383X

1шт.

4

D126506

TUBE

102 mm; Used with D135547, Ref 7

1шт.

4a

103121A1

TUBE,25.4 mm OD, 205, 114 mm Length

205 mm; Used with H674907, Ref 7A

1шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

D135547

PUMP

See Fig 06-11; No Longer Used, Order 131694A1, Ref 7B; 103121A1, Ref 4A; Also Order 131693A1; See Fig 06-11, Ref 1A

1шт.

7a

H674907

PUMP

See Fig 06-11; No Longer Used, Order 131694A1, Ref 7B; 103121A1, Ref 4A; Also Order 131693A1; See Fig 06-11, Ref 1A

1шт.

7b

131694A1

PUMP

No Longer Available, Order 319602A1; See Fig 06-11

1шт.

7b

84561846R

REMAN-HYD PUMP

Reman for New PN 131694A1

1шт.

7b

84561846C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7b

87413847

PUMP, HYDRAULIC

Components Parts Not Serviced Separately; For Seal Replacement, Order 87413478

1шт.

7b

87413847R

REMAN-HYD PUMP

1шт.

7b

87413847C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87413478

SEAL KIT

Not Illustrated

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9a

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 9B

1шт.

9b

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

9c

218-756

CAP,37 Degree, 7/8"-14

1шт.

10

D134380

HOSE ASSY.,15.88mm ID x 850mm L

850 mm (33-1/2 in)

1шт.

11

D130068

VALVE

Loader Control; - JAF0041139; See Fig 08-12

1шт.

11a

REF

INSTRUCTION

Valve, Control; JAF0041140 - JAF0041367; See Fig 08-13

1шт.

12

D61606

TEE

90; Incl. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

D133176

TUBE

1шт.

15

D133152

FITTING

Incl. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

D124643

VALVE

1шт.

18

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

D132121

HOSE

350 mm (13-7/8 in)

1шт.

21

D133150

FITTING

1шт.

22

D133148

FITTING

1шт.

23

D129150

TUBE

1шт.

24

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 25

2шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

D125507

FILTER

Hydraulic Oil; See Fig 06-21

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

D133178

TUBE

Front

1шт.

29

D133149

FITTING

1шт.

30

D124630

HOSE

900 mm (35-7/16 in)

1шт.

31

104703A1

HOSE ASSY.

1600 mm (63 in)

1шт.

32

D133151

FITTING

Manifold; Incl. 33

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

34

D124642

VALVE

5 psi; Flow Control

1шт.

35

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 36

2шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

37

D135863

HOSE,19.05mm ID x 750mm L, SAE 100R3

750 mm (29-5/8 in)

1шт.

38

D135864

HOSE

1000 mm (39-3/8 in)

1шт.

39

D133180

HOSE

275 mm (10-7/8 in)

1шт.

40

D124376

VALVE

See Fig 08-16

1шт.

41

D132039

VALVE

15 psi; Flow Control

1шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 43

2шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

D133179

HOSE

425 mm (16-3/4 in)

1шт.

45

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

2шт.

46

492-11044

LOCK WASHER,7/16"

2шт.

47

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

48

496-21047

WASHER

15/32 x 59/64 x 7/64

2шт.
