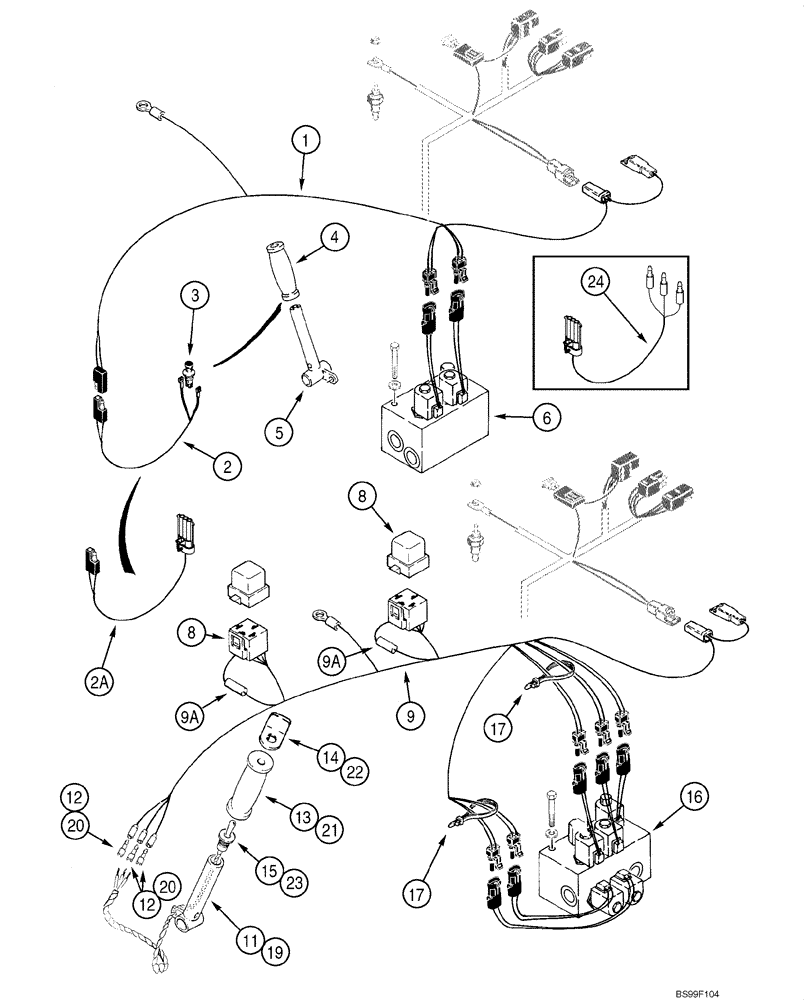

Запчасти Case 1845C (04-18) - HARNESS - HYDRAULICS, HIGH FLOW, JAF0041368 - (04) - ELECTRICAL SYSTEMS

SINGLE DIRECTIONAL

1шт.

1

112654A1

HARNESS

High Flow; Single Directional

1шт.

2

D134076

HARNESS

Jumper; Used with D133283

1шт.

2a

348168A1

HARNESS

Jumper; Used with 347922A1

1шт.

3

112653A1

SWITCH

High Flow

1шт.

4

D133282

HANDLE

1шт.

5

D133283

LEVER

If used

1шт.

5a

347922A1

HANDLE

If Used; Not Illustrated; See Fig 06-01, 08-25

1шт.

6

117870A1

SOLENOID

High Flow; Single Directional; See Fig 08-19

1шт.

7

REF

INSTRUCTION

Decal; High Flow; Single Directional; Not Illustrated; See Fig 09-46

1шт.

7a

A149801

FUSE,Lt Blue, 15 Amp

15 amp; Not Illustrated

1шт.

BI-DIRECTIONAL

1шт.

8

D128310

RELAY

30 amp; High Flow

2шт.

119858A1

HARNESS

High Flow; Bi-Directional; Incl. 9, 9A

1шт.

9

NSS

NOT SOLD SEPARAT

Harness

1шт.

9a

113699A1

RECTIFIER

2-5/8

2шт.

120225A1

LEVER

Control; Incl. 11 - 15; Not Available as an Assembly; Order Components

1шт.

11

H439164

LEVER

1шт.

12

E20680

TERMINAL CONNECTOR,Male

3шт.

13

D133282

HANDLE

1шт.

14

123676A1

SHIELD

1шт.

15

177673A1

PRESSURE SWITCH

Replaces 101615A2

1шт.

16

111479A1

SOLENOID VALVE

High Flow; Bi-Directional; See Fig 08-20

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

18

120559A1

DECAL

High Flow; Bi-Directional; Not Illustrated; See Fig 09-46

1шт.

182100A1

LEVER ASSY.

Control; Incl. 19 - 23; Not Available as an Assembly; Order Components; Models with Emissions Certified Engine

1шт.

19

H439164

LEVER

1шт.

20

E20680

TERMINAL CONNECTOR,Male

3шт.

21

D133282

HANDLE

1шт.

22

182099A1

SHIELD

1шт.

23

177673A1

PRESSURE SWITCH

1шт.

24

348169A1

Jumper

1шт.

25

A149801

FUSE,Lt Blue, 15 Amp

15 amp; Not Illustrated

1шт.
