Запчасти Case 1845C (02-02) - MOUNT, ENGINE - MUFFLER (02) - ENGINE

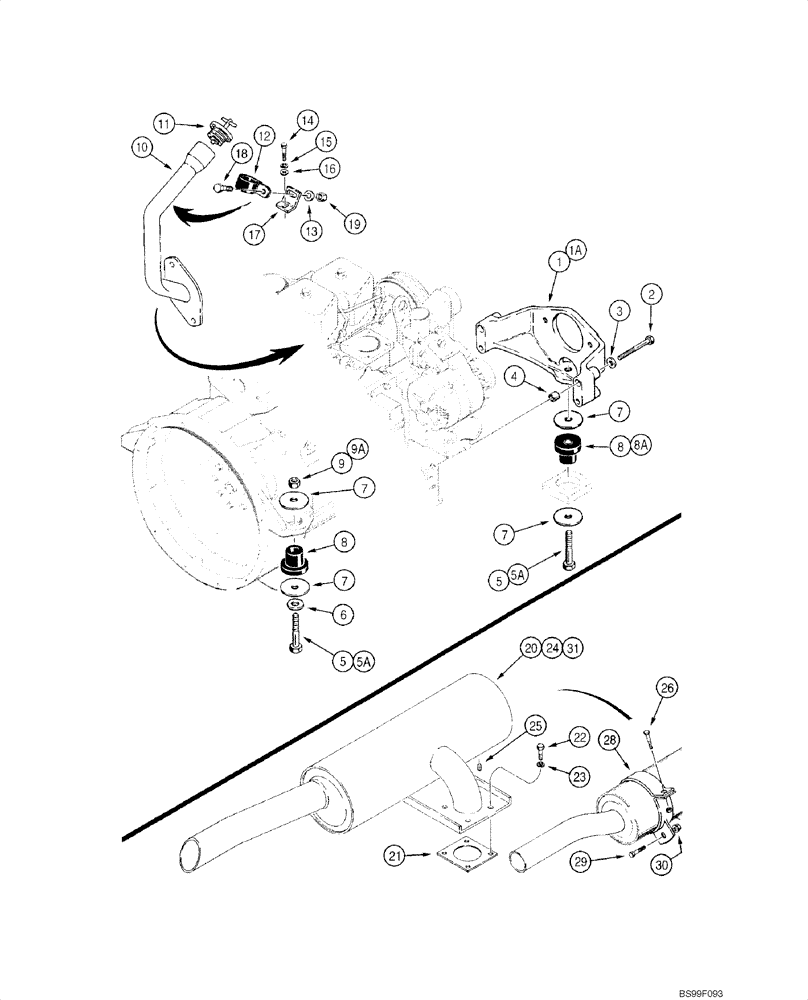

Схема запчастей Case 1845C - (02-02) - MOUNT, ENGINE - MUFFLER (02) - ENGINE
1
6
29
11
8
4
7
7
23
12
14
7
10
17
8
19
18
24
3
20
16
9
5a
30
28
15
1a
2
5a
31
22
13
5
26
21
8a
5
25
7
9a

Артикул

Название

Примечание

Количество

1

D131504

SUPPORT

Rear

1шт.

1a

247421A1

SUPPORT

Rear; Models with Emissions Certified Engine

1шт.

2

814-12085

BOLT,Hex, M12 x 1.75 x 85mm, Cl 8.8

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

4

A170309

BUSHING,13.41mm ID x 18mm OD x 13.25mm L

2шт.

5

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

3шт.

5a

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Used with 247421A1, Ref 1A

3шт.

6

495-21069

WASHER,5/8"

(11/16 x 1-3/4 x 9/64)

2шт.

7

CASD35009

WASHER,16.67mm ID x 63.5mm OD

5-6шт.

7

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

Used on Models with Emissions Certified Engine

5шт.

8

D133316

RUBBER MOUNTING,63.5mm OD x 50.8mm L

Insulator; Engine Mounting; Replaces D122727

3шт.

8

A140221

MOUNTING PARTS

Insulator; Engine Mounting; North American Models; Used with 247421A1, Ref 1A; Used on Models with Emissions Certifed Engine

3шт.

8a

308706A1

SUPPORT

Insulator; Engine Mounting; European Models; Used on Models with Emissions Certifed Engine

1шт.

9

232-14110

LOCK NUT,5/8"-11, GC

2шт.

9a

832-10416

NUT,M16 x 2, Cl 8

Used with 247421A1, Ref 1A

2шт.

10

D133662

TUBE

Oil Fill; If used; Also see Fig 02-10 - 02-12 for Oil Fill Tube Parts

1шт.

11

A77424

FILLER CAP

Oil Fill Tube; If used

1шт.

12

R11860

CLAMP

Oil Fill Tube; If used

1шт.

13

195-533

WASHER,1/2", SAE

(17/32 x 1-1/16 x 3/32); If used

1шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

If used

1шт.

15

892-11010

LOCK WASHER,M10

If used

1шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16"); If used

1шт.

17

D133678

SUPPORT

If used

1шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

If used

1шт.

19

231-1448

NUT,1/2"-13, GB

If used

1шт.

20

A189113

MUFFLER

Standard; If used; Replaces D126952, Serial Range: -JAF0016239

1шт.

21

J912220

GASKET,0.4mm Thk

Pipe

1шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

23

892-11010

LOCK WASHER,M10

4шт.

24

298119A1

MUFFLER

Spark Arresting; Bracket; Used on Models with Emissions Certifed Engine, Wrapped W/ Insulation and Outer Canister; Incl. 25 - 28, Start Serial: JAF0016239

1шт.

24

103319A1

MUFFLER

Production Only, Not Available, Order 117000A1, Ref 31; Incl. 25 - 27, Start Serial: JAF0016239

1шт.

25

217-77

PLUG

3/8 PT

1шт.

26

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

NSS

NOT SOLD SEPARAT

Used on Models with Emissions Certifed Engine

1шт.

28

1347886C1

SUPPORT

1шт.

29

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1-2шт.

30

231-5146

FLANGE NUT,3/8"-16

1-2шт.

31

117000A1

MUFFLER,W/ Spark Arrester

Not Wrapped W/ Insulation and Outer Canister, Start Serial: JAF0016239

1шт.

Выбрано товаров: 39
