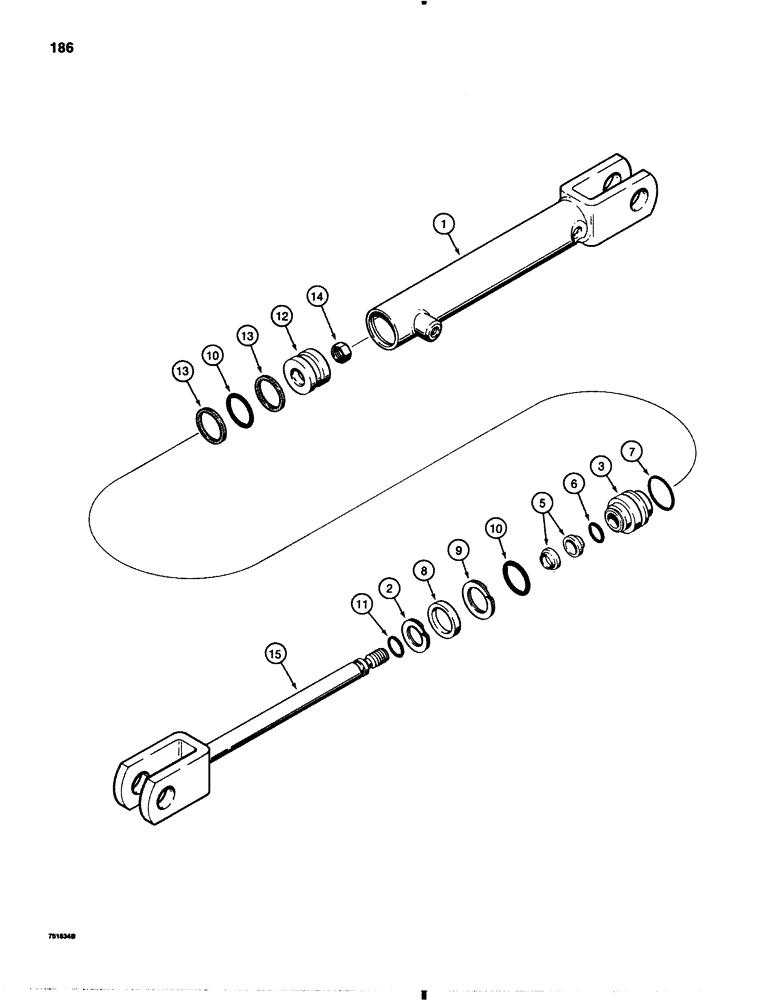

Запчасти Case 1845B (186) - D71057 GRAPPLE CYLINDER (08) - HYDRAULICS

D71057

CYLINDER

grapple, 1-1/2", 38 mm ID x 6-5/8", 168 mm stroke, Inc: Ref. 1 - 15

2шт.

1

D72813

TUBE

cylinder

1шт.

2

A44654

SNAP RING,#125, 1.188", Ext Spiral

RING locking

1шт.

A47559

GLAND

HEAD ASSEMBLY gland, Inc: Ref. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING gland, not shown

1шт.

5

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

WIPER gland

2шт.

6

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

gland

1шт.

7

S6582

O-RING,1.234" ID x 1.512" OD x 0.139"

gland, center

1шт.

8

A44641

SPACER,31.62mm ID x 34.37mm OD x 7.7mm L

locking rings

1шт.

9

A44652

SNAP RING,#150, 1.591", Int, Spiral

RING locking

1шт.

10

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

head and piston

2шт.

11

A64436

O-RING,0.549" ID x 0.755" OD

piston rod

1шт.

12

A44640

PISTON

cylinder, single groove

1шт.

13

S6909

SEAL

BACKUP RING piston O-ring

2шт.

14

131-1145

JAM NUT,5/8" - 18

NUT hex, jam, self-locking, 9/16" - 18 NF, plated

1шт.

15

D72814

ROD

piston, 3/4", 19 mm diameter

1шт.
