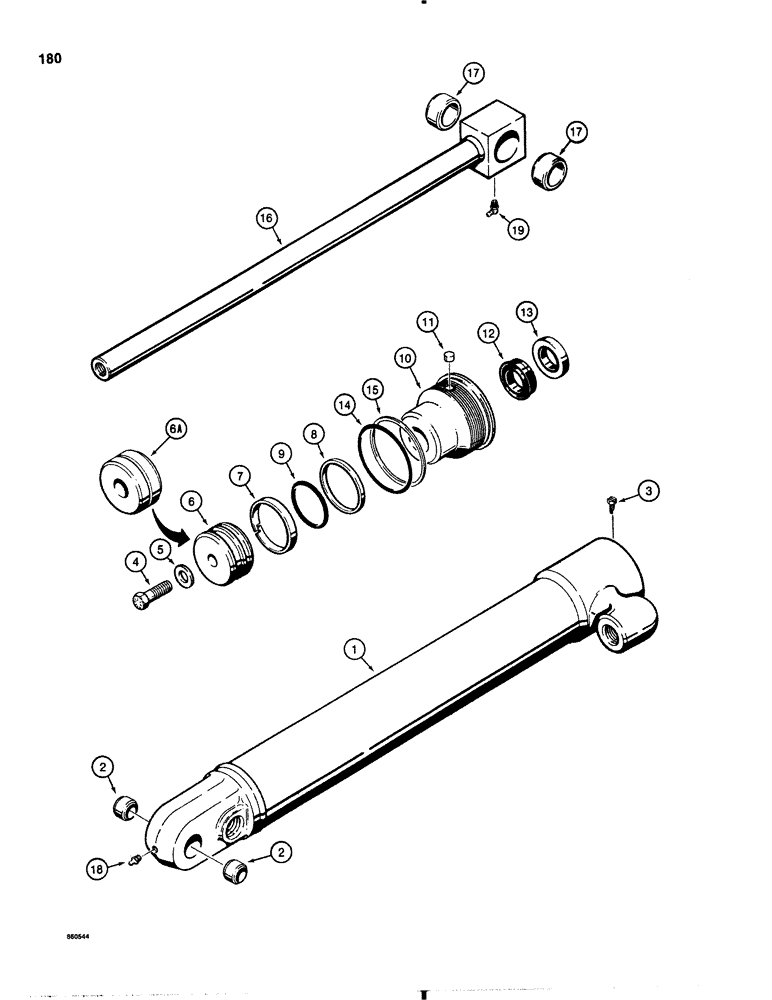

Запчасти Case 1845B (180) - G34926 LOADER BUCKET CYLINDER (08) - HYDRAULICS

*

G34926

CYLINDER

- loader bucket, 2-1/2", 64 mm ID x 21-1/4", 540 mm stroke, Inc: Ref. 1 - 19

2шт.

*

118156A1R

REMAN-HYD CYLINDER

1845B - CASE UNI-LOADER SKID STEER LOADER (NORTH AMERICA); Reman for new P/N G34926

2шт.

*

118156A1C

CORE-HYD CYLINDER

Return Number

1шт.

1

G34927

TUBE,2.5" DIA x 28.93" L

- cylinder, Inc: Ref. 2

1шт.

2

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

- tube eye

2шт.

3

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted head, No. 8 - 32 NC x 3/8", plated, if used

1шт.

4

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

5

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

6

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

- cylinder, double groove, for service use G104098 piston

1шт.

6a

G104098

PISTON

- cylinder, single groove, replaces G33138 piston

1шт.

7

G100714

RING

- wear, used with G33138 piston

1шт.

8

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

SEAL - piston

1шт.

Part of Seal Kit, P/N G109476

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

9

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

- piston

1шт.

Part of Seal Kit, P/N G109476

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

*

G103568

GLAND

ASSEMBLY - cylinder, Inc: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

11

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

12

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit, P/N G109476

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

13

D95141

WIPER SEAL

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G109476

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

14

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109476

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

15

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit, P/N G109476

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

16

G34932

PISTON ROD

ROD - piston, 1-1/4", 32 mm diameter, Inc: Ref. 17

1шт.

17

G35361

BUSHING,25.7mm ID x 31.82mm OD x 15.7mm L

- rod eye

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

*

G109476

GASKET KIT

KIT - seal, Includes: Ref. 8, 9, 12 - 15, plus a narrow seal, Ref 6 NOT Included.

1шт.

Part number D63672 subs to 222930A 1 hub assembly-axle the assembly includes 1 axle hub, 2 cup-bearings, and 1 grease fitting. PA-TSG 9-1-99

1шт.

*

and wear ring not used in this cylinder

1шт.
