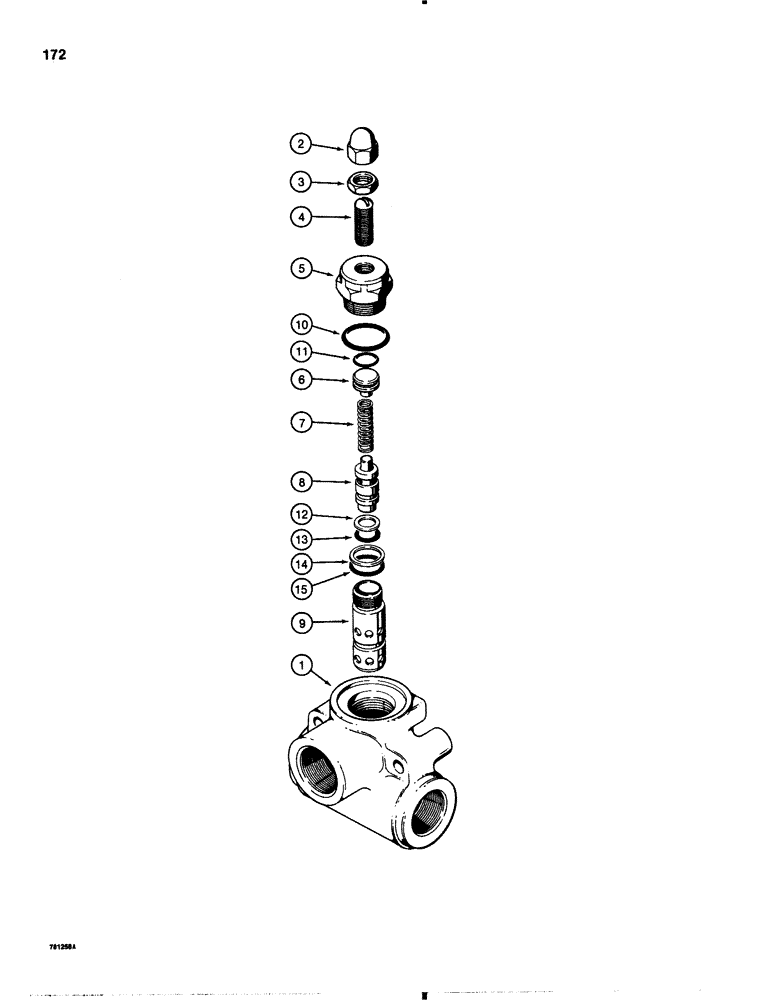

Запчасти Case 1845B (172) - D77897 RELIEF VALVE (08) - HYDRAULICS

D77897

VALVE

RELIEF VALVE ASSEMBLY loader clam circuit, Inc: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

2

129-526

CROWN NUT,Low, 3/8" - 24

DOME NUT, 3/8" - 24 NF

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex, jam, 3/8" - 24 NF, plated

1шт.

4

D55933

SCREW

ADJUSTING SCREW, 3/8" - 24 NF

1шт.

5

D55934

HOUSING

PLUG special

1шт.

6

D55932

PISTON

SEAT spring

1шт.

7

D55931

SPRING

poppet

1шт.

8

D55936

HOOK

POPPET relief valve

1шт.

9

D55935

HOUSING

BODY relief valve, lower

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

plug

1шт.

11

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

seat

1шт.

12

W12244

RING

BACKUP RING poppet O-ring

1шт.

13

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

14

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING body O-ring

1шт.

15

A65918

O-RING,0.551" ID x 0.691" OD

body

1шт.
