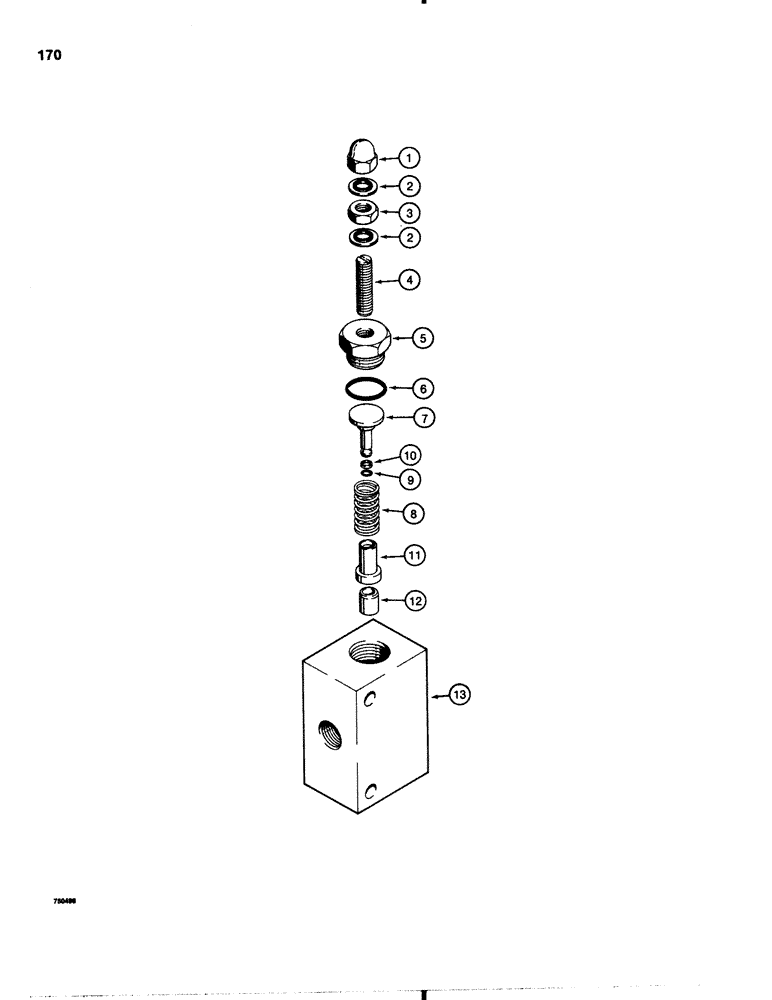

Запчасти Case 1845B (170) - D64493 RELIEF VALVE (08) - HYDRAULICS

D64493

VALVE

RELIEF VALVE ASSEMBLY loader bucket circuit, Inc: Ref. 1 - 13

1шт.

D66436

VALVE

RELIEF VALVE loader bucket circuit, Inc: Ref. 1 - 12

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT 5/16" - 24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER special, sealing

2шт.

3

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

4

176-292

SCREW,Sl Hdls, 5/16" - 24 x 1 1/4", Flat Pt

ADJUSTING SCREW, 5/16" - 24 NF x 1/4"

1шт.

5

D66437

CAP

PLUG special

1шт.

7

N7764

SPRING

GUIDE spring

1шт.

8

D37148

SPRING

poppet

1шт.

9

D40356

O-RING

spring guide

1шт.

10

D40357

RING

Teflon

1шт.

11

D37074

PLUNGER

POPPET relief valve

1шт.

12

D37075

SEAT

poppet

1шт.

13

NSS

NOT SOLD SEPARAT

BODY relief valve

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
