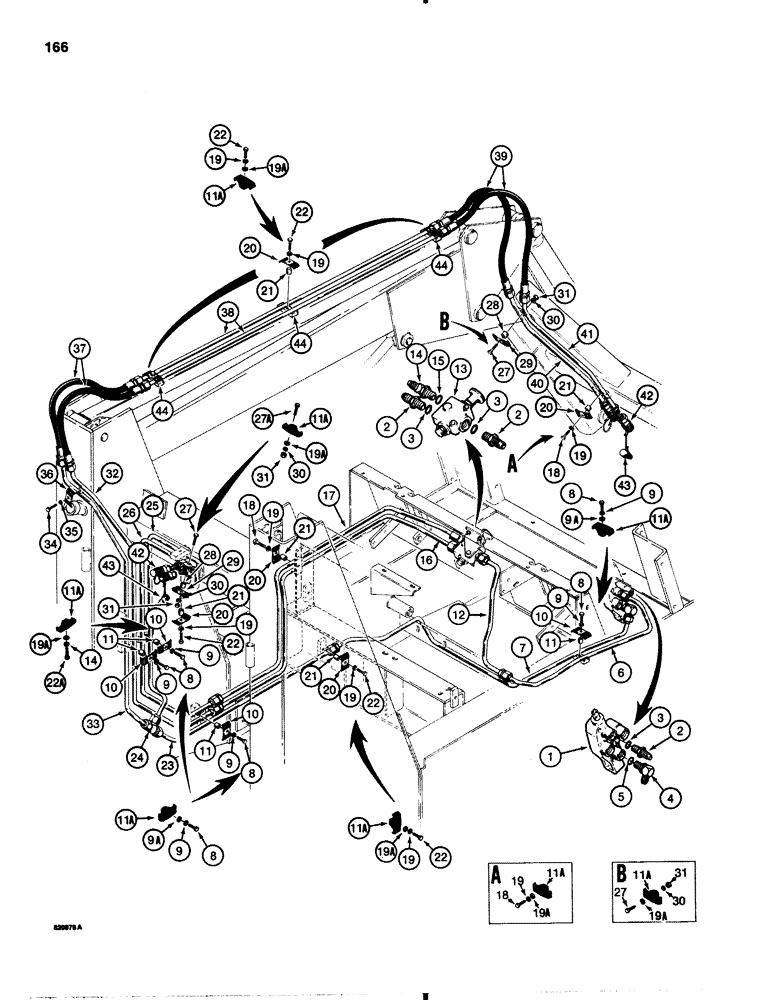

Запчасти Case 1845B (166) - AUXILIARY HYDRAULIC CIRCUIT, LOADER ARM AND REAR HYDRAULIC CIRCUIT WITH SELECTOR VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE auxiliary, parts list Figure: 174

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Inc: Ref. 5

1шт.

6

D122081

TUBE

auxiliary control valve, upper port

1шт.

7

D122083

TUBE

auxiliary control valve, lower port

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9a

195-525

WASHER,3/8", SAE

flat, 3/8", plated, if used

4шт.

10

D42504

CLAMP

tube, metal with plastic coated ends, if used

4шт.

11

D33551

BUSHING

SPACER clamp, used with D42504 clamp, if used

4шт.

11a

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

12шт.

12

D122738

TUBE right selector valve port

1шт.

13

REF

INSTRUCTION

VALVE selector, parts list Fig. 176

1шт.

14

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

45 degree, adjustable, Incl. Ref 15

1шт.

16

D69442

HYD TUBE,0.5" OD x 33.3, 15.75" L

TUBE lower left selector valve port

1шт.

17

D69444

TUBE,0.5" OD x 33.8, 16.57" L

upper left selector valve port

1шт.

18

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

7шт.

19a

195-103

WASHER,5/16"

flat, 3/8", plated, if used

8шт.

20

R17319

CLAMP

tube, metal with plastic coated ends, if used

7шт.

21

D33551

BUSHING

SPACER clamp, used with R17319 clamp, if used

7шт.

22

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

22a

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

1шт.

23

D70297

HYD TUBE,0.5" OD x 4.58, 33.15" L

TUBE connection to tee, lower port

1шт.

24

218-594

TEE,3/4"-16, 37 Degree

male

1шт.

25

D69446

TUBE,0.5" OD x 26.47, 20.6" L

inner, tee to upright crossmember

1шт.

26

D69452

HYD TUBE,0.5" OD x 37, 18.58" L

TUBE outer, to upright crossmember

1шт.

27

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

27a

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

If used Hex, 5/16"-18 x 1 3/4", G5

1шт.

28

D33551

BUSHING

SPACER clamp, used with R 17319 clamp, if used

2шт.

29

R17319

CLAMP

tube, metal with plastic coated ends, if used

2шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

31

9635082

NUT,5/16" - 18, Gr 5

2шт.

32

D69450

HYD TUBE,0.5" OD x 48.77, 22.35" L

TUBE inner, upright

1шт.

33

D69448

HYD TUBE,0.5" OD x 38.6, 5.95" L

TUBE outer, upright

1шт.

34

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

35

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

36

R17319

CLAMP

tube, metal with plastic coated ends

1шт.

37

D70824

HOSE

24" (610 mm) long, loader frame, rear

2шт.

38

D64344

TUBE

loader frame

2шт.

39

D61484

HOSE

29", 737 mm long, loader frame, front

2шт.

40

D69276

HYD TUBE,0.5" OD x 21.24, 5.55" L

TUBE outer, loader frame, front

1шт.

41

D69274

HYD TUBE,0.5" OD x 20.06, 5.43" L

TUBE inner, loader frame, front

1шт.

42

D60707

COUPLING, BREAK AWAY

QUICK DISCONNECT female

4шт.

43

D62402

PLUG

dust, quick disconnect

4шт.

44

D39023

BLOCK

clamp mounting

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
