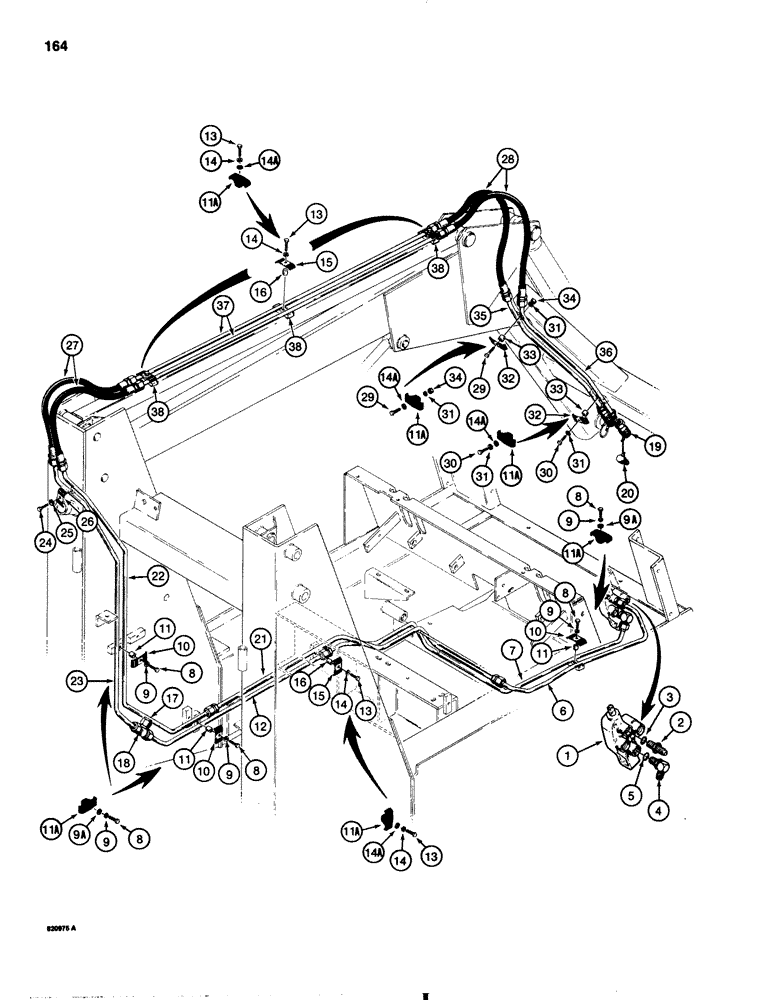

Запчасти Case 1845B (164) - AUXILIARY HYDRAULIC CIRCUIT, LOADER ARM HYDRAULIC CIRCUIT WITHOUT SELECTOR VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE auxiliary, parts list Figure: 174

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTER, HYD., , Adapter, Straight, Male, Incl. Ref 3 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Inc: Ref. 5

1шт.

6

D122081

TUBE

auxiliary control valve, upper port

1шт.

7

D122083

TUBE

auxiliary control valve, lower port

1шт.

8

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9a

195-525

WASHER,3/8", SAE

flat, 3/8", plated, if used

3шт.

10

D42504

CLAMP

tube, metal with plastic coated ends, if used

3шт.

11

D33551

BUSHING

SPACER clamp, used with D42504 clamp

3шт.

11a

D120679

CLAMP,Tube, 1/2"

tube, plastic, if used

9шт.

12

D70297

HYD TUBE,0.5" OD x 4.58, 33.15" L

TUBE connection to tee, lower port

1шт.

13

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

14a

195-103

WASHER,5/16"

flat, , plated, if used 5/16"

6шт.

15

R17319

CLAMP

tube, metal with plastic coated ends

4шт.

16

D33551

BUSHING

SPACER clamp, used with R17319 clamp

4шт.

17

218-755

CAP,37 Degree, 3/4"-16

Tee 37º, 3/4"-16

1шт.

18

218-594

TEE,3/4"-16, 37 Degree

male

1шт.

19

D60707

COUPLING, BREAK AWAY

QUICK DISCONNECT female

2шт.

20

D62402

PLUG

dust, quick disconnect

2шт.

21

D69436

HYD TUBE,0.5" OD x 35, 18.9" L

TUBE connection to upright, upper port

1шт.

22

D69450

HYD TUBE,0.5" OD x 48.77, 22.35" L

TUBE inner, upright

1шт.

23

D69448

HYD TUBE,0.5" OD x 38.6, 5.95" L

TUBE outer, upright

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

25

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

26

R17319

CLAMP

tube, metal with plastic coated ends

1шт.

27

D70824

HOSE

24", 610 mm long, loader frame, rear

2шт.

28

D61484

HOSE

29", 737 mm long, loader frame, front

2шт.

29

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

30

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

32

R17319

CLAMP

tube, metal with plastic coated ends, if used

2шт.

33

D33551

BUSHING

SPACER tube, used with R17319 clamp

2шт.

34

9635082

NUT,5/16" - 18, Gr 5

1шт.

35

D69276

HYD TUBE,0.5" OD x 21.24, 5.55" L

TUBE outer, loader frame, front

1шт.

36

D69274

HYD TUBE,0.5" OD x 20.06, 5.43" L

TUBE inner, loader frame, front

1шт.

37

D64344

TUBE

loader frame

2шт.

38

D39023

BLOCK

clamp mounting

3шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, adapter

1шт.

5

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
