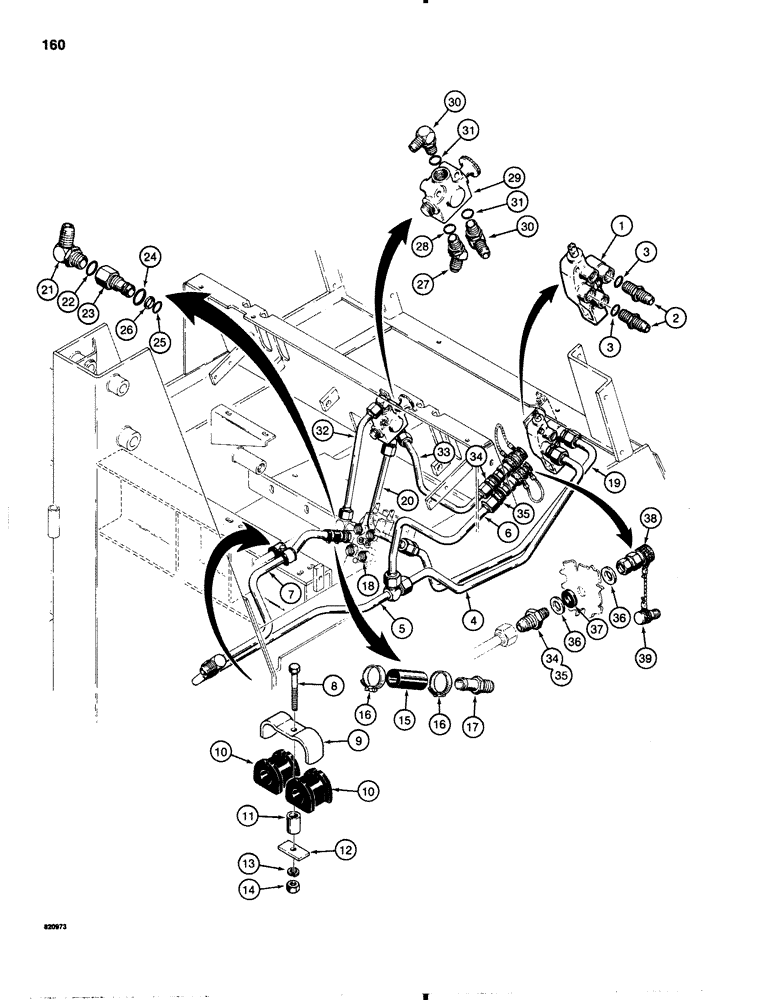

Запчасти Case 1845B (160) - AUXILIARY HYDRAULIC CIRCUIT, BASIC HYDRAULIC CIRCUIT WITH FRONT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE auxiliary, parts list Figure: 174

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Inc: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

4

D122087

TUBE

auxiliary control valve outlet

1шт.

5

D121140

TUBE

auxiliary control valve return

1шт.

6

D70264

HYD TUBE,0.75" OD x 9.9, 7.2" L

TUBE lower, to quick disconnect

1шт.

7

D72672

HYD TUBE,0.75" OD x 7.74, 21.38" L

TUBE loader control valve outlet

1шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

D74185

CLAMP

tube, double

1шт.

10

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube, rubber

2шт.

11

D76210

SPACER

clamp

1шт.

12

D76302

BLOCK

PLATE clamp mounting

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

REF

INSTRUCTION

HOSE, 3/4", 19 mm ID x 4-1/2", 114 mm long, cut from S118382 hose, see below

1шт.

16

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

17

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

BARB FITTING straight

1шт.

18

REF

INSTRUCTION

CONTROL VALVE loader, parts list Fig. 168

1шт.

19

D122085

TUBE

auxiliary control valve inlet

1шт.

20

D122091

TUBE ASSY.

TUBE lower rear port selector valve

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Inc: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

D61608

SLEEVE

ASSEMBLY power beyond, Inc: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large

1шт.

25

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

small

1шт.

26

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING sleeve

1шт.

27

218-5145

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

45 degree, adjustable, Inc: Ref. 28

1шт.

29

REF

INSTRUCTION

SELECTOR VALVE parts list Figure: 176

1шт.

30

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

90 degree, adjustable, Inc: Ref. 31

2шт.

32

D70270

TUBE,0.625" OD x 1.97, 10.88" L

to top port selector valve

1шт.

33

D70274

TUBE,0.625" OD x 3.52, 10.6" L

lower front port selector valve to quick disconnect

1шт.

34

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER straight, 5/8" tube, upper

1шт.

35

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER -straight, 3/4" tube, lower

1шт.

36

T40267

WASHER

special

4шт.

37

T42340

BUSHING

SPACER adapter

2шт.

38

T40265

COUPLING, BREAK AWAY

QUICK DISCONNECT female, includes F62075 O-ring

2шт.

Ref #38A - T41332 Male coupler

1шт.

39

T40274

CAP

PLUG dust, quick disconnect

2шт.

Ref #39A T40759 Dust Cap for Male Coupler

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
