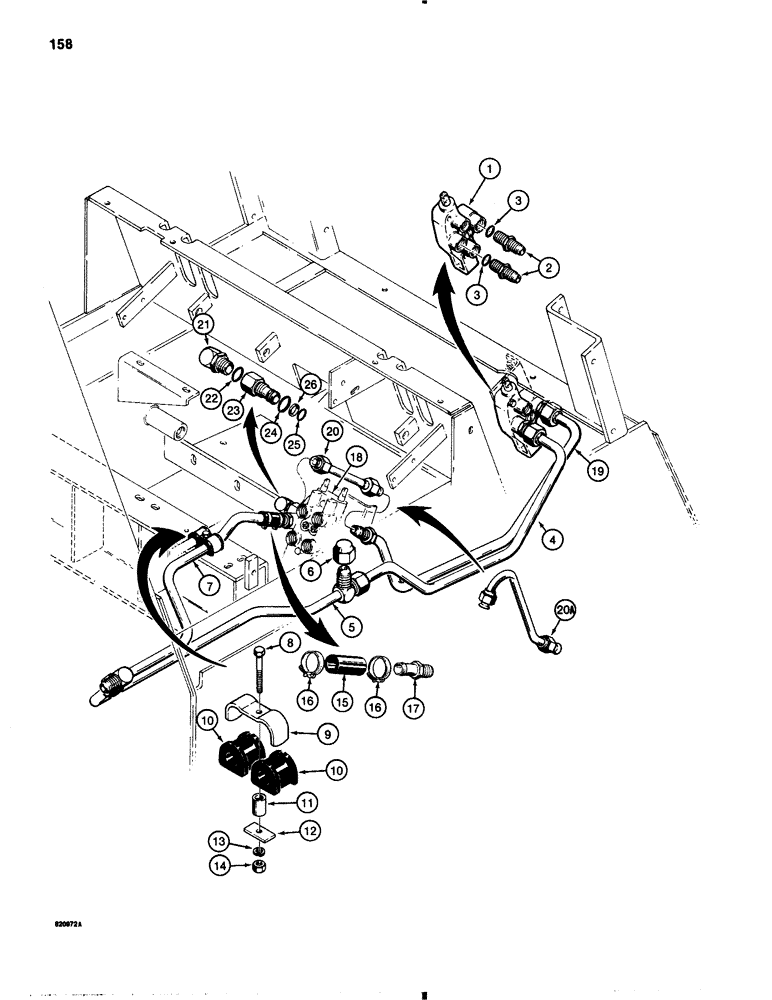

Запчасти Case 1845B (158) - AUXILIARY HYDRAULIC CIRCUIT, BASIC HYDRAULIC CIRCUIT WITHOUT FRONT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE auxiliary, parts list Figure: 174

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, male, Inc: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

adapter

1шт.

4

D122087

TUBE

auxiliary control valve outlet

1шт.

5

D121140

TUBE

auxiliary control valve return

1шт.

6

218-335

CAP,37 Degree, 1 1/16"-12

hex head

1шт.

7

D72672

HYD TUBE,0.75" OD x 7.74, 21.38" L

TUBE loader control valve outlet

1шт.

8

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

9

D74185

CLAMP

tube, double

1шт.

10

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube, rubber

2шт.

11

D76210

SPACER

clamp

1шт.

12

D76302

BLOCK

PLATE clamp mounting

1шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

15

D24728

HOSE

3/4", 19 mm ID x 4-1/2", 114 mm long, cut from S118382 hose, see below

1шт.

16

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

17

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

BARB FITTING straight

1шт.

18

REF

INSTRUCTION

CONTROL VALVE loader, parts list Figure: 168

1шт.

19

D122085

TUBE

auxiliary control valve inlet

1шт.

20

D122089

TUBE

power beyond, no longer available, order D126400 tube, item 20A

1шт.

20a

D126400

TUBE

power beyond, replaces D122089 tube, item 20

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degree, adjustable, Inc: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

D61608

SLEEVE

power beyond, Inc: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE power beyond

1шт.

24

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

large

1шт.

25

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

small

1шт.

26

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

BACKUP RING sleeve

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.
