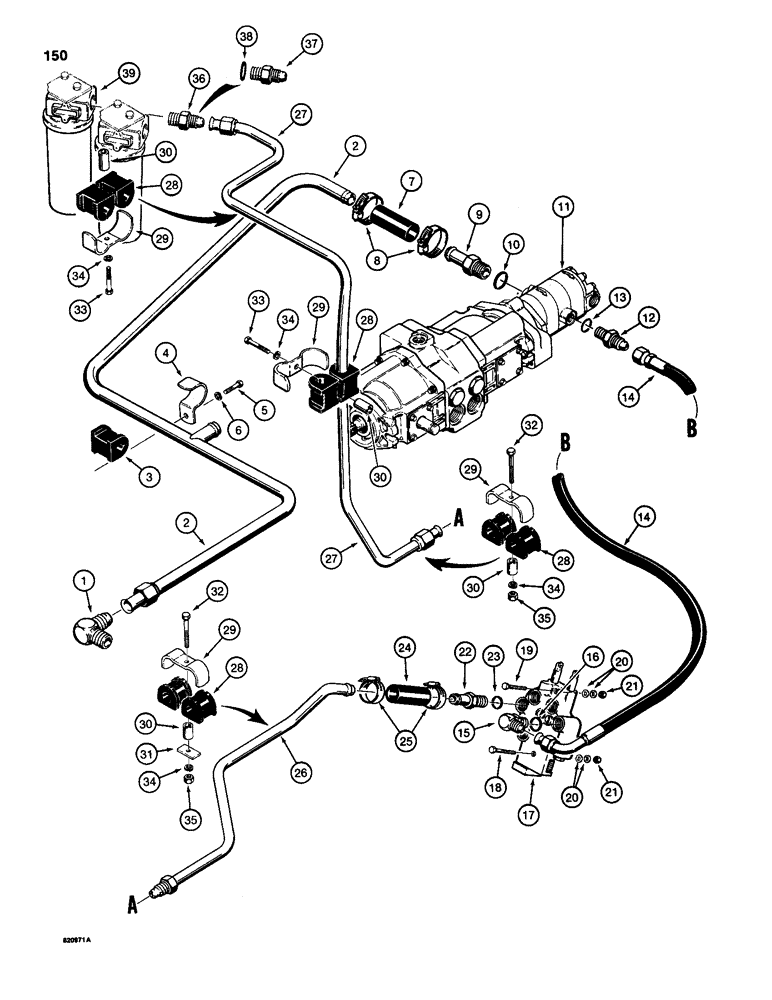

Запчасти Case 1845B (150) - BASIC EQUIPMENT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

90 degree, male

1шт.

2

D120860

TUBE ASSY.

TUBE from hydraulic reservoir

1шт.

3

D67297

BLOCK

INSULATOR tube

1шт.

4

D68846

CLAMP

tube

1шт.

5

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

REF

INSTRUCTION

HOSE 1" 25 mm ID x 4", 102 mm long, cut from S118383 hose, see below

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

9

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Stem, at pump, equipment circuit, Includes Ref. 10 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

10

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

stem fitting

1шт.

11

REF

INSTRUCTION

PUMP tandem, parts list Figs. 132-136 and mounting parts on Figure 126

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, male, Inc: Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

adapter

1шт.

14

D69011

HOSE

pump to loader control valve, 24", 610 mm long

1шт.

15

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90 degree, male, Inc: Ref. 16

1шт.

17

REF

INSTRUCTION

CONTROL VALVE loader, parts list Fig. 168

1шт.

18

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

19

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

20

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

21

131-665

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16" - 18 NC, plated

2шт.

22

217-398

FITTING,3/4" Hose Barb x 7/8" - 14 Male ORB

STEM FITTING valve outlet, Inc: Ref. 22

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

stem fitting

1шт.

24

REF

INSTRUCTION

HOSE 3/4", 19 mm ID x 4-1/2", 114 mm long, cut from S118382 hose, see below

1шт.

25

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

26

D69012

TUBE,0.75" OD x 22.4, 7.74" L

from loader control valve, not used with auxiliary hydraulic circuits, see Figs.158 and 160

1шт.

27

D120519

TUBE ASSY.

TUBE to hydraulic oil filter

1шт.

28

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

8шт.

29

D74185

CLAMP

tube

4шт.

30

D76210

SPACER

clamp

4шт.

31

D76302

BLOCK

PLATE tube clamp

1шт.

32

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

33

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

35

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

36

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER straight, used on models with D126666 filter, see Figure140 for filter identification

1шт.

37

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, used on models with D131330 filter, see Figure 140 for filter identification

1шт.

38

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

39

REF

INSTRUCTION

FILTER hydraulic oil, parts list Figure 140

2шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
