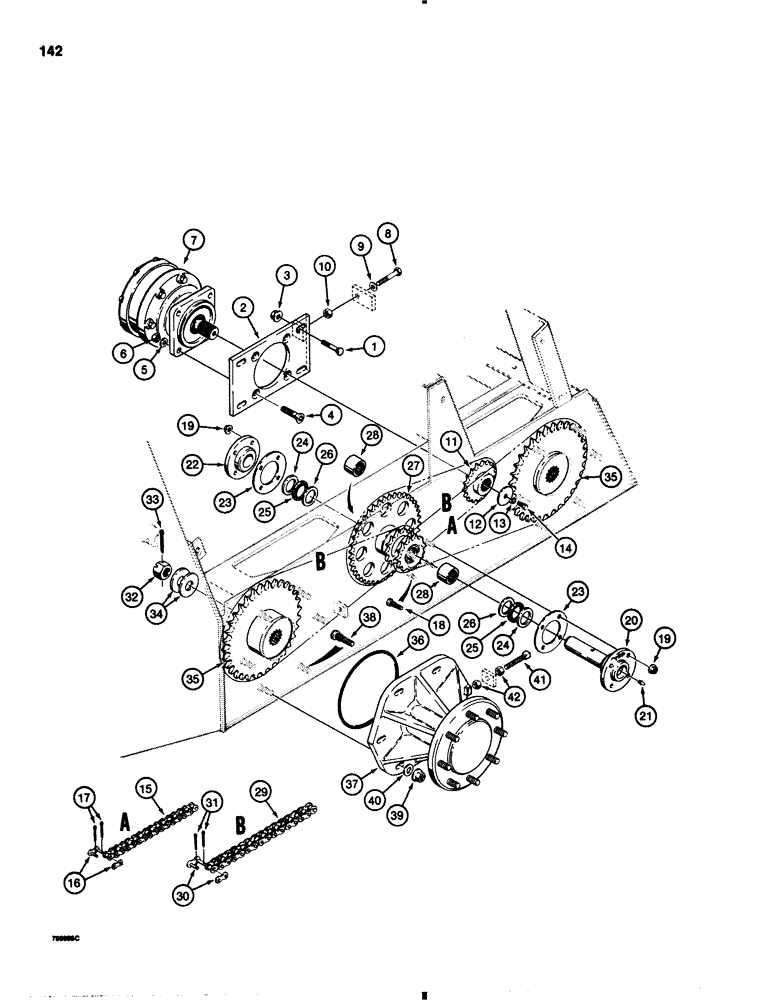

Запчасти Case 1845B (142) - DRIVE CHAIN AND GEARS (06) - POWER TRAIN

1

111-524

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

1/2" - 13 NC x 1-1/2", plated

8шт.

2

D65299

PLATE

planetary mounting

2шт.

3

131-919

FLANGE NUT,Flg, 1/2"-13, G5

hex, flange, 1/2" - 13 NC

8шт.

4

D125081

BOLT

flat head, socket, 1/2" - 13 NC x 2", special

8шт.

5

195-533

WASHER,1/2", SAE

flat, 1/2", plated

8шт.

6

131-1116

LOCK NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

8шт.

7

REF

INSTRUCTION

PLANETARY ASSEMBLY parts list Ref. 144

2шт.

8

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

2шт.

9

195-533

WASHER,1/2", SAE

flat, 1/2", plated

2шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

11

D83259

SPROCKET,17T Internal / 17T External

SPROCKET drive, 17 teeth

2шт.

12

T40254

WASHER

flat, special

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

D122981

CHAIN (CE)

CHAIN ASSEMBLY drive, No. 60, left-hand, Inc: Ref. 15 - 17

1шт.

D65364

CHAIN (CE)

CHAIN ASSEMBLY drive, No. 60, right-hand

1шт.

15

NSS

NOT SOLD SEPARAT

CHAIN left hand and right-hand

1шт.

16

D83132

LINK

ASSEMBLY master, Inc: Ref. 17

1шт.

17

N8246

PIN

COTTER PIN, 1/16" x 3/8", special

2шт.

18

D60070

STEP BOLT

BOLT press-in, special

16шт.

19

131-916

FLANGE NUT,Flg, 3/8"-16, G5

hex, flange, 3/8" - 16 NC

16шт.

20

D63780

MOUNTING PARTS

SHAFT ASSEMBLY cluster sprocket mounting, outer, Inc: Ref. 21

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING straight, 1/8" NPT

1шт.

22

D64954

MOUNTING PARTS

RETAINER shaft, cluster sprocket mounting, inner

2шт.

23

D64971

GASKET

cluster sprocket

4шт.

24

A50638

BEARING WASHER,38.15mm ID x 55.3mm OD x 0.81mm Thk

THRUST WASHER sprocket

4шт.

25

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

sprocket

4шт.

26

A54031

WASHER,38.15mm ID x 55.3mm OD x 2.41mm Thk

THRUST WASHER sprocket

4шт.

27

D76529

SPROCKET ASSY.

SPROCKET ASSEMBLY cluster, Inc: Ref. 28

2шт.

28

D64175

NEEDLE BEARING,Needle, 47.63mm ID x 38.1mm OD x 33.33mm W

sprocket

2шт.

D63143

CHAIN (CE)

CHAIN ASSEMBLY driven, No. 80, Inc: Ref. 29 - 31

4шт.

29

NSS

NOT SOLD SEPARAT

CHAIN driven

1шт.

30

D72824

LINK,Master

ASSEMBLY master, Inc: Ref. 31

1шт.

31

N8332

PIN

COTTER PIN, 3/32" x 1/2", special

2шт.

32

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

4шт.

33

132-342

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

4шт.

34

D37732

WASHER,26.99mm ID x 63.5mm OD x 3.57mm Thk

special

1шт.

35

D120108

DRIVE SPROCKET

SPROCKET driven

4шт.

36

70924143

O-RING,0.139" Thk x 8.234" ID, -267, Cl 5, 75 Duro

sprocket; Replaces A28319

4шт.

37

REF

INSTRUCTION

AXLE ASSEMBLY parts list Ref. 146

4шт.

38

E16592

WHEEL BOLT

BOLT press-in

24шт.

39

131-915

FLANGE NUT,Flg, 1/2"-20, G5

hex, flange, 1/2" - 20 NF

24шт.

40

D73296

WASHER,14.22mm ID x 31.75mm OD x 4.75mm Thk

hardened

24шт.

41

85-848

SET SCREW,Sq Hd, 1/2" - 13 x 3"

BOLT square head, cup point, 1/2" - 13 NC x 3"

4шт.

42

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.
