Запчасти Case 1845B (132) - TANDEM PUMP ASSEMBLY, RIGHT-HAND DRIVE PUMP (06) - POWER TRAIN

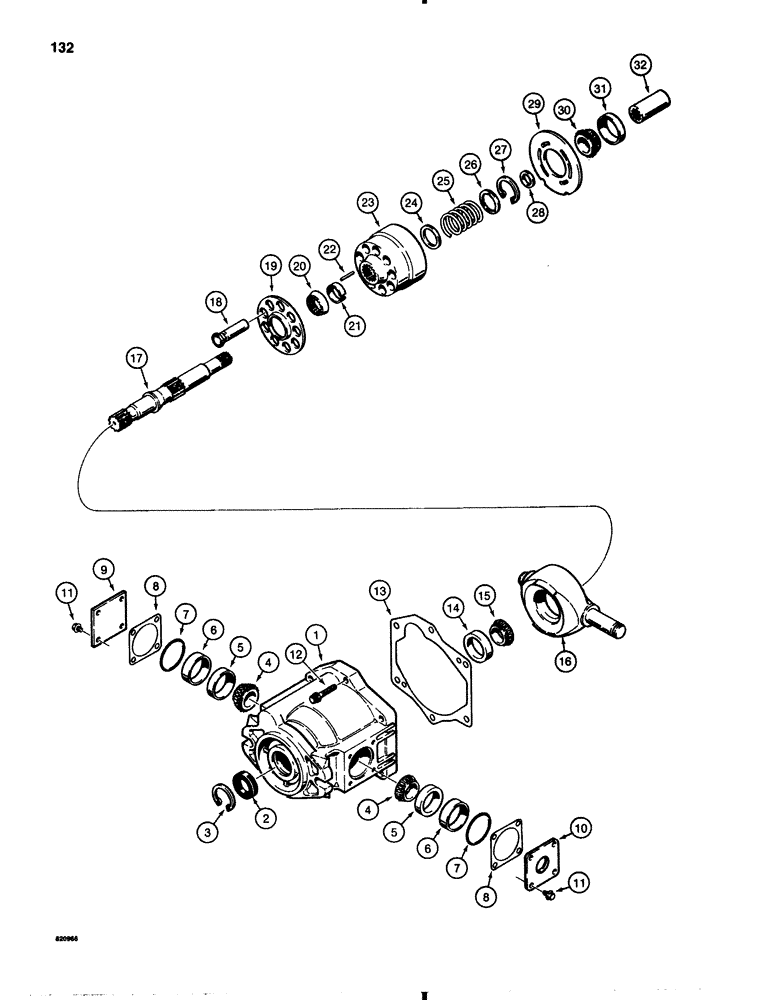

Схема запчастей Case 1845B - (132) - TANDEM PUMP ASSEMBLY, RIGHT-HAND DRIVE PUMP (06) - POWER TRAIN
3
12
5
17
32
18
23
8
7
14
15
4
25
28
30
13
2
19
26
4
10
5
27
20
22
31
11
29
7
11
6
21
6
16
9
1
8
24

Артикул

Название

Примечание

Количество

D82518

PUMP

ASSEMBLY tandem, Sperry-Vickers, right-hand and left-hand drive, also includes parts on Figures: 134 and 136

1шт.

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY right-hand drivedrive, Inc: Ref. 1 - 7

1шт.

1

N8293

HOUSING

pump

1шт.

2

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

shaft

1шт.

3

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , seal 1.75", Int, #175

1шт.

4

D53168

TAPERED BEARING

swing yoke

2шт.

5

D29267

BEARING CUP,1.98" OD x 0.42"

CUP tapered roller bearing

2шт.

6

A47286

SPACER

bearing

2шт.

7

S5730

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

cover

2шт.

A47287

KIT

yoke bearing shim, Inc: Ref. 8

2шт.

8

NSS

NOT SOLD SEPARAT

SHIM, 0.003", 0.076 mm thick, three in kit

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM, 0.005, 0.127 mm thick, two in kit

1шт.

8

NSS

NOT SOLD SEPARAT

SHIM, 0.010, 0.254 mm thick, two in kit

1шт.

9

A47288

COVER

housing, left-hand side

1шт.

10

N8294

COVER

AND SEAL right-hand side

1шт.

11

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

12

166-47

12 PT SCREW,Flg, 3/8" - 16 x 1 1/2", Gr 8

BOLT Ferry head, 3/8" - 16 NC x 1-1/2"

6шт.

13

A47280

GASKET,0.53mm Thk

housing

1шт.

14

D59595

TAPERED BEARING

CUP tapered roller bearing

1шт.

15

A31272

ROLLER BEARING,1" ID x 0.8125"

TAPERED ROLLER BEARING shaft to pump housing

1шт.

16

N8292

YOKE

swing

1шт.

17

N8297

SHAFT

pump

1шт.

18

A47334

PACKAGE

KIT piston, includes nine pistons and nine shoes

1шт.

19

A47292

PLATE

piston pump shoe

1шт.

20

A47293

WASHER

special, spherical

1шт.

21

A47297

SNAP RING,7.11mm Thk, Int

pin

1шт.

22

A47296

PIN

cylinder block

3шт.

23

N8290

BLOCK

cylinder

1шт.

24

A47299

WASHER

spring, inner

1шт.

25

N8289

SPRING

cylinder block

1шт.

26

A47300

SPRING WASHER

WASHER spring, outer

1шт.

27

NLS

NO LONGER SERVICED

Ring, Snap, , cylinder block 1.625", Int, #162

1шт.

28

A47303

KIT

bearing spacer, includes eleven spacers ranging in size from 0.139"-0.169, 3.53 mm - 4.29 mm in increments of 0.003, 0.08_mm

1шт.

29

N8287

PLATE

port

1шт.

30

FB14850

ROLLER BEARING

TAPERED ROLLER BEARING shaft to valve block

1шт.

31

FB14849

BEARING CUP

tapered roller bearing

1шт.

32

N8298

SPLINED COUPLING

COUPLING pump shaft

1шт.

Выбрано товаров: 37
