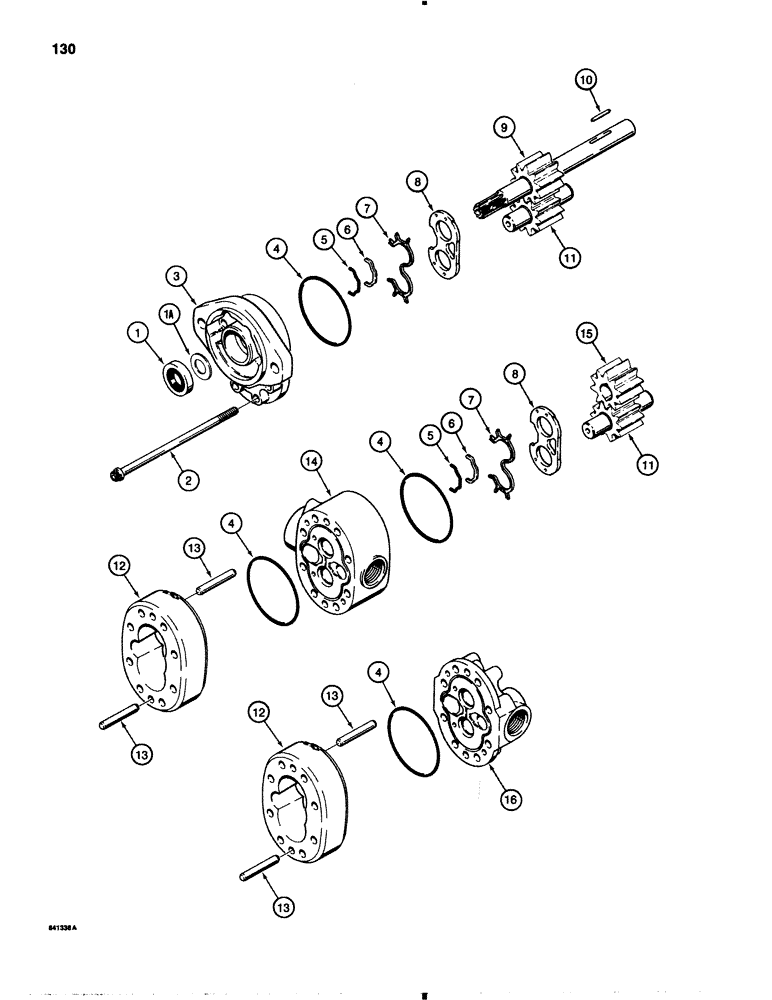

Запчасти Case 1845B (130) - D121753 DUAL PUMP (06) - POWER TRAIN

D121753

PUMP, HYDRAULIC

PUMP ASSEMBLY dual, Cessna No. 25389-RAA, Inc: Ref. 1 - 16

1шт.

Used after to P.I.N. 9880983 prior to P.I.N. 9880983 uses D82186 pump assembly

1шт.

1

H83733

SEAL

shaft

1шт.

Part of seal kit. P/N N8933

1шт.

1a

N13135

WASHER

special, shaft seal

1шт.

2

166-78

SCREW,Flg, 5/16" - 18 x 6 1/2", Gr 8

BOLT Ferry head, 5/16" - 18 NC x 6-1/2"

8шт.

3

N8932

COVER

shaft end

1шт.

4

H758599

O-RING,2.989" ID x 3.129" OD

pump body

4шт.

Part of seal kit, P/N N8933

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING molded

2шт.

Part of seal kit, P/N N8933

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL bearing

2шт.

Part of seal kit, P/N N8933

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET wear plate

2шт.

Part of seal kit, P/N N8933

1шт.

8

NSS

NOT SOLD SEPARAT

WEAR PLATE pump body

2шт.

Part of seal kit, P/N N8933

1шт.

9

N8931

GEAR-SET

DRIVE GEAR AND SHAFT pump

1шт.

10

N8934

KEY

drive gear shaft

1шт.

11

N8929

GEAR-SET

DRIVEN GEAR AND SHAFT pump

2шт.

N8927

BODY

HOUSING ASSEMBLY gear, Inc: Ref. 12 - 13

2шт.

12

NSS

NOT SOLD SEPARAT

HOUSING gear

1шт.

13

71120

VALVE

DOWEL PIN body

4шт.

14

N8930

PLATE ASSY.

BODY center

1шт.

15

N8928

GEAR

drive, port end

1шт.

16

N8926

PLATE

COVER port end

1шт.

N8933

PACKAGE, REPAIR

KIT seal, Includes: Ref. 1, 4, 5, 6, 7, 8

1шт.
