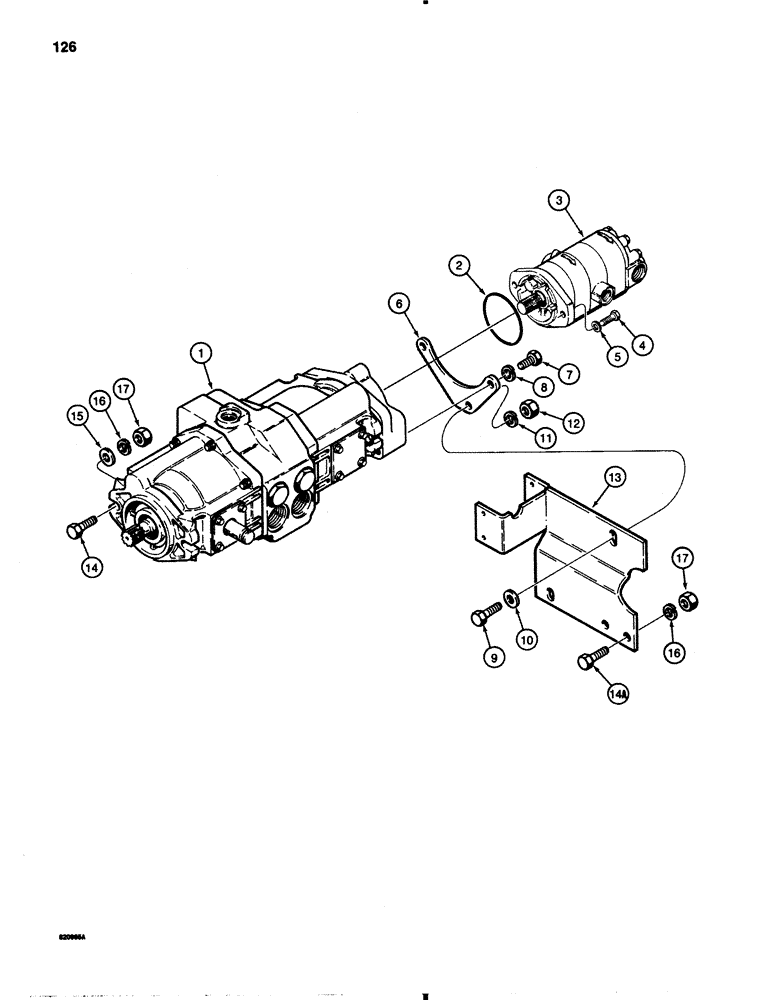

Запчасти Case 1845B (126) - TANDEM PUMP ASSEMBLY AND MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

PUMP ASSEMBLY tandem, right-hand and left-hand drive, parts list figs. 132 - 136

1шт.

2

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

tandem pump to dual pump

1шт.

3

REF

INSTRUCTION

PUMP dual, parts list figs 128 - 130

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

195-2028

WASHER,.391" x 5/8" x .065"

flat, 3/8", plated

2шт.

6

D124392

BRACKET

pump

1шт.

7

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

195-533

WASHER,1/2", SAE

flat, 1/2", plated

1шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

13

D93005

SUPPORT

pump

1шт.

14

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

14a

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

196-16

WASHER,.521" x 1" x .179", HDN

flat, 1/2", hardened, plated

2шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
