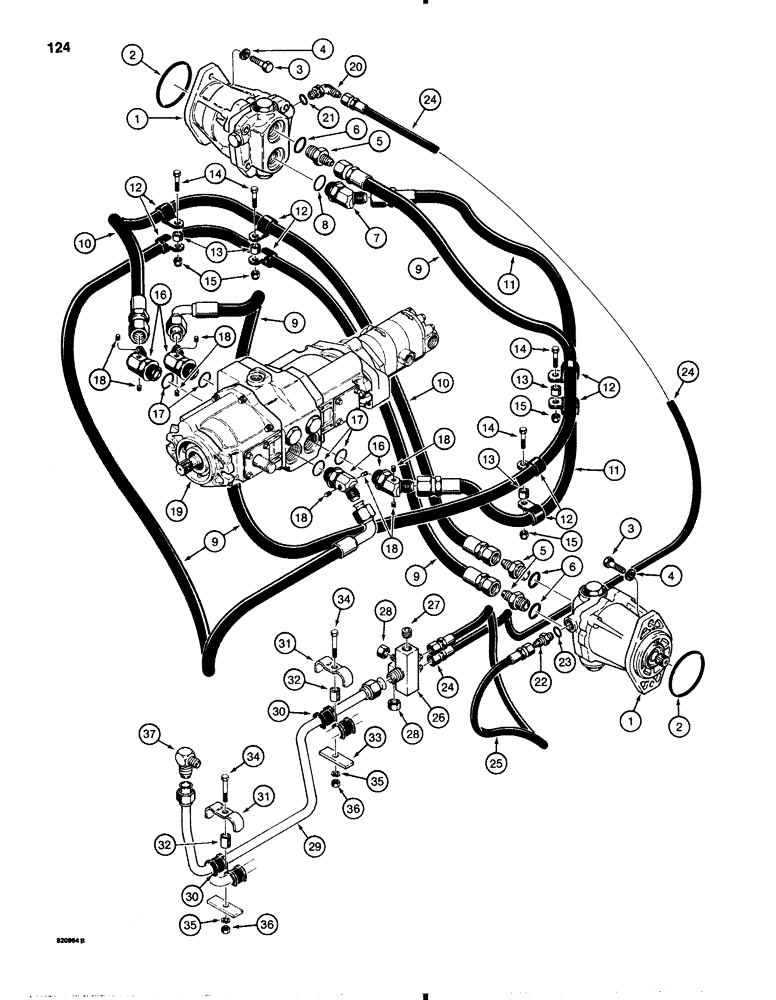

Запчасти Case 1845B (124) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, TANDEM PUMP TO DRIVE MOTORS (06) - POWER TRAIN

1

REF

INSTRUCTION

MOTOR drive, hydraulic, parts list Fig. 138

2шт.

2

S5748

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

motor to gear head

2шт.

3

113-480

BOLT,Locking, 1/2" - 13 x 1-1/2", Gr 5

hex head, self-locking, 1/2" - 13 NC x 1-1/4"

4шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

5

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, male, Inc: Ref. 6

3шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

adapter

1шт.

7

218-5144

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

45 degree, male, adjustable, Inc: Ref. 9

1шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

9

D93995

HOSE,19.05mm ID x 1350mm L, SAE 100R12

to right-hand motor, bottom port, and left-hand motor, top port, 53", 1350 mm long

2шт.

10

D92626

HOSE

to right-hand motor, top port, 29", 725 mm long

1шт.

11

D93996

HOSE

to left-hand motor, bottom port, 37", 950 mm long

1шт.

12

D41564

hose

8шт.

13

D76209

SPACER

clamp

4шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

131-666

LOCK NUT,3/8"-16, GB

NUT hex, self-locking, 3/8" - 16 NC, plated

4шт.

16

D94356

FITTING

ELBOW 45 degree, male, special, Inc: Ref. 17

4шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

hex socket head, 1/8" NPT

8шт.

19

REF

INSTRUCTION

PUMP tandem, parts list Fig. 132-136, mounting parts on fig. 126

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

90 degree, male

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

22

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, male 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow

1шт.

24

D93461

HOSE

left-hand motor drain, 37", 950 mm long

1шт.

25

D93462

HOSE

right-hand motor drain, 25", 625 mm long

1шт.

26

D73337

MANIFOLD

motor drain lines

1шт.

27

221-844

PLUG,Hex Soc, 1/2"-14

hex socket head, 1/2" NPT

1шт.

28

218-754

CAP,37 Degree, 9/16"-18

Unused manifold ports 37º, 9/16"-18

2шт.

29

D73750

TUBE,0.75" OD

manifold to tank

1шт.

30

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

2шт.

31

D74185

CLAMP

tube

2шт.

32

D76210

SPACER

clamp

2шт.

33

D76302

BLOCK

PLATE tube clamp

1шт.

34

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

36

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

37

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

90 degree, male, at tank

1шт.
