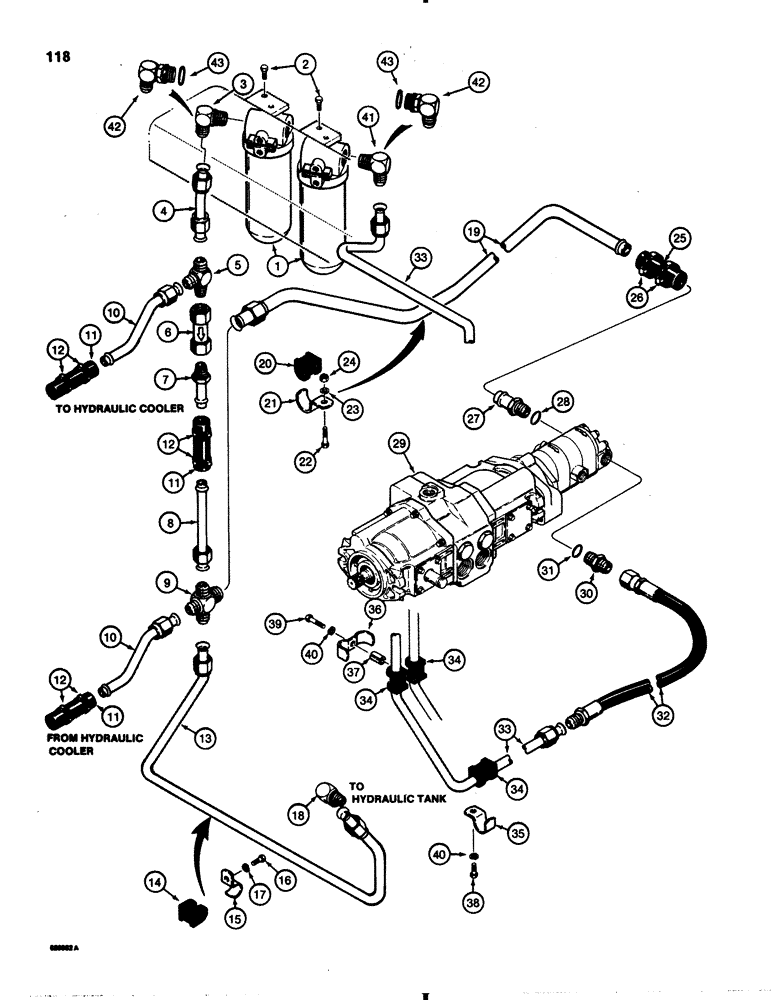

Запчасти Case 1845B (118) - HYDROSTATIC DRIVE HYDRAULIC CIRCUIT, FILTER TO COOLER, RESERVOIR, AND PUMP (06) - POWER TRAIN

1

REF

INSTRUCTION

FILTER hydraulic oil, parts list Figure 140

2шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 degree, male, used on models with D126666 filter, see Fig. 140 for filter identification, if used

1шт.

4

D120515

TUBE charge circuit outlet

1шт.

5

218-616

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Run

male, to oil cooler

1шт.

6

R27233

VALVE

BYPASS VALVE charge circuit

1шт.

7

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

STEM FITTING hose

1шт.

8

D69218

TUBE,0.75" OD x 8.5" L

bypass valve to cross

1шт.

9

D94500

TUBE,1.81, 1.78" L

CROSS male, cooler and bypass tubes

1шт.

10

D74996

TUBE oil cooler to cross 0.75" OD x 2.84, 8.3" L

2шт.

11

REF

INSTRUCTION

HOSE 3/4", 19 mm ID x 4-1/2", 114 mm long, cut from S118382 hose, see below

3шт.

12

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

6шт.

13

D70463

TUBE,0.75" OD x 10.45, 26.56" L

cross to reservoir

1шт.

14

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

1шт.

15

D74192

CLAMP

tube

1шт.

16

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

18

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

90 degree, male

1шт.

19

D122651

TUBE ASSY.

TUBE cross to pump, used on models with D82186 pump, see fig. 128 for pump identification

1шт.

19

D123843

TUBE ASSY.

TUBE cross to pump, used on models with D121753 pump, see page 130 for pump identification

1шт.

20

D67297

BLOCK

INSULATOR tube

1шт.

21

D68846

CLAMP

tube

1шт.

22

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

S118382

HOSE,0.75" ID x 240.00", SAE 100R4

0.75" ID x 240.00" Bulk, SAE 100R4

1шт.

25

REF

INSTRUCTION

HOSE 1" 25 mm ID x 4", 102 mm long, cut from S118383 hose, see below

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP hose

2шт.

27

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

STEM FITTING hose to pump, used on models with D82186 pump, see Fig. 128 for pump identification

1шт.

28

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

stem fitting, used with 217-390 stem fitting

1шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

stem fitting, used with 217-179 stem fitting

1шт.

29

REF

INSTRUCTION

PUMP tandem, parts list and mounting parts Figs. 128 or 130

1шт.

30

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, male, used on models with D82186 pump, see Fig. 128 for pump identification

1шт.

30

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, male, used on models with D121753 pump, see Fig. 130 for pump identification, Inc: Ref. 31

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

used with 218- 5064 adapter

1шт.

32

D92879

HOSE

from pump, charge circuit, 33", 850 mm long

1шт.

33

D120517

TUBE

, Serial Range: TUBE-filter

1шт.

34

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

3шт.

35

D74192

CLAMP

single tube

1шт.

36

D74185

CLAMP

double tube

1шт.

37

D76210

SPACER

double tube clamp

1шт.

38

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

39

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

40

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

41

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

90 degree, male, used on models with D126666 filter, see Fig. 140 for filter identification, if used

1шт.

42

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90 degree adjustable, used on models with D131330 filter, see Fig. 140 for filter identification, if used, Inc: Ref. 43

2шт.

43

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

elbow

1шт.

S118383

HOSE,1.00" ID x 192.00", SAE 100R3

1.00" ID x 192.00" Bulk, SAE 100R3

1шт.

31

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, used with 218- 5353 adapter

1шт.
