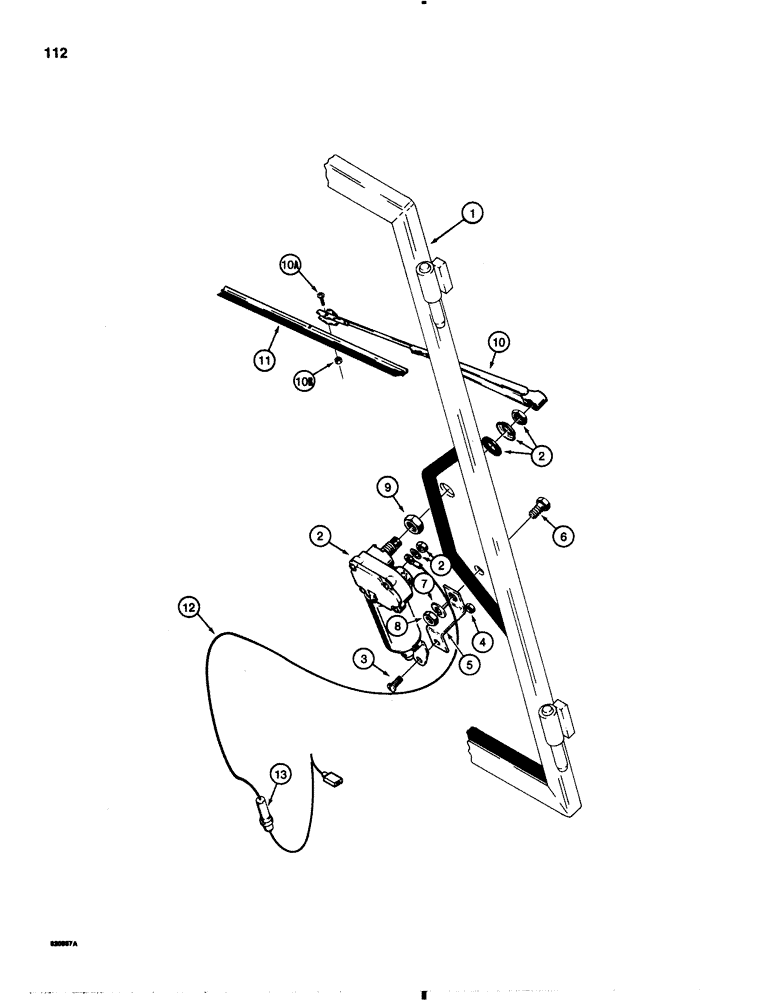

Запчасти Case 1845B (112) - WINDSHIELD WIPER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

DOOR operator's compartment, see Ref. 232

1шт.

2

F93758

WIPER MOTOR

MOTOR windshield wiper, includes mounting hardware

1шт.

Ref #2 - 3" Shaft

1шт.

3

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW pan head slotted, No. 10 - 24 NC x 1/2"

1шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT hex, special locking, No.10 - 24 NC

1шт.

5

F43463

SUPPORT

BRACKET windshield wiper motor

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

D74631

NUT

hex, 5/8" - 24 extra fine thread, special

1шт.

10

D78019

WIPER ARM

ARM windshield wiper, adjustable, Inc: Ref. 10A - 11

1шт.

10a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

MACHINE SCREW No. 5 - 40 NC x 1/2", plated, blade attaching

1шт.

10b

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

11

F43574

WIPER BLADE

BLADE windshield wiper, 14", 356 mm long

1шт.

12

D123750

WIRE includes fuse, Inc: Ref. 13

1шт.

13

223-9

FUSE,9 Amp, Type SFE

9 amp SFE

1шт.
