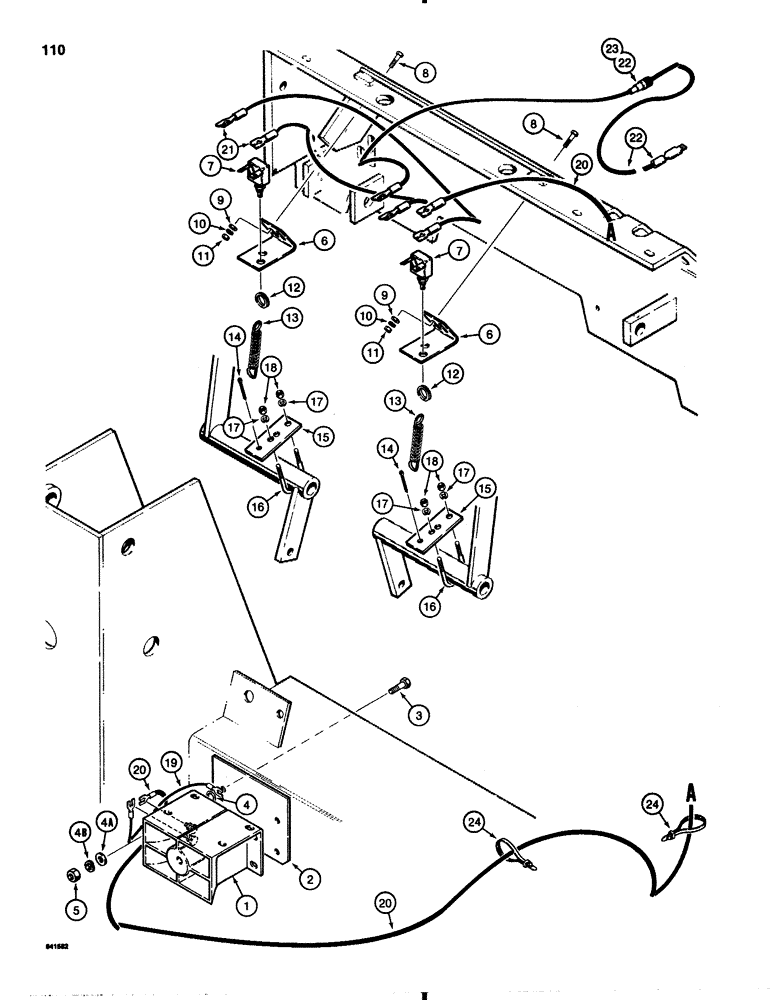

Запчасти Case 1845B (110) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

D121972

ALARM

BACKUP ALARM electric, rectangular type

1шт.

2

D123106

BRACKET

backup alarm mounting

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

4

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

4a

195-521

WASHER,5/16", SAE

flat, 5/16", plated

4шт.

4b

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

2шт.

6

D90629

BRACKET

switch mounting

2шт.

7

D86365

SWITCH

backup alarm

2шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

9

195-518

WASHER,1/4", SAE

flat, 1/4", plated

2шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

12

D86363

RING

spring

2шт.

13

D90627

SPRING

bar

2шт.

14

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), 3/16" x 3/4"

2шт.

15

D90628

BAR

spring mounting

2шт.

16

F60581

BOLT

U-BOLT bar spring mounting

2шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

19

D70125

ELECTRICAL WIRE

WIRE ground, alarm

1шт.

20

D86439

ELECTRICAL WIRE

WIRE switch to backup alarm

1шт.

21

D72939

ELECTRICAL WIRE

WIRE jumper, relay

2шт.

22

D123751

HOLDER

WIRE 20", 508 mm, includes fuse, Inc: Ref. 23

1шт.

23

223-15

FUSE,15 Amp, Type 3AG

15 amp AGC, service replacement for 14 amp fuse

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.
