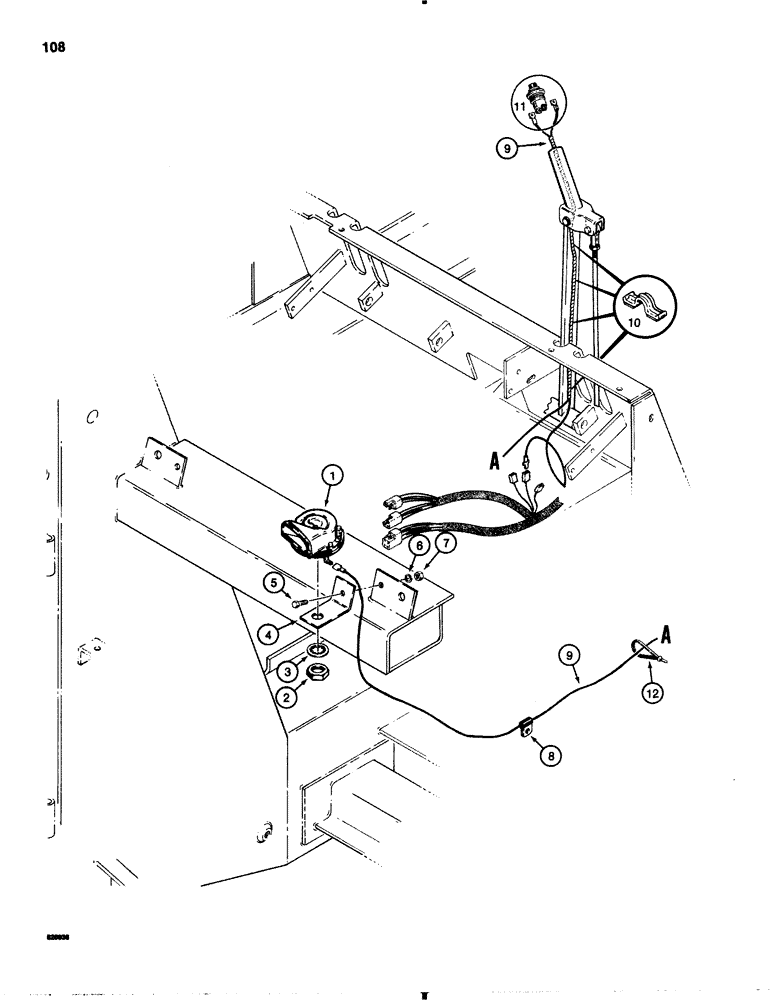

Запчасти Case 1845B (108) - HORN (04) - ELECTRICAL SYSTEMS

1

D123205

HORN

12 volt

1шт.

2

L30866

LOCK NUT

hex, 7/8" - 9 NC

1шт.

3

193-75

LOCK WASHER,7/8"

WASHER internal tooth lock, , plated 7/8"

1шт.

4

D70129

MOUNTING PARTS

BRACKET horn mounting

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

1шт.

8

D43839

CLAMP

wire, uses existing tube clamp hardware

1шт.

9

D123752

HARNESS

horn

1шт.

10

F93268

CLIP

wire

4шт.

11

D91440

SWITCH

BUTTON horn

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.
