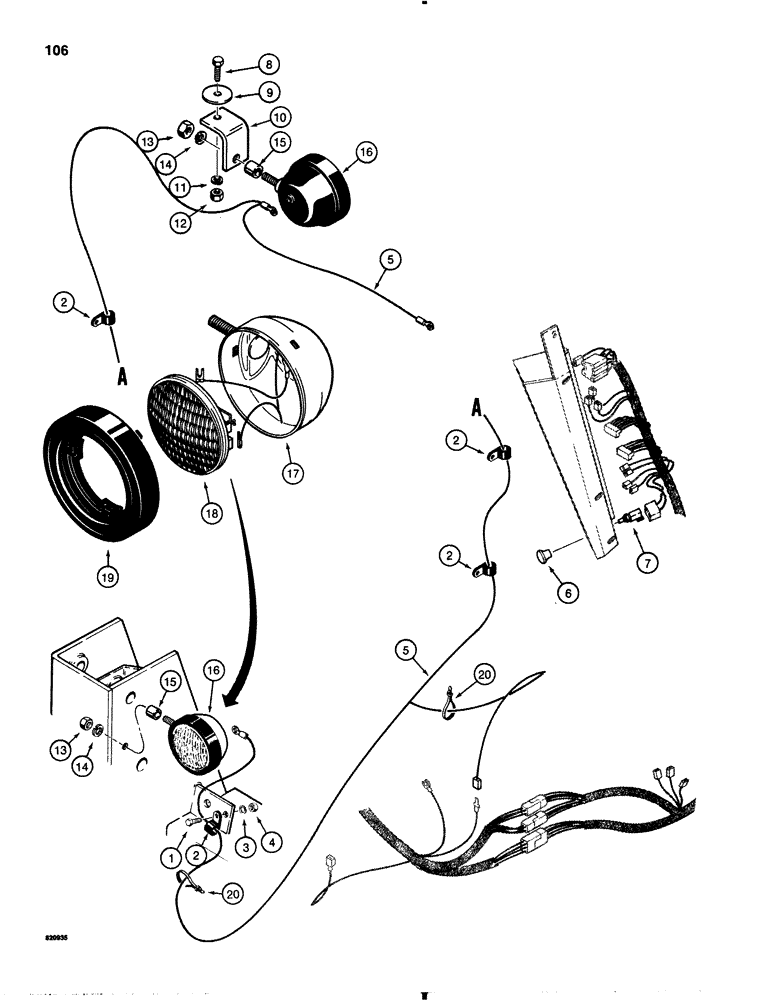

Запчасти Case 1845B (106) - LAMPS, FRONT AND REAR (04) - ELECTRICAL SYSTEMS

1

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

2

D43839

CLAMP

wire, P-style

4шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

4

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

D71560

HARNESS

lamp

1шт.

6

D95781

BUTTON

switch, lamp

1шт.

7

D74330

SWITCH

lamp

1шт.

8

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

9

T40254

WASHER

flat, special

2шт.

10

D70114

BRACKET

lamp mounting, front

2шт.

11

195-525

WASHER,3/8", SAE

lock, 3/8", plated

2шт.

12

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

14

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

15

Y214

BUSHING

SPACER lamp

3шт.

16

D70483

HEADLIGHT

LAMP ASSEMBLY 12 volt, Inc: Ref. 17 - 19

3шт.

17

NSS

NOT SOLD SEPARAT

BODY lamp

1шт.

18

A42294

SEALED BEAM UNIT

LAMP sealed beam, No. 4406

1шт.

19

A25213

RETAINER

rubber

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

1шт.
