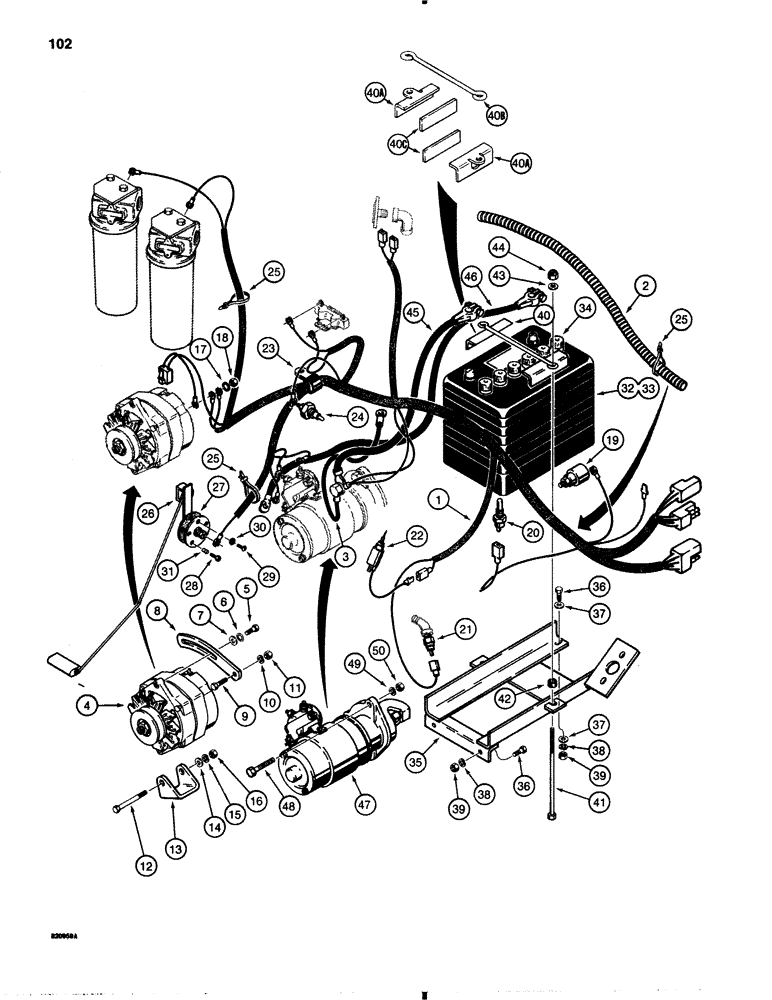

Запчасти Case 1845B (102) - ELECTRICAL SYSTEM, REAR HARNESS, BATTERY, ALTERNATOR, AND STARTER (04) - ELECTRICAL SYSTEMS

1

D123668

HARNESS

rear, gasoline models

1шт.

1

D123667

HARNESS

rear, diesel models

1шт.

2

D93236

CONDUIT

rear harness

1шт.

3

D43390

CABLE

ground, Serial Range: engine-chassis

1шт.

4

REF

INSTRUCTION

ALTERNATOR for correct assembly and components, see Figures: 90, 92 and 93A

1шт.

5

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

hex head, 8 mm - 1.25 x 25 mm 8.8, plated

1шт.

6

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

7

195-103

WASHER,5/16"

flat, , plated 5/16"

1шт.

8

D56005

STRAP

alternator adjusting, gasoline models, not shown

1шт.

8

A34705

ADJUSTER

STRAP alternator adjusting, diesel models

1шт.

9

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

12

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

13

REF

INSTRUCTION

BRACKET alternator mounting, see engine timing gear cover, Fig. 12 and 44

1шт.

14

195-525

WASHER,3/8", SAE

flat, 3/8", plated

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

17

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

18

825-1106

NUT,Hex, M6, Cl 8

hex, 6 mm - 1, plated

1шт.

19

D123864

SWITCH

pump charge pressure

1шт.

20

D70163

SWITCH,1/4" - 18 NPT, 230 Degrees F

transmission temperature

1шт.

21

REF

INSTRUCTION

SENDING UNIT engine oil pressure, see Fig. 22 and 46

1шт.

22

REF

INSTRUCTION

SOLENOID anti-dieseling, gasoline models, see Fig.10

1шт.

23

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

rear harness, uses throttle hardware, gasoline models

1шт.

24

REF

INSTRUCTION

SENDING UNIT water temperature, see Fig. 16 and 38

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, 15 inch, nylon

3шт.

26

D121930

FUEL GAUGE

SENDING UNIT fuel level

1шт.

27

A11822

GASKET

fuel level sending unit

1шт.

28

D75465

SCREW,#10 - 32 x 5/8"

special sealing, No. 10 - 32 NF x 5/8"

4шт.

29

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

MACHINE SCREW pan head slotted, No. 10 - 32 NF x 5/8"

1шт.

30

D83885

WASHER

copper

1шт.

31

D123827

NUT

INSERT sending unit

5шт.

32

T40362

BATTERY

12 volt, gasoline models, service replacement

1шт.

When replacing T40362 or BHC 30 battery, retain nonspill caps for service of new battery or order six new A60553 caps.

1шт.

33

BHC30

BATTERY, DRY

BATTERY 12 volt, diesel models, service replacement

1шт.

When replacing T40362 or BHC 30 battery, retain nonspill caps for service of new battery or order six new A60553 caps.

1шт.

34

A60553

CAP

battery, nonspill, if used

6шт.

When replacing T40362 or BHC 30 battery, retain nonspill caps for service of new battery or order six new A60553 caps.

1шт.

35

D122707

SUPPORT

battery

1шт.

36

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

37

195-525

WASHER,3/8", SAE

flat, 3/8", plated

8шт.

38

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

D55559

HOOK

BRACKET battery retaining, service with D128545 kit, see below

1шт.

40a

D125079

BRACKET

battery retaining

2шт.

Part of battery hold down kit, P/N D128545

1шт.

40b

D55561

RETAINER

ROD battery retaining bracket

1шт.

Part of battery hold down kit, P/N D128545

1шт.

40c

D66072

SEALING STRIP

insulating, battery retaining bracket set of two

1шт.

Part of battery hold down kit, P/N D128545

1шт.

41

115-109

BOLT

hex head, 5/16" - 18 NC x 8-1/2", grade 2

2шт.

42

G46096

RETAINER

bolt

2шт.

43

195-521

WASHER,5/16", SAE

flat, 5/16", plated

2шт.

44

131-4

LOCK NUT,5/16"-18, GB

NUT hex, self-locking, 5/16" - 18 NC

2шт.

45

D64166

CABLE

battery, negative

1шт.

46

D69127

CABLE

battery, positive

1шт.

47

REF

INSTRUCTION

STARTER for correct assembly and components, see Ref. 84 - 88

1шт.

48

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

49

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

50

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

D128545

CLAMP

KIT battery hold down, Includes: Ref. 40A, 40B, 40C

1шт.
