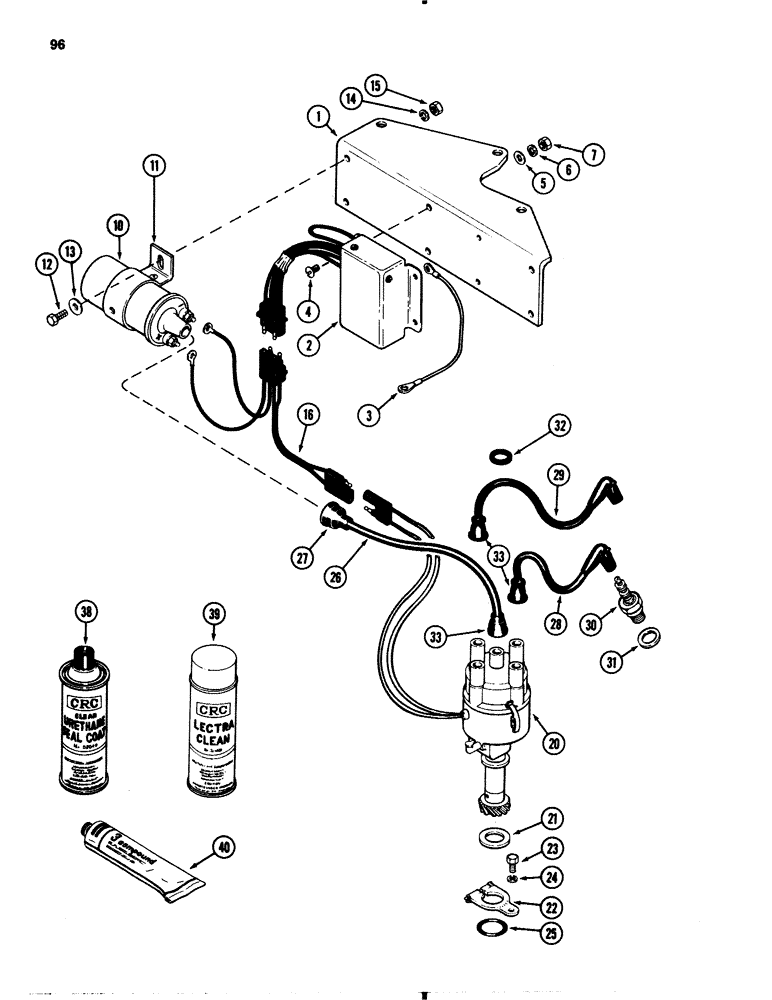

Запчасти Case 1845B (096) - INDUCTION DISCHARGE SYSTEM, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A51042

BRACKET electric pack and coil mounting, Retained by cylinder head cover nuts

1шт.

2

A137579

PACKAGE

PACK ASSEMBLY electronic

1шт.

3

A152140

WIRE ground, 10 inch long 254 mm

1шт.

4

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

pan head, No. 10 NC x 1/2 inch

4шт.

5

195-101

WASHER,3/16"

1/4 x 9/16 x 1/16 inch, 6 x 14 x 2 mm

2шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

7

129-17

NUT,Hex, #10 - 24

NUT hex, No. 10 NC

4шт.

10

A45466

COIL

ignition

1шт.

11

G46106

BRACKET

coil clamp and mounting

1шт.

12

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

13

195-102

WASHER,1/4"

5/16 x 3/4 x 1/16 inch, 8 x 19 x 2 mm

2шт.

14

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

15

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

16

A137580

HARNESS

ASSEMBLY Hi-tension wires

1шт.

20

REF

INSTRUCTION

DISTRIBUTOR ASSEMBLY, See Fig. 100

1шт.

21

A30080

THRUST WASHER

thrust, advance arm

1шт.

22

A29989

ARM

ASSEMBLY advance

1шт.

23

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

25

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1-1/16 x 1-5/16 x 1/8 inch, 27 x 33 x 3 mm

1шт.

26

A62857

ELECTRICAL WIRE

WIRE coil to distributor See Note

1шт.

27

G46803

BOOT

NIPPLE wire at coil

1шт.

28

A51509

CABLE

WIRE distributor to spark plugs, 12 inch long 305 mm See Note

2шт.

29

A51510

CABLE

WIRE distributor to spark plugs, 8-3/4 inch long 222 mm See Note

2шт.

30

G44840

SPARK PLUG

PLUG ASSEMBLY spark Standard Includes Ref. 31

4шт.

30

A150638

SPARK PLUG

PLUG ASSEMBLY spark Radio suppression

4шт.

31

G46839

GASKET

spark plug

1шт.

32

A30109

WASHER

HOLDER Hi-tension wires

1шт.

33

A29338

COVER

NIPPLE Hi-tension wires At distributor

5шт.

38

M20861

ADHESIVE

SPRAY seal coat, 16 oz. can 0.473 liter See Note

1шт.

39

B17400

CLEANER

electrical, 16 oz. can 0.473 liter See Note

1шт.

40

B17401

COMPOUND potting, 8 oz. tube 0.237 liter See Note

1шт.
