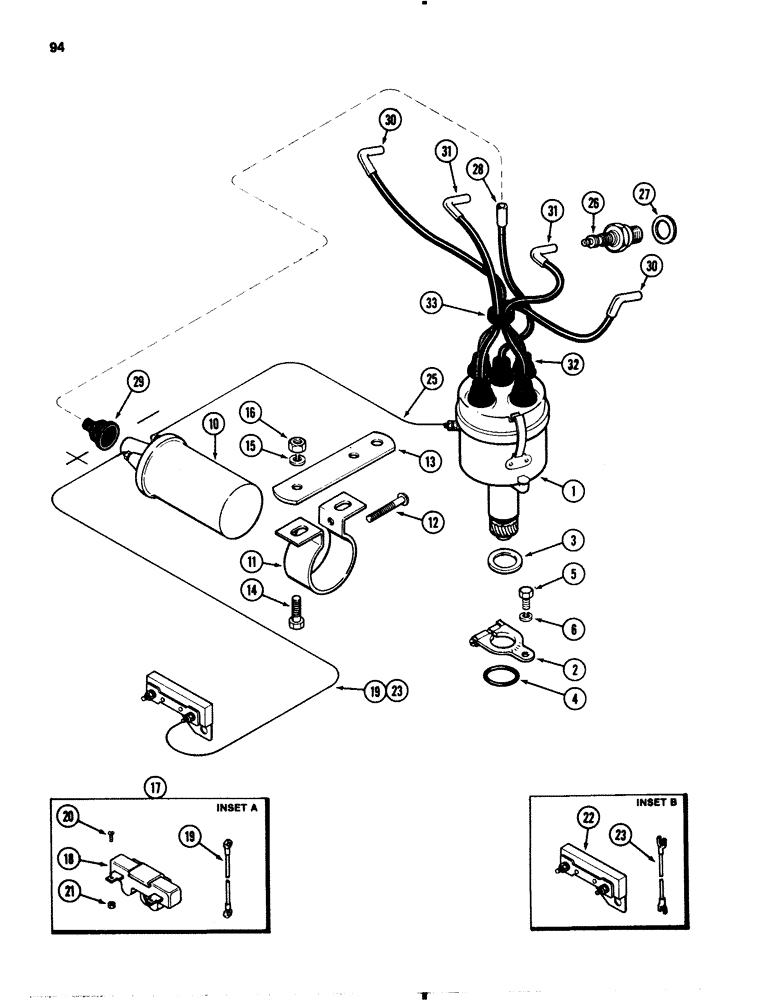

Запчасти Case 1845B (094) - STANDARD IGNITION SYSTEM, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

DISTRIBUTOR ASSEMBLY, See Figure: 98

1шт.

2

A29989

ARM

ASSEMBLY advance

1шт.

3

A30080

THRUST WASHER

thrust, advance arm

1шт.

4

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

1-1/16 x 1-5/16 x 1/8 inch, 27 x 33 x 3 mm

1шт.

5

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Advance arm Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

6

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

A40778

COIL

ASSEMBLY ignition 12 volt

1шт.

11

G46106

BRACKET

coil mounting

1шт.

12

187-540

SCREW coil bracket, round head, No. 10 x 1-1/2 inch

1шт.

13

G11705

BRACKET

STRAP coil support

1шт.

14

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

NSS

NOT SOLD SEPARAT

RESISTOR KIT coil Order Components, Inc: Ref. 18 - 21

1шт.

18

A143357

RESISTOR

coil ballast, Eltra No. 305013 See Ref. A

1шт.

19

A150039

ELECTRICAL WIRE

WIRE resistor to coil, 7 inch long with closed terminals 178 mm

1шт.

20

173-278

SCREW,Sl Rnd Hd, #6 - 32 x 3/8", Brass

round head, brass, No. 6-32 x 3/8 inch

2шт.

21

193-1003

NUT,Keps, w/LW,#6-32

hex, Keps, No. 6-32

2шт.

22

A143357

RESISTOR

coil ballast See Ref. B

1шт.

23

A38832

ELECTRICAL WIRE

WIRE resistor to coil, 7 inch long with spade terminals 178 mm

1шт.

25

G13085

ELECTRICAL WIRE

WIRE coil to distributor, 12 inch long 305 mm

1шт.

26

G44840

SPARK PLUG

PLUG ASSEMBLY spark Standard Includes: Ref. 27

4шт.

26

A150638

SPARK PLUG

PLUG ASSEMBLY spark Radio Suppression, Inc: Ref. 27

4шт.

27

G46839

GASKET

spark plug

1шт.

28

A62857

ELECTRICAL WIRE

WIRE coil to distributor, 12-1/2 inch long 318 mm

1шт.

29

G46803

BOOT

NIPPLE coil wire at coil

1шт.

30

A51509

CABLE

WIRE distributor to spark plugs, 12 inch long 305 mm

2шт.

31

A51510

CABLE

WIRE distributor to spark plugs, 8 - 3/4 inch long 222 mm

2шт.

32

A29338

COVER

NIPPLE Hi-tension wires at distributor

5шт.

33

A30109

WASHER

RING tie, Hi-tension wires

1шт.
