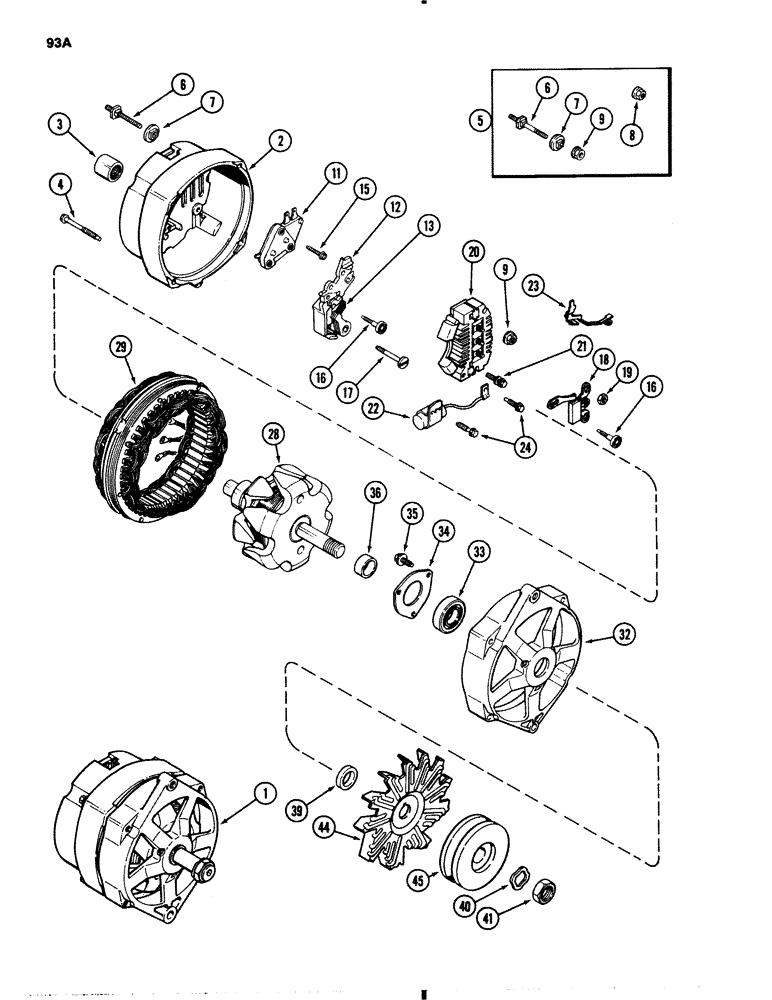

Запчасти Case 1845B (093A) - A46932 ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

A46932

ALTERNATOR

ALTERNATOR ASSEMBLY new service only 12 volt-63 ampere, Inc: Ref. 2 - 4, Delco No.1105422

1шт.

1

A47436

ALTERNATOR

ALTERNATOR ASSEMBLY remanufactured

1шт.

1

A47444

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

1

A47437

CORE-ALTERNATOR

Return Number use this number to return alternator core for credit, Inc: Ref. 1 - 41

1шт.

1

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator,12 volts 63 ampere

1шт.

1

103799A1C

CORE-ALTERNATOR

Return Number, 12 volts 63 ampere

1шт.

1

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

1

103801A1R

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

1

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

2

A47595

FRAME

FRAME ASSEMBLY slip ring end

1шт.

3

A47578

ROLLER BEARING,0.6694" ID x 0.937" OD x 0.73"

BEARING roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT hex head, through, No.10 - 24 x 1-3/4 inch With washer

4шт.

5

A47597

TERMINAL CONNECTOR

TERMINAL KIT battery, Inc: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY terminal

1шт.

11

A45213

REGULATOR

REGULATOR voltage

1шт.

12

A47042

HOLDER

HOLDER ASSEMBLY brush, Inc: Ref. 13

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH alternator Replaces: A47987

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW brush holder, insulated

2шт.

17

A47581

SCREW,#8 - 32 x 1.43"

SCREW brush holder attaching

1шт.

18

A48339

DIODE

DIODE trio

1шт.

19

129-16

NUT,#8-32

NUT, , Diode to rectifier bridge #8-32

3шт.

20

A46942

ELEC CONNECTOR

RECTIFIER BRIDGE alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge attaching

1шт.

22

A47734

CAPACITOR

CAPACITOR alternator

1шт.

23

A46931

TERMINAL CONNECTOR

TERMINAL relay

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor bracket and lead

2шт.

28

A46935

ROTOR

ROTOR ASSEMBLY alternator

1шт.

29

A46936

STATOR

STATOR ASSEMBLY alternator

1шт.

32

A46933

FRAME

FRAME drive end

1шт.

33

A65781

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING ball, drive end

1шт.

34

R15101

PLATE

PLATE bearing retaining

1шт.

35

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW bearing plate retaining

3шт.

36

A48261

COLLAR

COLLAR rotor shaft, inner

1шт.

39

A47580

COLLAR

COLLAR rotor shaft, outer

1шт.

40

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

41

A25546

NUT

NUT pulley and fan retaining

1шт.

44

A43384

FAN

FAN ventilating

1шт.

45

A51561

PULLEY

PULLEY drive

1шт.
