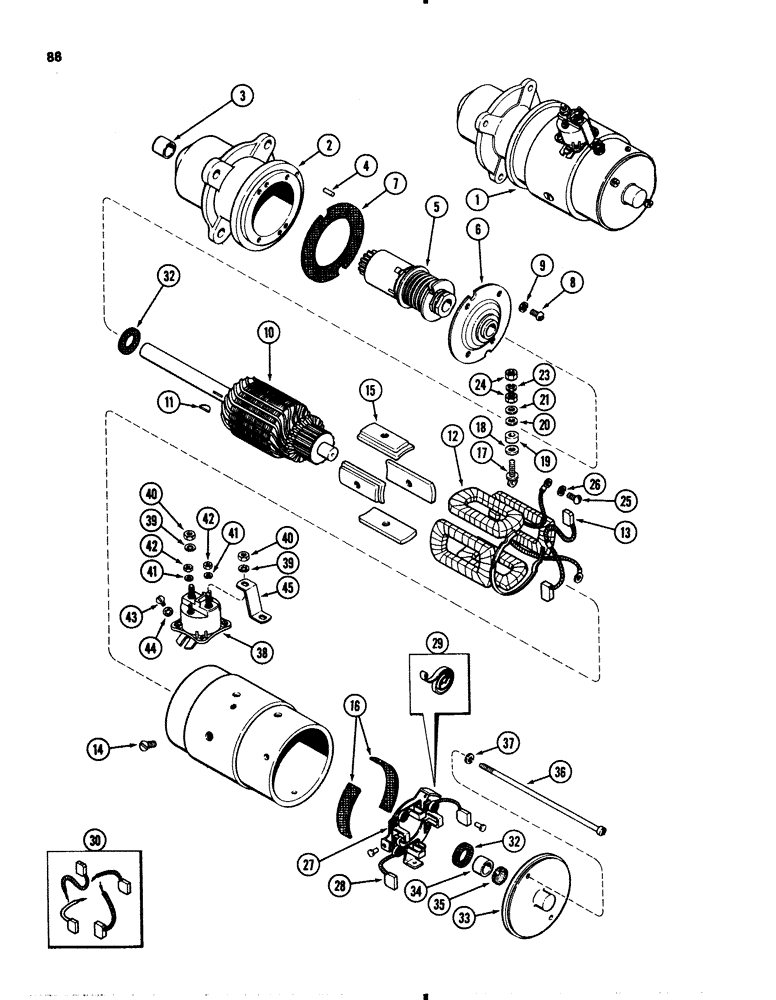

Запчасти Case 1845B (088) - D124795 STARTER, 159 SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A47462

REMAN-STARTER

STARTER ASSEMBLY engine, remanufactured

1шт.

1

A47463

CORE-STARTER

RETURN NUMBER use this number to return starter core for credit

1шт.

1

D124795

STARTING MOTOR

STARTER ASSEMBLY engine, new Prestolite, Inc: Ref. 2 - 44

1шт.

2

A25610

HOUSING

ASSEMBLY drive end, Inc: Ref. 3 - 4

1шт.

3

A25611

BEARING

armature shaft

1шт.

4

NSS

NOT SOLD SEPARAT

PIN locating

1шт.

5

A44997

DRIVE

ASSEMBLY starter

1шт.

6

A43257

BUSHING

PLATE ASSEMBLY intermediate bearing

1шт.

7

G46910

GASKET

bearing plate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

round head, No. 10-32 x 7/16 inch

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

A44996

ARMATURE

1шт.

11

126-112

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

12

A25604

PACKAGE

COIL ASSEMBLY field, Inc: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH coil Order Fig. 30

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW pole shoe

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

16

NSS

NOT SOLD SEPARAT

INSULATION coil

2шт.

A43654

LARGE PLATE

TERMINAL KIT field stud

1шт.

17

NSS

NOT SOLD SEPARAT

STUD field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER insulating inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING insulating

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER insulating, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER steel

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

182-545

SCREW,Slotted Pan Hd, #8-32 x 5/16"

pan head, No. 8-32 x 3/8 inch

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

1шт.

27

A25612

PLATE

ASSEMBLY brush carrier, Inc: Ref. 28 - 29

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH starter Order Fig. 30

2шт.

29

A40275

SPRING

KIT brush Set of 4

1шт.

30

A25603

BRUSH SET

Set of 4

1шт.

A40277

KIT

thrust washer, Inc: Ref. 34 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER, 1/32 inch, 0.79 mm

4шт.

32

NSS

NOT SOLD SEPARAT

WASHER, 3/64 inch, 1.19 mm

4шт.

33

A40274

HEAD

ASSEMBLY commutator end

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

FELT oiler

1шт.

36

A25601

SCREW

through

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

A48923

SOLENOID

ASSEMBLY

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

40

129-122

NUT,5/16"-24, G5

2шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

round head, No. 10-32 x 1/4 inch

2шт.

44

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

A48922

CONNECTOR, ELEC

CONNECTOR, Serial Range: solenoid-field

1шт.
