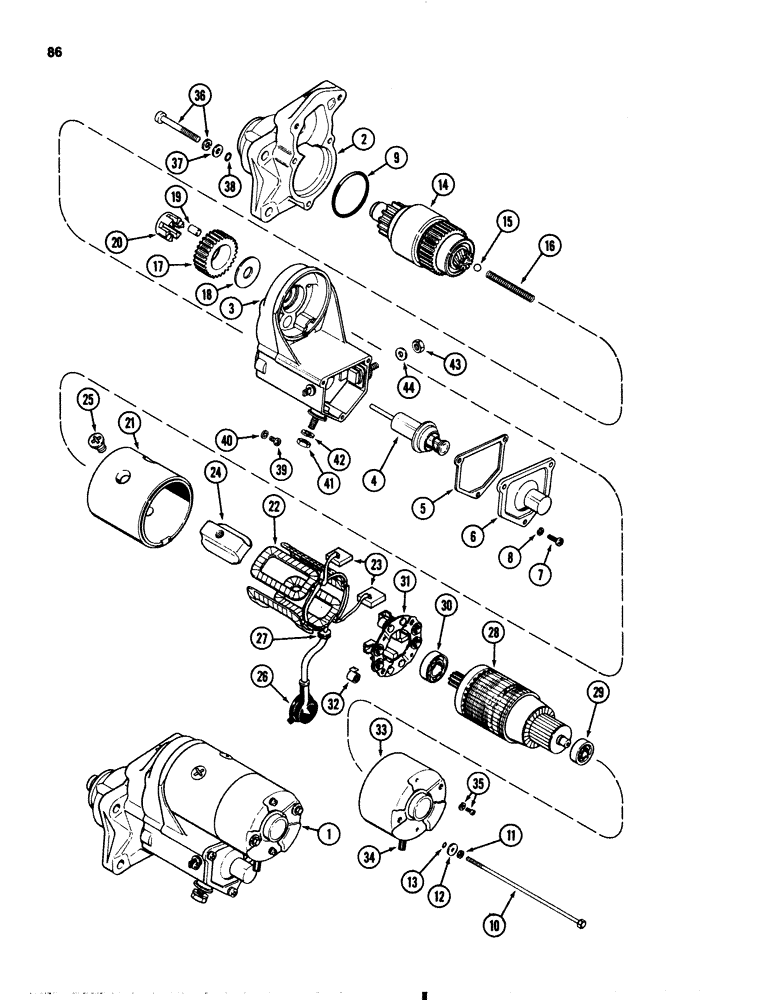

Запчасти Case 1845B (086) - R39341 STARTER, 188 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

R39341

STARTING MOTOR

STARTER ASSEMBLY Nippondenso No. 028000-5880, Inc: Refs. 2 - 44

1шт.

1

87297364

REMAN-STARTER

Starter

1шт.

1

87297365

CORE-STARTER

Return Part Number

1шт.

1

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

1

104451A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104451A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

2

A47227

HOUSING

HOUSING drive end

1шт.

3

A47228

SWITCH

SWITCH ASSEMBLY magnetic, Inc: Refs. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET solenoid cover

1шт.

6

NSS

NOT SOLD SEPARAT

COVER solenoid

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW, Serial Range: cover-switch

3шт.

8

NSS

NOT SOLD SEPARAT

WASHER cover screw

3шт.

9

A47229

O-RING,2.4mm Thk x 47.2mm ID

O-RING 1-7/8 x 2 x 3/32 inch 48 x 51 x 2 mm

1шт.

A47243

BOLT

BOLT ASSEMBLY through, Inc: Refs. 11 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT through

1шт.

11

892-1106

LOCK WASHER,M6

LOCK WASHER, (1/4") M6

1шт.

12

195-516

WASHER,#12

WASHER 1/4 x 9/16 x 1/16 inch 6 x 14 x 2 mm

1шт.

13

A47127

O-RING

O-RING, 3/16 x 5/16 x 1/16 inch, 5 x 8 x 2 mm

1шт.

14

A47231

CLUTCH

CLUTCH ASSEMBLY drive

1шт.

15

211-10

BALL

BALL thrust, 3/8 inch diameter, steel 10 mm

1шт.

16

A47232

SPRING

SPRING clutch drive, 2-13/16 inch free length 17 mm

1шт.

17

A47233

GEAR

PINION idler

1шт.

18

A47234

WASHER

WASHER thrust, idler pinion

1шт.

19

A47235

ROLLER BEARING

ROLLER idler pinion bearing

6шт.

20

A47236

RETAINER

RETAINER roller bearings

1шт.

A47240

HOUSING

HOUSING ASSEMBLY with coil and brushes, Inc: Refs. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING starter

1шт.

22

NSS

NOT SOLD SEPARAT

COIL field

1шт.

23

NSS

NOT SOLD SEPARAT

BRUSHES starter

2шт.

24

NSS

NOT SOLD SEPARAT

SHOE pole

4шт.

25

NSS

NOT SOLD SEPARAT

SCREW pole shoes

4шт.

26

NSS

NOT SOLD SEPARAT

BOOT magnetic switch terminal

1шт.

27

A47241

PLATE

PLATE lock

1шт.

28

A47242

ARMATURE

ARMATURE ASSEMBLY starter, Inc: Refs. 29 - 30

1шт.

29

A47248

BALL BEARING

BEARING commutator end, 3/8 x 1-13/16 x 3/8 inch, 10 x 46 x 10 mm

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING drive end, 11/16 x 1-3/8 x 3/8 inch, 17 x 35 x 10 mm

1шт.

31

A47239

HOLDER

HOLDER ASSEMBLY brush Includes 2 brushes, Inc: Ref. 32

1шт.

32

A47249

SPRING

SPRING brush tension

4шт.

33

A47237

FRAME

FRAME commutator end

1шт.

34

A47238

COVER

COVER end frame

1шт.

35

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY brush, Serial Range: holder-cover

2шт.

A47230

BOLT

BOLT ASSEMBLY commutator end cover to drive end housing, Inc: Refs. 36 - 38

3шт.

36

NSS

NOT SOLD SEPARAT

BOLT with lockwasher

1шт.

37

195-516

WASHER,#12

WASHER, 1/4 x 9/16 x 1/16 inch, 6 x 14 x 2 mm

1шт.

38

A47130

O-RING

O-RING, 3/16 x 5/16 x 1/16 inch, 5 x 8 x 2 mm

1шт.

39

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

SCREW pan head, No. 8-32 x 3/8 inch

1шт.

40

193-91

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

1шт.

41

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Battery terminal Jam, 3/8"-16, G5

1шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

825-1110

NUT,M10, Cl 8

NUT, , Field coil terminal M10, Cl 8

1шт.

44

A10454

WAVE WASHER

WASHER field coil terminal

1шт.
