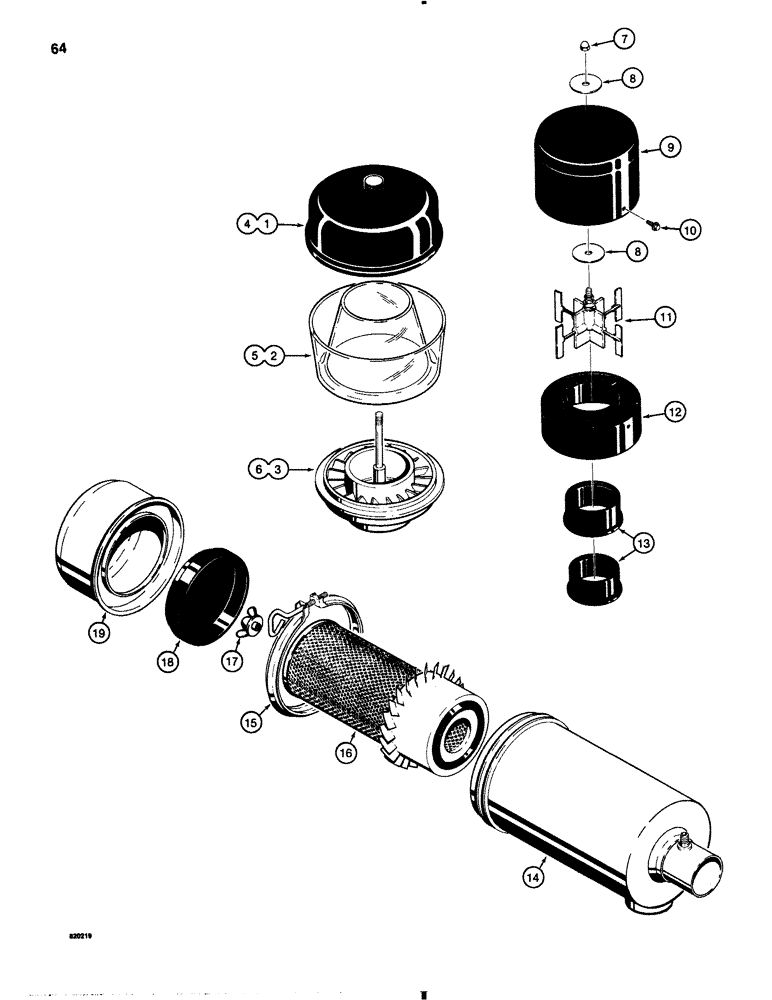

Запчасти Case 1845B (064) - PRECLEANERS AND AIR CLEANER (02) - ENGINE

A64589

PRECLEANER

ASSEMBLY Donaldson, diesel models, Inc: Ref. 1 - 3

1шт.

1

73187

COVER

CAP precleaner

1шт.

2

365413R1

BOWL

precleaner

1шт.

3

NSS

NOT SOLD SEPARAT

BASE precleaner

1шт.

NSS

NOT SOLD SEPARAT

PRECLEANER ASSEMBLY Donaldson, gasoline models, Inc: Ref. 4 - 6

1шт.

4

D30676

COVER

CAP precleaner

1шт.

5

D30675

BODY

BOWL precleaner

1шт.

6

D30677

SLEEVE

BASE precleaner

1шт.

D82128

PRECLEANER

ASSEMBLY Sureco, turbo, gasoline or diesel models, Inc: Ref. 7 - 13

1шт.

7

129-888

CROWN NUT,Crown, 1/4"-28

DOME NUT, 1/4" - 28 NF

1шт.

8

195-2016

WASHER

flat, 1/4", special

2шт.

9

NSS

NOT SOLD SEPARAT

COVER precleaner

1шт.

10

187-1095

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW self-tapping, No 8 x 1/2"

3шт.

11

N6640

ROTOR

precleaner

1шт.

12

NSS

NOT SOLD SEPARAT

BODY precleaner

1шт.

13

N6641

ADAPTER

precleaner to air cleaner

2шт.

D64003

CLEANER

AIR CLEANER ASSEMBLY dry type, gasoline or diesel models, Inc: Ref. 14 - 19

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING air cleaner

1шт.

15

F84999

CLAMP,168.28mm

ASSEMBLY cup retaining, includes hardware

1шт.

Ref #15 - The hardware referred to is L30338 Screw and 25-225 Nut

1шт.

16

A42274

AIR FILTER

ELEMENT filter

1шт.

17

D78354

WING NUT

WING NUT AND WASHER element

1шт.

Ref #17A - D37976 Gasket for Ref #17

1шт.

18

F22312

BAFFLE

air cleaner, rubber

1шт.

19

F91760

CUP

DUST CUP air cleaner

1шт.
