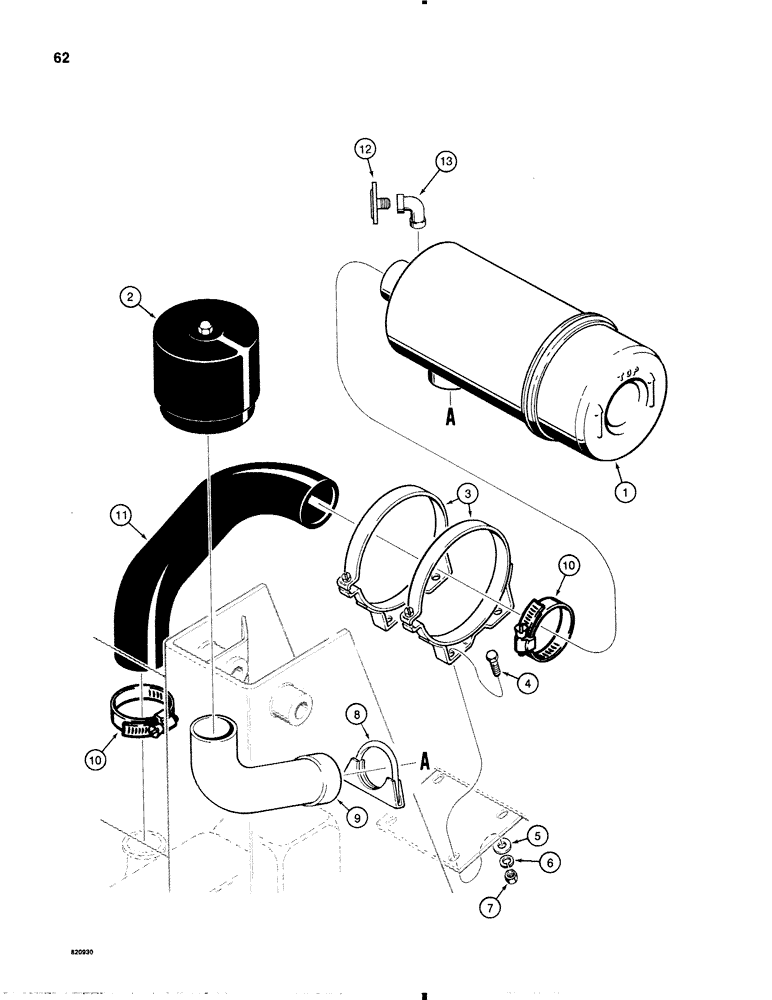

Запчасти Case 1845B (062) - AIR CLEANER AND PRECLEANER MOUNTING PARTS, DIESEL MODELS (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY dry type, parts list Figure 64

1шт.

2

REF

INSTRUCTION

PRECLEANER ASSEMBLY includes mounting clamp, parts list Figure 64

1шт.

3

L113910

CLAMP

BAND ASSEMBLY air cleaner, includes hardware

2шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

5

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

8

A13240

CLAMP,2-5/8" ID

tube

1шт.

9

D83888

AIR INTAKE TUBE,2.5" OD x 4.22, 7.6" L

TUBE precleaner, air intake

1шт.

10

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP worm screw type

2шт.

11

D64640

INTAKE AIR HOSE,57.20 mm ID x 294.60 mm, SAE 20R4 CLASS R

Air Cleaner 57.20 mm ID x 294.60 mm, SAE 20R4 CLASS R

1шт.

12

L103131

INDICATOR

air restriction

1шт.

13

221-1374

ELBOW,90 Degree, 1/8" NPT

90 degree, 1/8" NPT, plated, replaces 45 degree elbow on some models

1шт.
