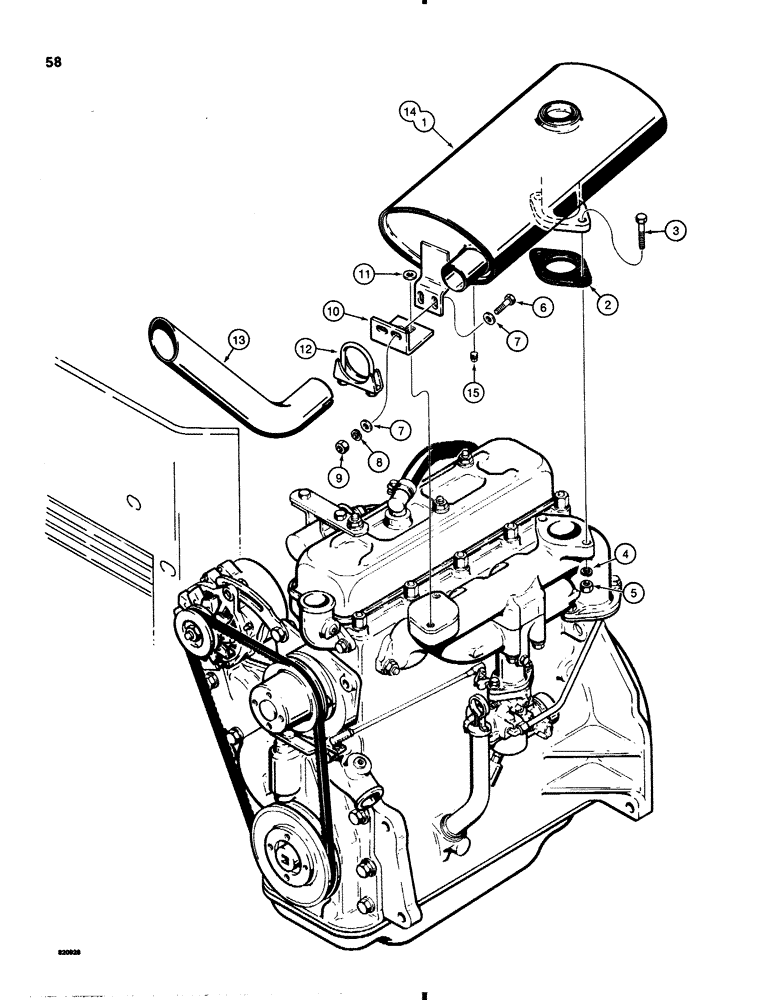

Запчасти Case 1845B (058) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

D64008

MUFFLER

exhaust, standard

1шт.

2

G46853

MANIFOLD GASKET

muffler

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

195-103

WASHER,5/16"

flat, , plated 5/16"

4шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

2шт.

10

D88435

BRACKET

mounting, uses exhaust manifold hardware

1шт.

11

195-525

WASHER,3/8", SAE

flat, 3/8", plated

2шт.

12

L73301

CLAMP,51mm ID

ASSEMBLY includes hardware

1шт.

13

D71866

PIPE

exhaust

1шт.

14

D69336

MUFFLER

exhaust, spark arrester, Inc: Ref. 15

1шт.

15

217-76

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF, Brass

PLUG hex head, 1/4" NPT, brass

1шт.
