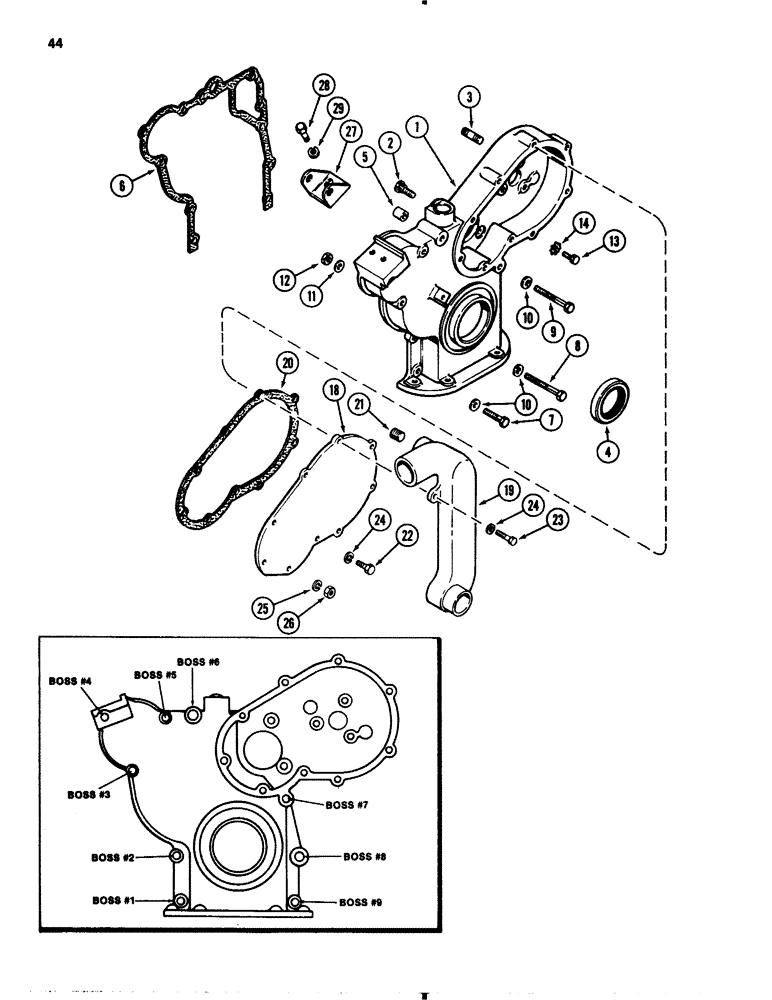

Запчасти Case 1845B (044) - TIMING GEAR COVER, 188 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A51981
COVER
ASSEMBLY timing gear, Inc: Ref. 2 - 4
1шт.
2
A51649
STUD
timing gear cover
2шт.
3
G102128
BOLT
injection pump, 3/8 NC x 1-7/16 inch
3шт.
4
A39110
OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk
oil, crankshaft, front, 2 x 3 x 1/2 inch, 51 x 76 x 13 mm
1шт.
5
A29442
RING
DOWEL cover locating, 9/16 x 3/8 x 5/8 inch, 14 x 10 x 16 mm
2шт.
6
A51529
GASKET
, Serial Range: cover-block
1шт.
7
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
Boss No. 1, 2, 9 Hex, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
7
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8 NC x 1-1/2 inch, Boss No. 8
1шт.
8
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
hex, 3/8 NC x 2-3/4 inch, Boss No. 7
1шт.
9
13-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
hex, 3/8 NC x 3 inch, Boss No. 6
1шт.
9
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
hex, 3/8 NC x 3-1/2 inch, Boss No. 3, 4, 5
3шт.
10
A50820
WASHER
3/8 x 3/4 x 1/8 inch, 10 x 19 x 3 mm
9шт.
10
95-6
WASHER,3/8"
7/16 x 1 x 1/16 inch, 11 x 25 x 2 mm
1шт.
11
92-6
LOCK WASHER,3/8"
3шт.
12
25-106
NUT,3/8"-16, G5
hex, 3/8 inch NC
3шт.
13
13-614
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
Cover (inside) Hex, 3/8"-16 x 7/8", G5, Full Thd
2шт.
14
193-10
LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 3/8"
2шт.
18
A51908
COVER
COVER injection pump gears
1шт.
19
A51907
TUBE
water passage
1шт.
20
A39925
GASKET
drive gear cover
1шт.
21
221-843
PLUG,Hex Soc, 3/8"-18
tube, socket head, 3/8 inch PT
1шт.
22
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
5шт.
23
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
hex, 3/8 NC x 1-1/2 inch
2шт.
24
A50820
WASHER
3/8 x 3/4 x 1/8 inch, 10 x 19 x 3 mm
7шт.
25
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
26
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
27
A160391
BRACKET
alternator mounting
1шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
Выбрано товаров: 29
