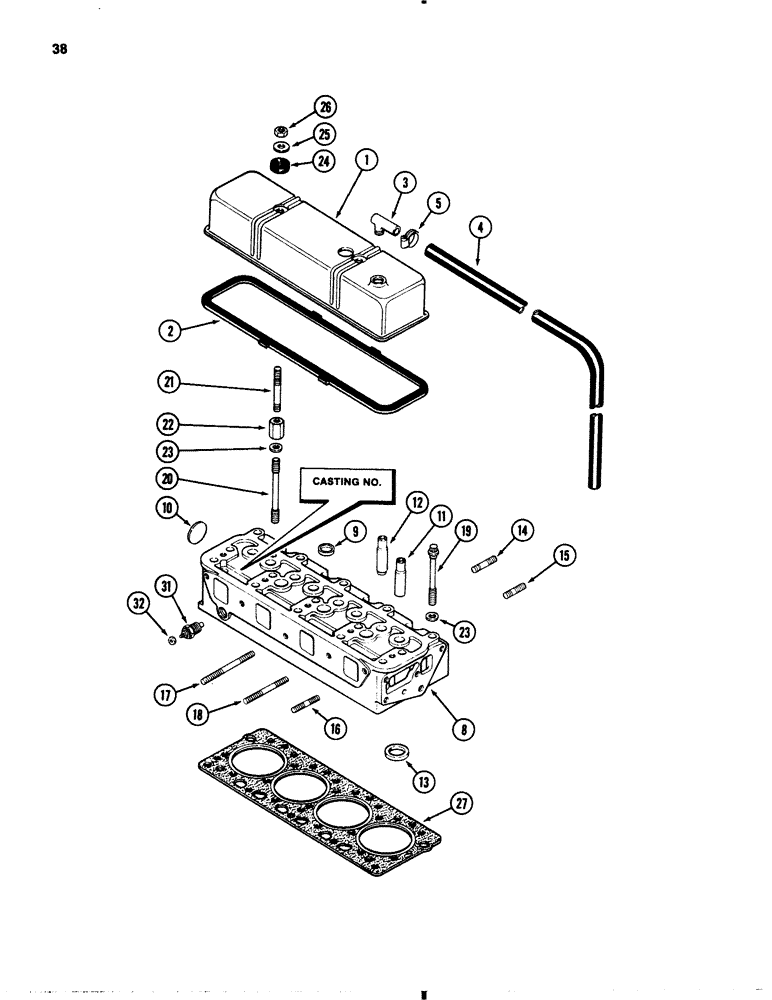

Запчасти Case 1845B (038) - CYLINDER HEAD AND COVER, 188 DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
cylinder head
1шт.
2
REF
INSTRUCTION
GASKET cover to cylinder head See Ref. 52
1шт.
3
A9155
90 ELBOW
breather
1шт.
4
A39570
HOSE
breather hose
1шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP, 9/16 inch to 1-1/16 inch (14 to 27 mm)
1шт.
8
A166029
HEAD (CYLINDER)
HEAD ASSEMBLY cylinder, with drilled push rod holes, Casting No. A155925
1шт.
8
A153261
CYLINDER BLOCK
HEAD ASSEMBLY cylinder, with cast push rod holes, Inc: Ref. 9 - 18, Casting No. A150384
1шт.
9
41-1016
PLUG,Cup, 1"
top, 1 cup type 25 mm
3шт.
10
41-1028
PLUG,Cup, 1 3/4"
rear, 1-3/4 inch cup type 44 mm
1шт.
11
G2069
GUIDE
exhaust valve
4шт.
12
G2068
GUIDE
intake valve
4шт.
13
G47078
INSERT exhaust valve seat
4шт.
14
A140924
STUD
exhaust manifold, clamps, 3/8 NC x 2-1/16 inch
3шт.
15
A29431
STUD
exhaust manifold, ends, 3/8 NC x 1-3/4 inch
2шт.
16
A140924
STUD
intake manifold, ends, 3/8 NC x 2-7/16 inch
2шт.
17
A153248
STUD
intake manifold, intermediate, 3/8 NC x 4-5/16 inch
2шт.
18
A51500
STUD
intake manifold, center, 3/8 NC x 5-5/16 inch
1шт.
19
A39047
12 PT SCREW
BOLT 12 point head, 1/2 NC x 3-1/2 inch
4шт.
19
A39048
12 PT SCREW
BOLT 12 point head, 1/2 NC x 5-1/8 inch
11шт.
19
A39049
12 PT SCREW
BOLT 12 point head, 1/2 NC x 5-5/8 inch
2шт.
20
A36902
STUD
cylinder head, lower, 1/2 NC x 5-5/8 inch
2шт.
21
A51271
STUD
cylinder head cover, 3/8 NC x 3-3/4 inch
2шт.
22
A51114
NUT
1/2 NC and 3/8 inch NC
2шт.
23
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
1/2 x 7/8 x 1/8 inch, 13 x 22 x 3 mm
19шт.
24
A142098
GROMMET
cover
2шт.
25
195-137
WASHER,13/32" x 1 1/8" x .180"
3/8 x 1-1/8 x 1/8 inch, 10 x 29 x 3 mm
2шт.
26
25-106
NUT,3/8"-16, G5
hex, 3/8 inch NC
2шт.
27
REF
INSTRUCTION
GASKET cylinder head See Figure 52
1шт.
31
A154283
SWITCH
SENDING UNIT engine temperature
1шт.
32
193-1000
NUT,Keps, w/LW,#10-32
hex, No. 10 NF
1шт.
Выбрано товаров: 30
