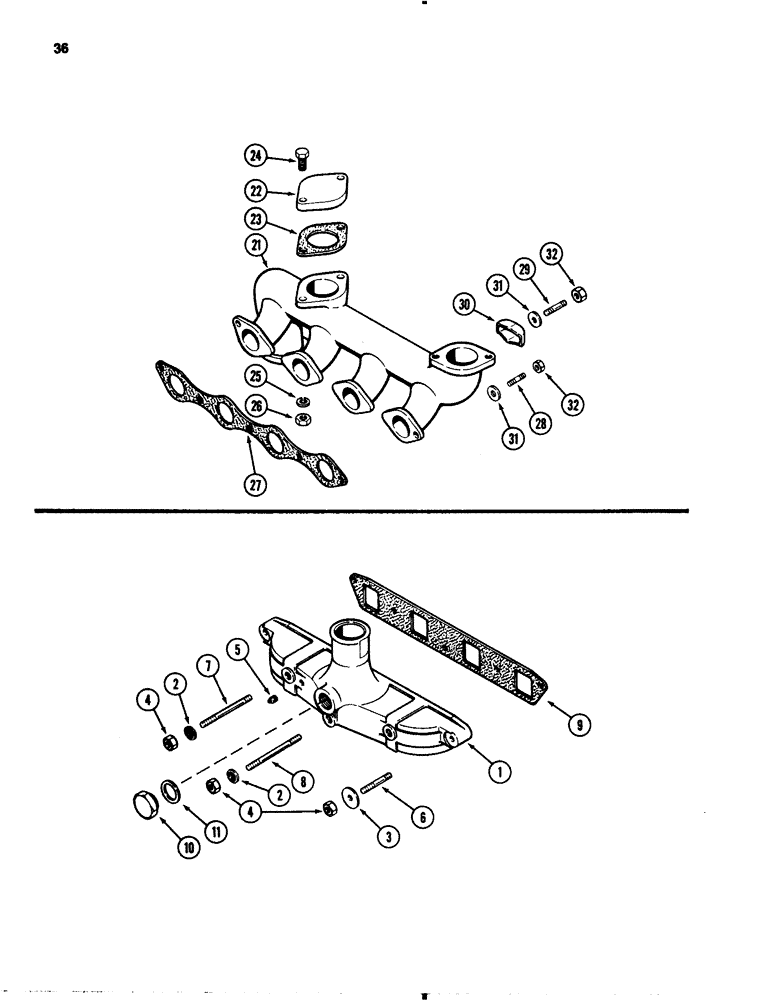

Запчасти Case 1845B (036) - INTAKE & EXHAUST MANIFOLDS, 188 DIESEL ENGINE (02) - ENGINE

1

A152536

MANIFOLD

ASSEMBLY, intake, Inc: Ref. 2 - 5

1шт.

2

A50694

DISC

WASHER sealing, with rubber insert, For intermediate and center stud holes

3шт.

3

195-525

WASHER,3/8", SAE

end stud holes, 3/8 x 13/16 x 1/16 inch, 10 x 21 x 2

2шт.

4

25-166

NUT,3/8"-16, G5, Hvy

hex, 3/8 inch NC

5шт.

5

221-849

PLUG,Hex Soc, 1/8"-27

square head, 1/8 inch PT

1шт.

6

A140924

STUD

manifold end holes, 3/8 NC x 2-7/16 inch

2шт.

7

A153248

STUD

manifold intermediate holes, 3/8 NC x 4-13/16 inch

2шт.

8

A51500

STUD

manifold center hole, 3/8 NC x 5-5/16 inch

1шт.

9

G46871

GASKET

, Serial Range: manifold-head

1шт.

10

A20917

PLUG

manifold Heater hole

1шт.

11

A20916

MANIFOLD GASKET

GASKET plug

1шт.

21

A39233

MANIFOLD

ASSEMBLY, exhaust, Inc: Ref. 22 - 26

1шт.

22

A38188

PLATE

cover

2шт.

23

G46853

MANIFOLD GASKET

cover plate

2шт.

24

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

25

195-525

WASHER,3/8", SAE

lock, 3/8 inch

4шт.

26

131-903

NUT,3/8"-16

NUT Seez-pruf, 3/8 inch NC

4шт.

27

G46872

MANIFOLD GASKET

1шт.

28

A29431

STUD

manifold ends, 3/8 NC x 1-3/4 inch

2шт.

29

A140924

STUD

manifold clamps, 3/8 NC x 2-5/8 inch

3шт.

30

A35028

CLAMP

manifold

3шт.

31

195-525

WASHER,3/8", SAE

3/8 x 13/16 x 1/16 inch, 10 x 21 x 2 mm

5шт.

32

131-903

NUT,3/8"-16

NUT Seez-pruf, 3/8 inch NC

5шт.
