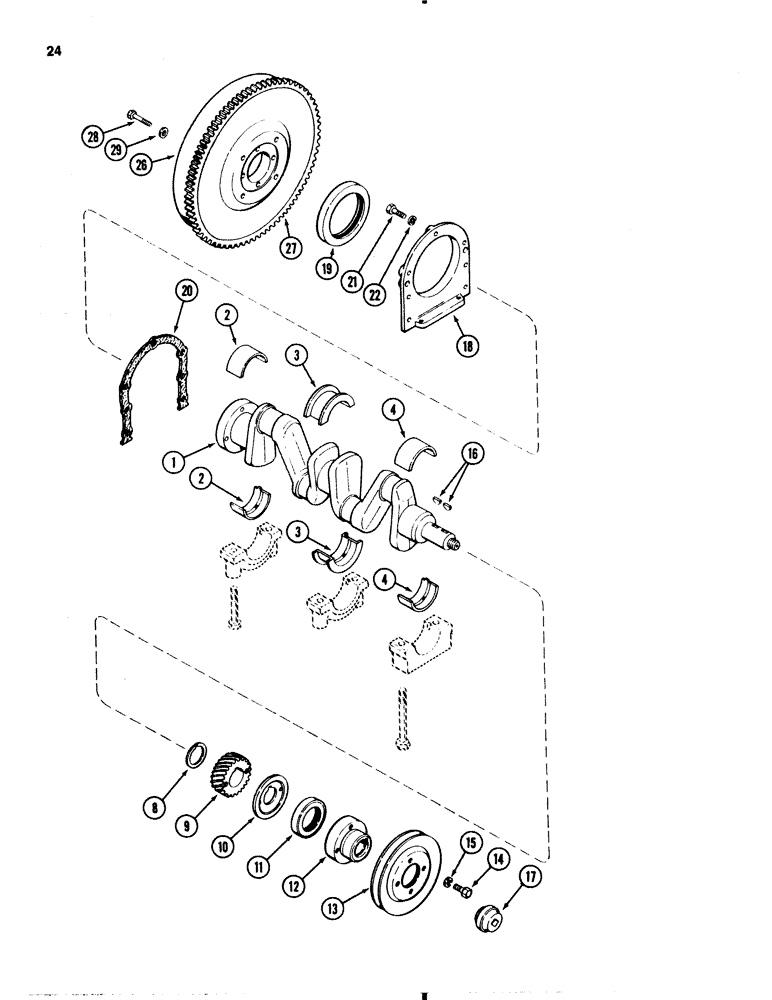

Запчасти Case 1845B (024) - CRANKSHAFT AND FLYWHEEL, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

A37210

CRANKSHAFT

engine

1шт.

2

G37051

KIT

INSERT main bearing, rear Set of 2 Standard

1шт.

2

G37052

KIT

INSERT main bearing, rear Set of 2, 0.002 inch undersize 0.0508 mm

1шт.

2

A42322

FIP KIT

INSERT main bearing, rear Set of 2, 0.010 inch undersize 0.254 mm

1шт.

2

G37053

KIT

INSERT main bearing, rear Set of 2, 0.020 inch undersize 0.508 mm

1шт.

2

G37054

KIT

INSERT main bearing, rear Set of 2, 0.040 inch undersize 1.016 mm

1шт.

3

G37047

KIT

INSERT main bearing, center Set of 2, Standard

1шт.

3

G37048

KIT

INSERT main bearing, center Set of 2, 0.002 inch undersize 0.0508 mm

1шт.

3

A42321

FIP KIT

INSERT main bearing, center Set of 2, 0.010 inch undersize 0.254 mm

1шт.

3

G37049

KIT

INSERT main bearing, center Set of 2, 0.020 inch undersize 0.508 mm

1шт.

3

G37050

KIT

INSERT main bearing, center Set of 2, 0.040 inch undersize 1.016 mm

1шт.

4

G37043

KIT

INSERT main bearing, front Set of 2, Standard

1шт.

4

G37044

KIT

INSERT main bearing, front Set of 2, 0.002 inch undersize 0.0508 mm

1шт.

4

A42320

BEARING LINER

INSERT main bearing, front Set of 2, 0.010 inch undersize 0.254 mm

1шт.

4

G37045

KIT

INSERT main bearing, front Set of 2, 0.020 inch undersize 0.508 mm

1шт.

4

G37046

KIT

INSERT main bearing, front Set of 2, 0.040 inch undersize 1.016 mm

1шт.

8

A29293

SHIM,.010" Thk

Thrust (0.254 mm) .010" Thk

1шт.

9

A39288

GEAR

crankshaft

1шт.

10

A29259

SLINGER

oil

1шт.

11

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

oil, front, 2 x 3 x 1/2 inch 51 x 76 x 13 mm

1шт.

12

A156746

HUB

pulley

1шт.

13

A166049

PULLEY

fan drive

1шт.

14

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

A39132

KEY

pulley and gear

2шт.

17

A166176

NUT

pulley retaining

1шт.

18

A38390

RETAINER

rear oil seal

1шт.

19

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

oil, rear, 4 x 5 x 1/2 inch, 102 x 127 x 13 mm

1шт.

20

A39188

GASKET

rear seal retainer

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

hex, 1/4 NC x 3/4 inch

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

hex, 1/4 NC x 1 inch

3шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

7шт.

26

A135781

FLYWHEEL

ASSEMBLY, Inc: Ref. 27

1шт.

27

G11710

GEAR

ring, starter

1шт.

27

G11710

GEAR

ring, starter

1шт.

28

A37216

BOLT

hex, 7/16 NF x 2 inch

4шт.

29

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

7/16 x 3/4 x 1/16 inch, 11 x 19 x 2 mm

4шт.
