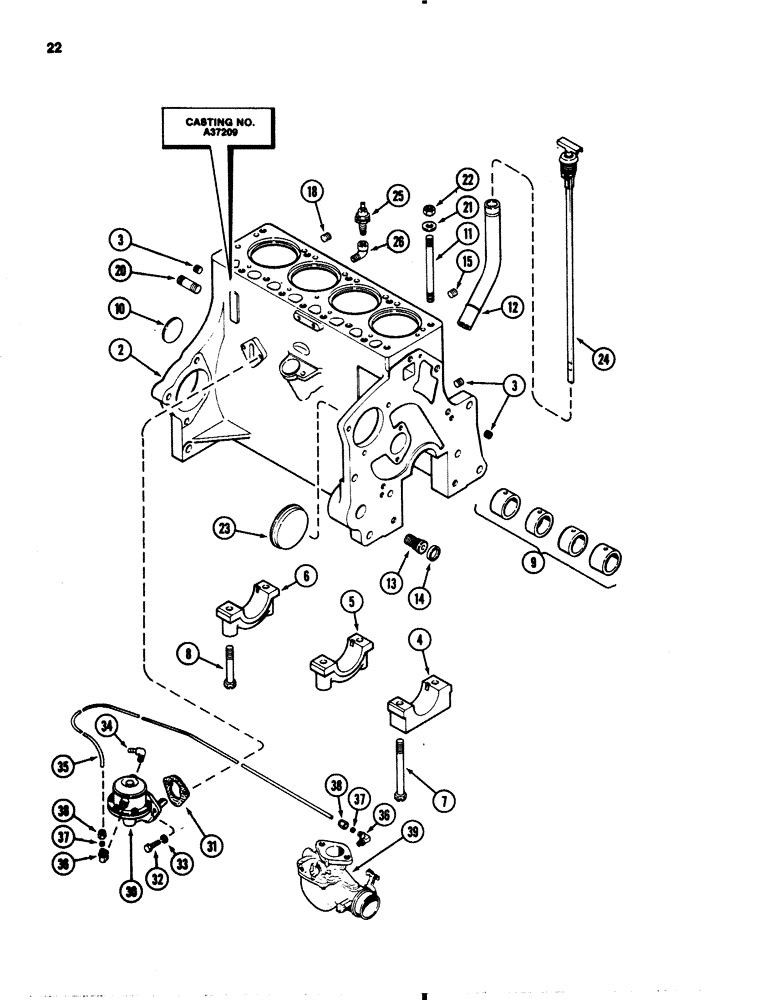

A41599
SKELETON ENGINE
BLOCK ASSEMBLY short incudes stripped block, crankshaft block, crankshaft bearings, connecting crankshaft and bearings, pistion assembly, camshaft and bushings, oil pump and timing gears
1шт.
2
A46347
SKELETON ENGINE
BLOCK ASSEMBLY stripped Casting No. A37209, Inc: Ref. 3 - 14
1шт.
3
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
Oil gallery Hex Soc, 1/4"-18 NPTF
3шт.
4
G2035
CAP
main bearing, front
1шт.
5
G2036
CAP
main bearing, center
1шт.
6
G2037
CAP
main bearing, rear
1шт.
7
G49059
BOLT
bearing cap, front, hex, 1/2 NC x 4-3/4 inch
2шт.
8
G49037
BOLT
bearing cap, rear and center, hex, 1/2 NC x 3 inch
4шт.
9
REF
INSTRUCTION
BUSHING camshaft See Fig. 20
1шт.
10
A39241
PLUG,Exp, 2.12" dia
camshaft hole
1шт.
11
A30057
STUD
cylinder head, 1/2 NF x 2 inch
9шт.
11
A29436
STUD
cylinder head, 1/2 NF x 5-7/8 inch
5шт.
12
A39281
TUBE
oil filler and dipstick
1шт.
13
A153552
ADAPTER
oil filter
1шт.
14
41-1016
PLUG,Cup, 1"
adapter, 1 cup type 25 mm
1шт.
15
221-850
PLUG,Hex Soc, 1/16"-27
countersunk head, 1/16 inch NPT
1шт.
18
221-841
PLUG
drain, hex head, 1/4 inch PT
1шт.
20
A51412
STUD
5/8 NF x 1-3/4 inch
1шт.
21
G49404
WASHER
cylinder head studs
14шт.
22
A30021
NUT
hex, 1/2 inch NF
14шт.
23
41-1052
PLUG,Cup, 3 1/4"
COVER timing gear hole, 3-1/4 inch cup type 83 mm
1шт.
24
A136379
DIPSTICK
ASSEMBLY engine oil level
1шт.
25
A162297
SWITCH
SENDING UNIT oil pressure
1шт.
26
221-401
ELBOW,45 Degree, 1/8"-27, NPT
sending unit, 45 degree, street, 1/8 inch PT
1шт.
30
G45778
PUMP
ASSEMBLY fuel pump
1шт.
31
A65561
GASKET
fuel, Serial Range: pump-block
1шт.
32
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
33
92-5
LOCK WASHER,5/16"
2шт.
34
217-291
FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF
ELBOW fuel pump inlet
1шт.
35
A141054
TUBE
LINE fuel, Serial Range: pump-carburetor
1шт.
36
222-619
ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp
ASSEMBLY fuel line
2шт.
37
222-653
SLEEVE,5/16" Tube, Comp
for 5/16 inch tube
1шт.
38
222-663
NUT,1/2"-24, 45 Degree Fl, Comp
NUT for 5/16 inch tube
1шт.
39
REF
INSTRUCTION
CARBURETOR ASSEMBLY, See Figure 30
1шт.
Per Roger K. there is no reman engine for the 1845B
1шт.
