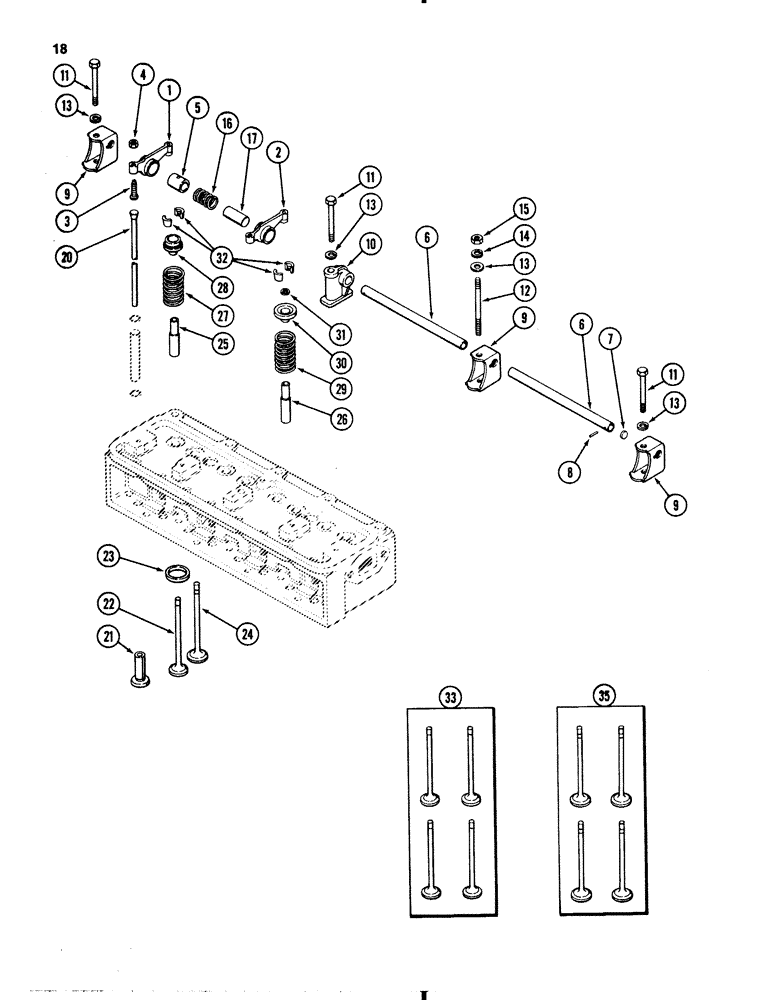

Запчасти Case 1845B (018) - VALVE MECHANISM, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

G45234

ARM

ASSEMBLY rocker, right Includes: Refs. 3, 4 and 5

4шт.

2

G45235

ARM

ASSEMBLY rocker, left

4шт.

3

A31056

ADJUSTMENT SCREW,5/16" - 24 x 1 11/32"

SCREW adjusting

1шт.

Includes Arm Assy., P/N G45234

1шт.

4

25-155

JAM NUT,Jam, 5/16"-24, G5

lock, hex jam, 5/16 inch NF

1шт.

Includes Arm Assy., P/N G45234

1шт.

5

A31055

BUSHING

rocker arm

1шт.

Includes Arm Assy., P/N G45234

1шт.

6

A37197

SHAFT

ASSEMBLY rocker arm

2шт.

7

A26796

PLUG

shaft

2шт.

8

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Cup 1/8" x 3/4", Slotted

2шт.

9

G46250

BRACKET

rocker arm shaft

4шт.

10

G2107

BRACKET

rocker arm shaft, center

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

hex, 3/8 NC x 2-3/4 inch

3шт.

12

G49505

STUD

3/8 NC x 4-5/8 inch

2шт.

13

D41740

WASHER

3/8 x 1 x 1/8 inch 10 x 25 x 3 mm

5шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

25-106

NUT,3/8"-16, G5

hex, 3/8 inch NC

2шт.

16

A30007

SPRING

rocker arm shaft

4шт.

17

A30008

SPACER

rocker arm shaft

2шт.

20

G11086

ROD

push

8шт.

21

A30006

TAPPET

LIFTER push rod

8шт.

22

NSS

NOT SOLD SEPARAT

VALVE exhaust Order: Ref 33

4шт.

23

G2106

INSERT

exhaust valve seat

4шт.

24

NSS

NOT SOLD SEPARAT

VALVE intake Order: Ref 35

4шт.

25

A29954

GUIDE

exhaust valve, 2-11/16 inch long, 68 mm

4шт.

26

A29955

GUIDE

intake valve, 2-7/16 inch long, 62 mm

4шт.

27

G10004

SPRING

exhaust valve, 2-3/16 inch free length 56 mm

4шт.

28

G10072

CAP

NUT No. 10 NF Keps

4шт.

29

A30025

SPRING

intake valve, 2-3/8 inch free length 60 mm

4шт.

30

G11717

RETAINER

intake valve

4шт.

31

G46851

SEAL

intake valve stem

4шт.

32

A30004

RETAINER

LOCK valve spring keepers

16шт.

33

G11962

VALVE, ENG EXHAUST,

VALVE KIT exhaust Set of 4

1шт.

35

G11961

VALVE

KIT intake Set of 4

1шт.
