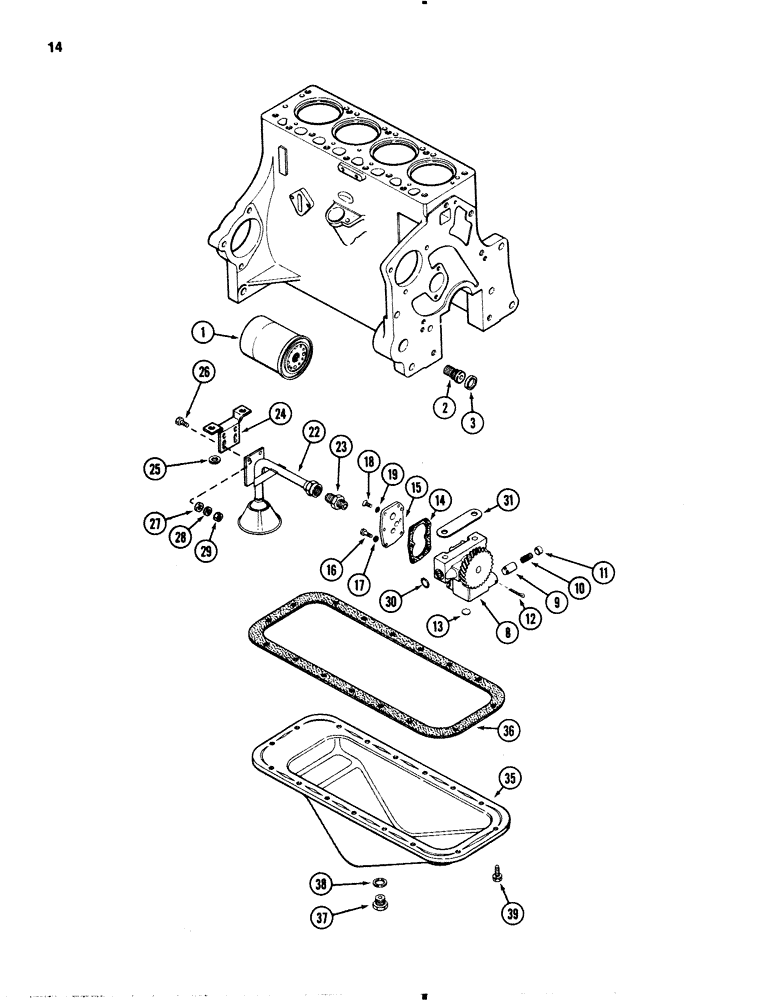

Запчасти Case 1845B (014) - OIL FILTER, OIL PUMP & OIL PAN, 159 SPARK IGNITION ENGINE (02) - ENGINE

1

A146696

ENGINE OIL FILTER

FILTER engine oil

1шт.

2

A153552

ADAPTER

filter

1шт.

3

41-1016

PLUG,Cup, 1"

cup type, 1 inch 25 mm

1шт.

8

A38369

PUMP

ASSEMBLY oil, Inc: Ref. 9 - 19

1шт.

9

A155144

VALVE, PRESSURE RELI

VALVE relief

1шт.

10

G48513

VALVE SPRING

SPRING relief

1шт.

11

A29260

RETAINER

spring

1шт.

12

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

13

A39321

PLUG,Cup, 7/16"

cup, 1/2 inch 13 mm diameter

2шт.

14

G46852

GASKET

cover

1шт.

15

NSS

NOT SOLD SEPARAT

COVER pump

1шт.

16

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

16

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

17

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

18

73-410

SCREW,Slotted Flat Hd, 1/4"-20 x 5/8"

flat head, 1/4 NC x 5/8 inch

2шт.

19

193-52

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER, LOCK, Ext Csk Tooth, 1/4"

2шт.

22

A156794

FILTER SCREEN

SCREEN ASSEMBLY suction

1шт.

23

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR 5/8 tube x 3/8 inch PT

1шт.

24

A156845

BRACKET

screen support

1шт.

25

G35009

WASHER

hardened, 17/32 x 1-1/16 x 7/64 inch 13 x 27 x 3 mm

2шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

27

95-4

WASHER,1/4"

5/16 x 3/4 x 1/16 inch 8 x 19 x 2 mm

2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

25-104

NUT,1/4"-20, G5

2шт.

30

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

pump body

1шт.

31

G11337

SHIM,.002" Thk

Pump to bearing cap (0.0508 mm) .002" Thk

1шт.

31

G11338

SHIM,.005" Thk

Pump to bearing cap (0.1270 mm) .005" Thk

1шт.

35

A36785

ENGINE OIL PAN

PAN oil

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET pan to block See Figure 29

1шт.

37

A140222

PLUG

drain

1шт.

38

A58608

GASKET

drain plug

1шт.

39

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - hex (Sems), 5/16 NC x 3/4 inch

16шт.
