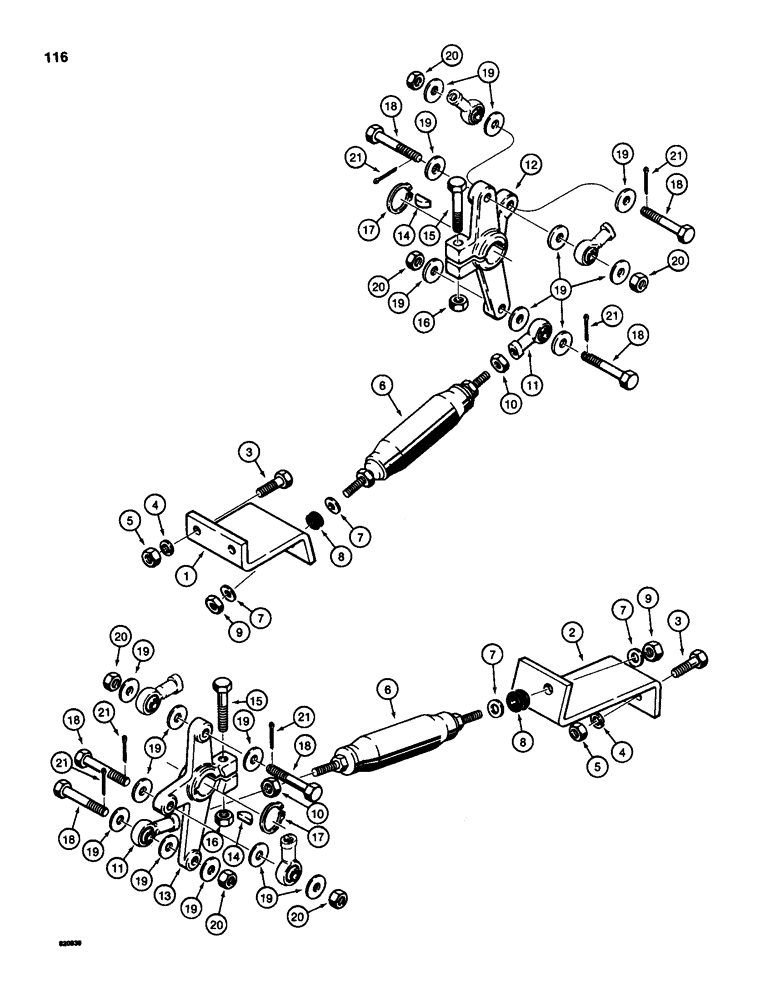

Запчасти Case 1845B (116) - TANDEM PUMP CONTROLS (11) - TRACKS/STEERING

1

D92637

BRACKET

shock absorber, left-hand

1шт.

2

D92638

BRACKET shock absorber, right-hand

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

6

D66538

SHOCK ABSORBER

pump controls

2шт.

7

195-525

WASHER,3/8", SAE

flat, 3/8", plated

4шт.

8

49566

GROMMET

rubber

2шт.

9

131-528

LOCK NUT,3/8"-24

NUT hex, self-locking, 3/8" - 24 NF

2шт.

10

129-123

NUT,3/8"-24, G5

2шт.

11

S108030

JOINT

BALL JOINT female, 3/8" - 24 NF

2шт.

12

D122748

LEVER

pump, left-hand

1шт.

13

D122747

LEVER

pump, right-hand

1шт.

14

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

2шт.

15

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

16

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8" - 16 NC, plated

2шт.

17

A34428

SNAP RING,#98, Ext

Ring, Snap, , pump levers #98, Ext

2шт.

18

D77933

BOLT

hex head, special

6шт.

19

D41740

WASHER

flat, 3/8", hardened

18шт.

20

131-52

NUT,3/8"-16, GC

NUT hex, self-locking, 3/8" - 16 NC, plated

6шт.

21

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

6шт.
