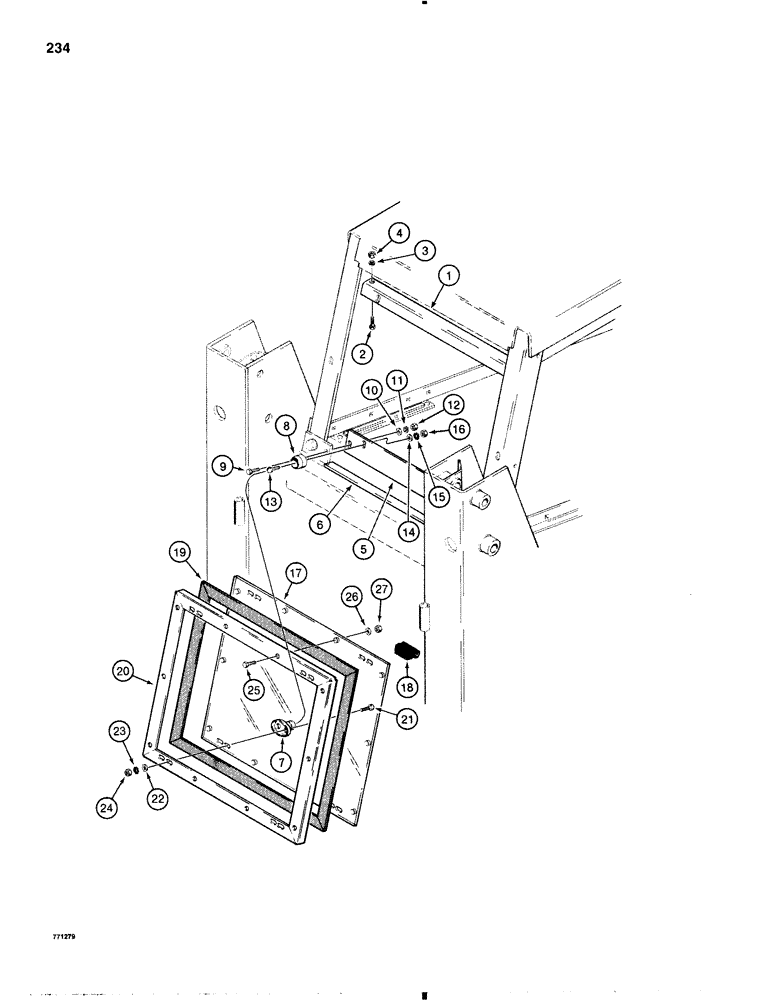

Запчасти Case 1845B (234) - ROPS ENCLOSURE, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

D72868

SPARE PART BRACKET rear window, upper

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

4

9635082

NUT,5/16" - 18, Gr 5

2шт.

5

D72869

BAR

BRACKET rear window, lower

1шт.

6

D54740

SEALING STRIP

Inc: Ref. 7 - 8

1шт.

F93104

HOLDER

Rear window

4шт.

7

NSS

NOT SOLD SEPARAT

HOLDER male

1шт.

8

NSS

NOT SOLD SEPARAT

HOLDER female

1шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

10

195-521

WASHER,5/16", SAE

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

2шт.

13

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

4шт.

14

195-518

WASHER,1/4", SAE

4шт.

15

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.

16

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

17

D72930

SPARE PART Rear

1шт.

18

D73552

SEAL, GLASS

Weather strip

1шт.

19

REF

INSTRUCTION

SEAL window mount, cut to length from D73553, see below:

1шт.

20

D72927

FRAME ASSY

SPARE PART Rear window

1шт.

21

171-244

SCREW,Sl Flat Hd, #10 - 24 x 1"

8шт.

22

195-513

WASHER,#10

8шт.

23

193-70

LOCK WASHER,Ext-Int Tooth, #10

8шт.

24

129-17

NUT,Hex, #10 - 24

8шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

10шт.

26

195-521

WASHER,5/16", SAE

10шт.

27

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

10шт.

D73553

SEALING STRIP

SEAL 60 ft., 18.3 metre bulk roll

1шт.
